Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

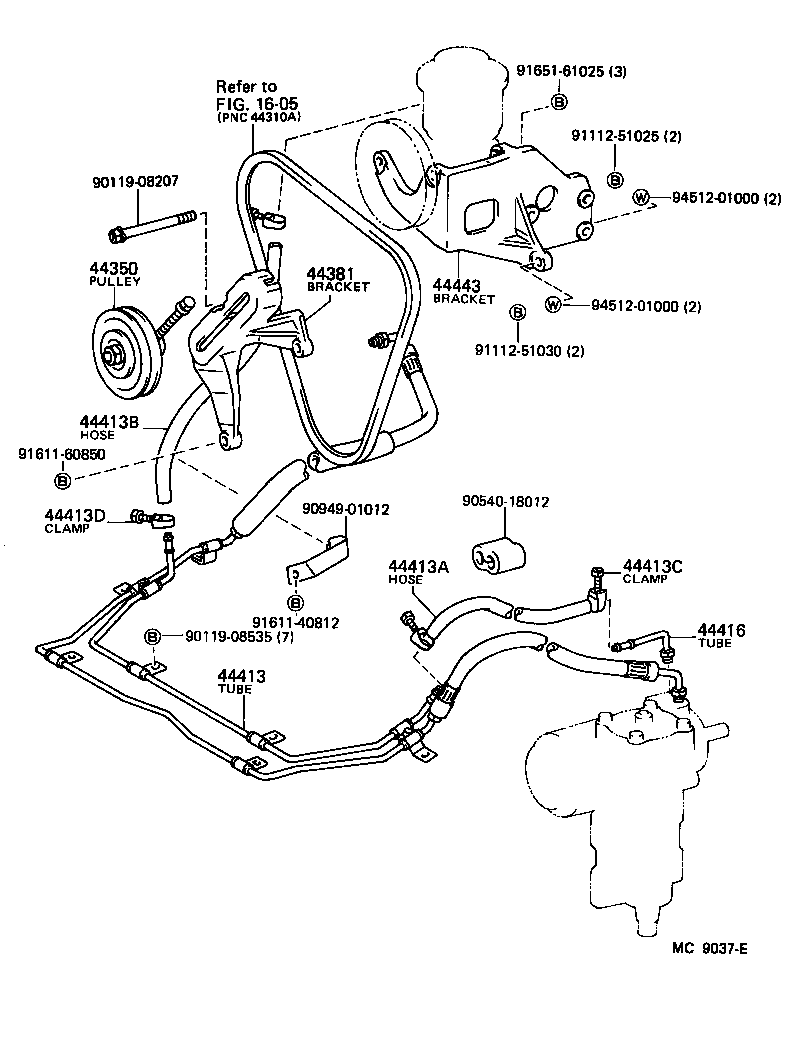

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44350 — Pulley Assy, Power Steering Idle | ||||
| 16630-47020 |
Pulley Assy, Power Steering Idle
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 44350-60010 |
Pulley Assy, Power Steering Idle
1982-10 → 1985-10
ended
|
BJ60 | — | |
| 44381 — Bracket, Power Steering Idle Pulley | ||||
| 44381-60020 |
Bracket, Power Steering Idle Pulley
1982-10 → 1985-10
ended
|
BJ60 | — | |
| 44413 — Tube, Pressure Feed, NO.1 | ||||
| 44410-60040 |
Tube, Pressure Feed, NO.1
1980-08 → 1980-12
ended
|
FJ60 CND | — | |
| 44410-60041 |
Tube, Pressure Feed, NO.1
1980-12 → 1981-10
ended
|
FJ60 CND | — | |
| 44410-60070 |
Tube, Pressure Feed, NO.1
1982-10 → 1984-11
ended
|
BJ60 | — | |
| 44410-60130 |
Tube, Pressure Feed, NO.1
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 44410-60160 |
Tube, Pressure Feed, NO.1
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 44413A — Hose(FOR RETURN TUBE OUTLET) | ||||
| 90445-18089 |
Hose(FOR RETURN TUBE OUTLET)
1980-08 → 1981-10
ended
|
FJ60 CND | — | |
| 90445-18089 |
Hose(FOR RETURN TUBE OUTLET)
1982-10 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44413B — Hose(FOR RESERVOIR TANK INLET) | ||||
| 90445-18089 |
Hose(FOR RESERVOIR TANK INLET)
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 90445-18090 |
Hose(FOR RESERVOIR TANK INLET)
1980-08 → 1981-10
ended
|
FJ60 CND | — | |
| 90445-18090 |
Hose(FOR RESERVOIR TANK INLET)
1982-10 → 1985-10
ended
|
BJ60 | — | |
| 44413C — Clamp(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
Clamp(FOR RETURN TUBE OUTLET HOSE)
1980-08 → 1981-10
ended
|
FJ60 CND | — | |
| 90460-01001 |
Clamp(FOR RETURN TUBE OUTLET HOSE)
1982-10 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44413D — Clamp(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
Clamp(FOR RESERVOIR TANK INLET HOSE)
1980-08 → 1981-10
ended
|
FJ60 CND | — | |
| 90460-01001 |
Clamp(FOR RESERVOIR TANK INLET HOSE)
1982-10 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44416 — Tube, Return(FOR STEERING GEAR OUTLET) | ||||
| 44416-60060 |
Tube, Return(FOR STEERING GEAR OUTLET)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44416-60060 |
Tube, Return(FOR STEERING GEAR OUTLET)
1982-10 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 44416-60061 |
Tube, Return(FOR STEERING GEAR OUTLET)
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 44416-60061 |
Tube, Return(FOR STEERING GEAR OUTLET)
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 44443 — Bracket, Pump | ||||
| 44443-60010 |
Bracket, Pump
1980-08 → 1981-10
ended
|
FJ60 CND | — | |
| 44443-60020 |
Bracket, Pump
1980-08 → 1987-08
ended
|
FJ60 WGG | — | |
| 44443-60040 |
Bracket, Pump
1982-10 → 1984-11
ended
|
BJ60 | — | |
| 44443-60060 |
Bracket, Pump
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 44443-60071 |
Bracket, Pump
1985-10 → 1987-08
ended
|
HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
