Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

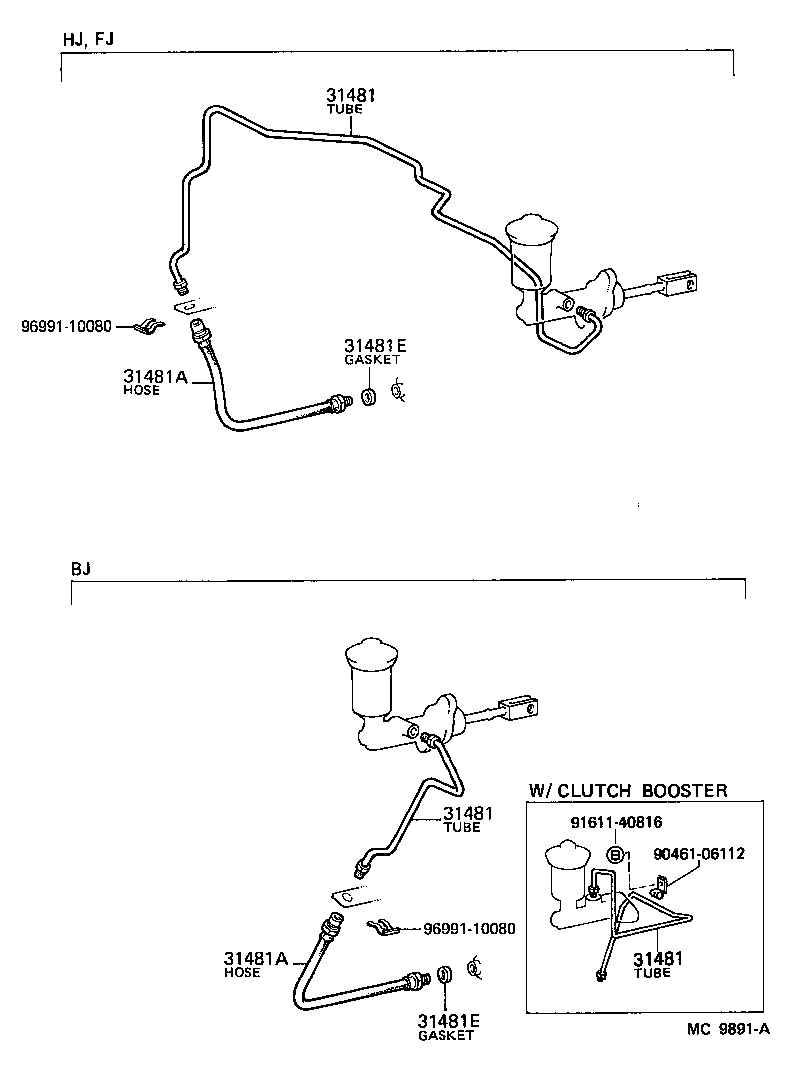

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31481 — Tube, Clutch Master Cylinder TO Flexible Hose | ||||
| 31481-60250 |
Tube, Clutch Master Cylinder TO Flexible Hose
1980-08 → 1985-04
ended
|
FJ60 | — | |
| 31481-60270 |
Tube, Clutch Master Cylinder TO Flexible Hose
1980-08 → 1983-01
ended
|
BJ60 | — | |
| 31481-60301 |
Tube, Clutch Master Cylinder TO Flexible Hose
1985-04 → 1987-08
ended
|
FJ60,HJ60 MTM | — | |
| 31481-60311 note |
Tube, Clutch Master Cylinder TO Flexible Hose
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 31481-60320 |
Tube, Clutch Master Cylinder TO Flexible Hose
1983-01 → 1984-11
ended
|
BJ60 | — | |
| 31481-60321 |
Tube, Clutch Master Cylinder TO Flexible Hose
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 31481-60330 note |
Tube, Clutch Master Cylinder TO Flexible Hose
1983-01 → 1984-11
ended
|
BJ60 | — | |
| 31481-60331 note |
Tube, Clutch Master Cylinder TO Flexible Hose
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 31481A — Hose, Clutch, NO.1 | ||||
| 90947-02267 |
Hose, Clutch, NO.1
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 90947-02358 |
Hose, Clutch, NO.1
1980-08 → 1985-04
ended
|
FJ60 | — | |
| 96812-50240 |
Hose, Clutch, NO.1
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 96812-50320 |
Hose, Clutch, NO.1
1985-04 → 1987-08
ended
|
FJ60,HJ60 MTM | — | |
| 31481E — Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) | ||||
| 90430-10074 |
Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90430-10074 |
Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
1984-11 → 1985-04
ended
|
FJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
