Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

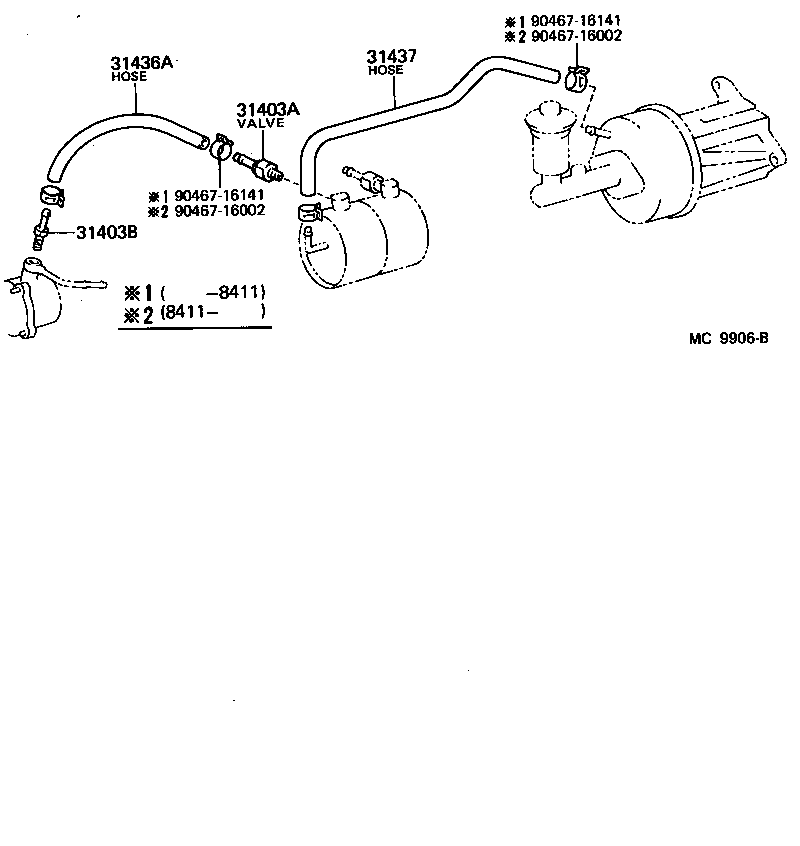

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31403A — Valve Assy, Vacuum Check(FOR CLUTCH VACUUM) | ||||
| 44730-60040 |
Valve Assy, Vacuum Check(FOR CLUTCH VACUUM)
1983-01 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31403B — Union(FOR VACUUM PUMP) | ||||
| 90404-09008 |
Union(FOR VACUUM PUMP)
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 31436A — Hose, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 90445-17034 |
Hose, NO.1(FOR CLUTCH BOOSTER VACUUM)
1983-01 → 1983-04
ended
|
BJ60 | — | |
| 95441-09240 |
Hose, NO.1(FOR CLUTCH BOOSTER VACUUM)
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 95441-09270 |
Hose, NO.1(FOR CLUTCH BOOSTER VACUUM)
1983-04 → 1985-10
ended
|
BJ60 | — | |
| 31437 — Hose, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31438-60010 |
Hose, NO.2(FOR CLUTCH BOOSTER VACUUM)
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 90445-17034 |
Hose, NO.2(FOR CLUTCH BOOSTER VACUUM)
1983-01 → 1983-04
ended
|
BJ60 | — | |
| 95441-09270 |
Hose, NO.2(FOR CLUTCH BOOSTER VACUUM)
1983-04 → 1985-10
ended
|
BJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
