Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

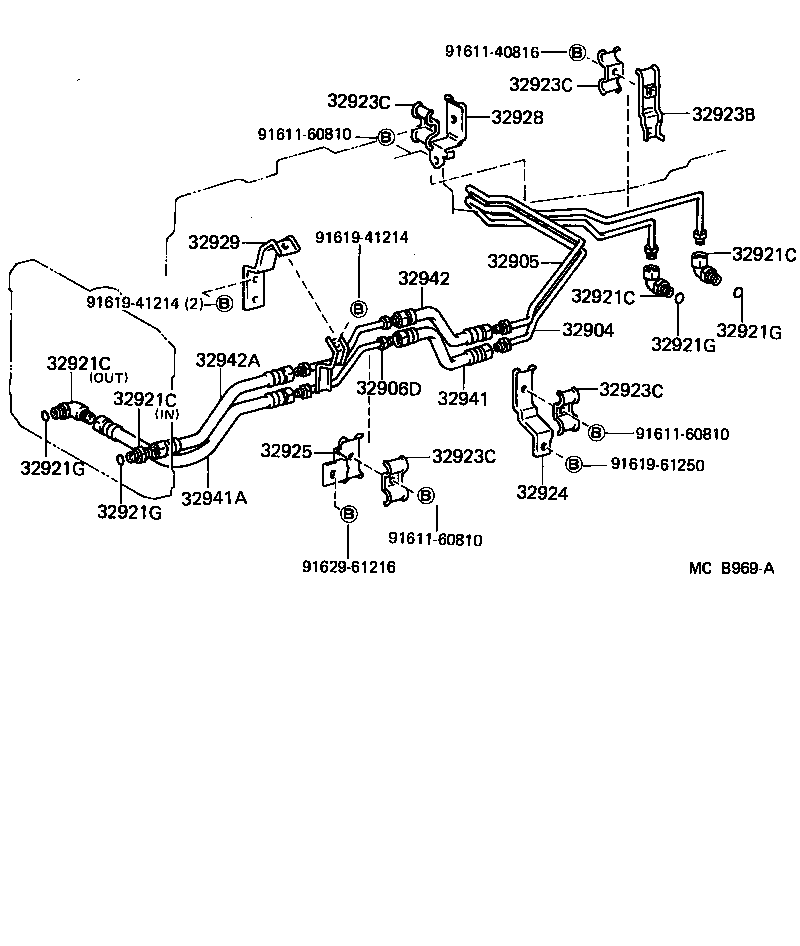

Exploded illustration MCB969A 9161140816 — not listed in this catalogue 32923C — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 (1 parts) 32923C — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 (1 parts) 32923B — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 (1 parts) 32928 — CLAMP, FLEXIBLE HOSE, NO.1 (1 parts) 9161160810 — not listed in this catalogue 9161941214 — not listed in this catalogue 32929 — CLAMP, FLEXIBLE HOSE, NO.2 (1 parts) 32921C — UNION(FOR OIL COOLER TUBE) (3 parts) 32905 — TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 (1 parts) 32942 — HOSE, OIL COOLER OUTLET, NO.1 (1 parts) 32921C — UNION(FOR OIL COOLER TUBE) (3 parts) 9161941214 — not listed in this catalogue 32904 — TUBE SUB-ASSY, OIL COOLER INLET, NO.1 (1 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (1 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (1 parts) 32942A — HOSE, OIL COOLER OUTLET, NO.2 (1 parts) 32921C — UNION(FOR OIL COOLER TUBE) (3 parts) 32906D — TUBE SUB-ASSY, OIL COOLER, NO.2 (1 parts) 32923C — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 (1 parts) 32921C — UNION(FOR OIL COOLER TUBE) (3 parts) 32941 — HOSE, OIL COOLER INLET, NO.1 (1 parts) 9161160810 — not listed in this catalogue 32925 — CLAMP, OIL COOLER TUBE, NO.3 (1 parts) 32923C — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 (1 parts) 9161961250 — not listed in this catalogue 32921G — RING, O(FOR OIL COOLER TUBE UNION) (1 parts) 32924 — CLAMP, OIL COOLER TUBE, NO.2 (1 parts) 32941A — HOSE, OIL COOLER INLET, NO.2 (1 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (1 parts) 9161160810 — not listed in this catalogue 9162961216 — not listed in this catalogue
MCB969A · 24 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
32904 — Tube Sub-assy, Oil Cooler Inlet, NO.1
32904-60020 Tube Sub-assy, Oil Cooler Inlet, NO.1
1985-10 → 1987-08 ended
HJ60 4FC —
32905 — Tube Sub-assy, Oil Cooler Outlet, NO.1
32905-60020 Tube Sub-assy, Oil Cooler Outlet, NO.1
1985-10 → 1987-08 ended
HJ60 4FC —
32906D — Tube Sub-assy, Oil Cooler, NO.2
32907-60021 Tube Sub-assy, Oil Cooler, NO.2
1985-10 → 1987-08 ended
HJ60 4FC —
32921C — Union(FOR OIL COOLER TUBE)
90404-16022 note Union(FOR OIL COOLER TUBE)
1985-10 → 1987-08 ended
HJ60 4FC —
90407-14005 note Union(FOR OIL COOLER TUBE)
1985-10 → 1987-08 ended
HJ60 4FC —
90407-16006 note Union(FOR OIL COOLER TUBE)
1985-10 → 1987-08 ended
HJ60 4FC —
32921G — Ring, O(FOR OIL COOLER TUBE UNION)
90301-11006 Ring, O(FOR OIL COOLER TUBE UNION)
1985-10 → 1987-08 ended
HJ60 4FC —
32923B — Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923-36010 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
1985-10 → 1987-08 ended
HJ60 4FC —
32923C — Clamp, Automatic Transmission Oil Cooler Tube, NO.4
90462-12038 Clamp, Automatic Transmission Oil Cooler Tube, NO.4
1985-10 → 1987-08 ended
HJ60 4FC —
32924 — Clamp, Oil Cooler Tube, NO.2
32924-60020 Clamp, Oil Cooler Tube, NO.2
1985-10 → 1987-08 ended
HJ60 4FC —
32925 — Clamp, Oil Cooler Tube, NO.3
32925-60020 Clamp, Oil Cooler Tube, NO.3
1985-10 → 1987-08 ended
HJ60 4FC —
32928 — Clamp, Flexible Hose, NO.1
32928-60020 Clamp, Flexible Hose, NO.1
1985-10 → 1987-08 ended
HJ60 4FC —
32929 — Clamp, Flexible Hose, NO.2
32929-60020 Clamp, Flexible Hose, NO.2
1985-10 → 1987-08 ended
HJ60 4FC —
32941 — Hose, Oil Cooler Inlet, NO.1
32943-60010 Hose, Oil Cooler Inlet, NO.1
1985-10 → 1987-08 ended
HJ60 4FC —
32941A — Hose, Oil Cooler Inlet, NO.2
32941-60020 Hose, Oil Cooler Inlet, NO.2
1985-10 → 1987-08 ended
HJ60 4FC —
32942 — Hose, Oil Cooler Outlet, NO.1
32943-60010 Hose, Oil Cooler Outlet, NO.1
1985-10 → 1987-08 ended
HJ60 4FC —
32942A — Hose, Oil Cooler Outlet, NO.2
32942-60020 Hose, Oil Cooler Outlet, NO.2
1985-10 → 1987-08 ended
HJ60 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
