Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

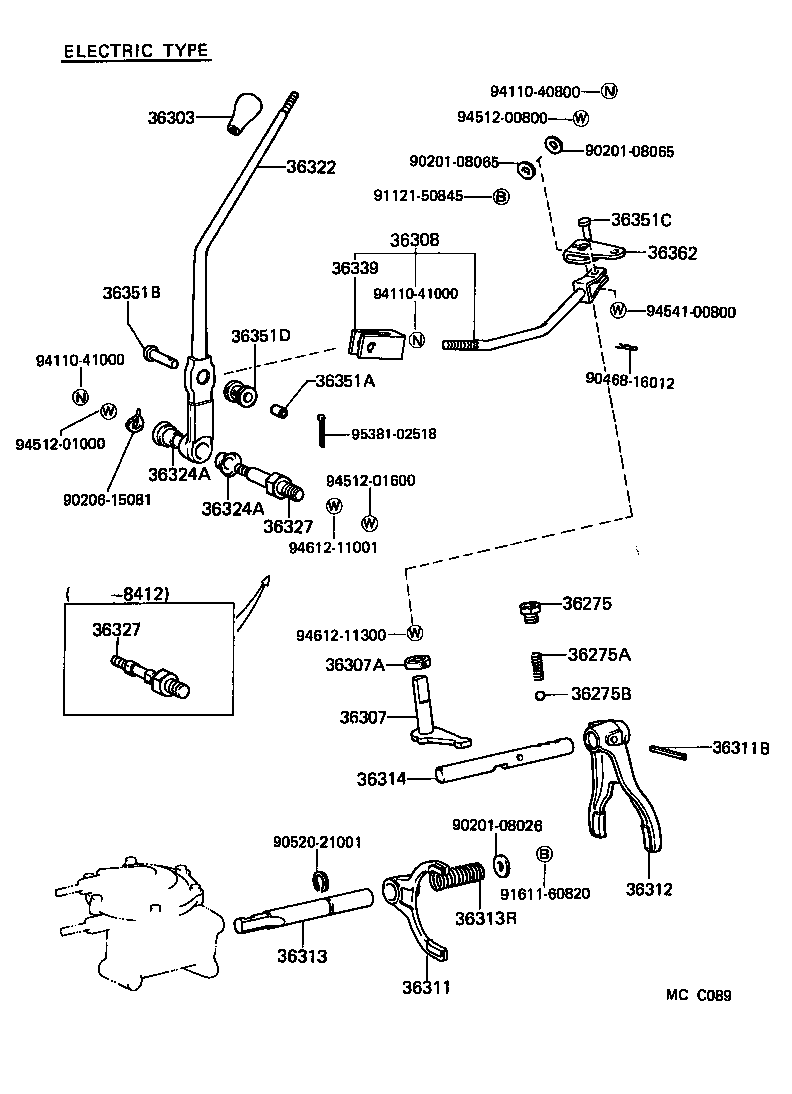

Exploded illustration MCC089 9411040800 — not listed in this catalogue 36303 — KNOB SUB-ASSY, SHIFT LEVER (5 parts) 9451200800 — not listed in this catalogue 9020108065 — not listed in this catalogue 9020108065 — not listed in this catalogue 36322 — LEVER, TRANSFER HIGH & LOW SHIFT (3 parts) 9112150845 — not listed in this catalogue 36351C — PIN (FOR HIGH & LOW SHIFT ROD) (1 parts) 36308 — ROD SUB-ASSY, HIGH & LOW SHIFT (3 parts) 36362 — LEVER, TRANSFER HIGH AND LOW SHIFT OUTER (5 parts) 36339 — CLEVIS, TRANSFER SHIFT ROD (2 parts) 36351B — PIN (FOR HIGH & LOW SHIFT ROD) (2 parts) 9411041000 — not listed in this catalogue 9454100800 — not listed in this catalogue 36351D — GROMMET (FOR HIGH & LOW SHIFT ROD) (1 parts) 9411041000 — not listed in this catalogue 9046816012 — not listed in this catalogue 36351A — SPACER (FOR HIGH & LOW SHIFT ROD) (1 parts) 9538102518 — not listed in this catalogue 9451201000 — not listed in this catalogue 36324A — BUSH, TRANSFER SHIFT LEVER (1 parts) 9451201600 — not listed in this catalogue 9020615081 — not listed in this catalogue 36324A — BUSH, TRANSFER SHIFT LEVER (1 parts) 36327 — SHAFT, TRANSFER SHIFT LEVER (3 parts) 9461211001 — not listed in this catalogue 36275 — PLUG, SHIFT DETENT BALL SPRING (1 parts) 36327 — SHAFT, TRANSFER SHIFT LEVER (3 parts) 9461211300 — not listed in this catalogue 36275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (1 parts) 36307A — SEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER) (1 parts) 36275B — BALL, SHIFT DETENT (1 parts) 36307 — LEVER SUB-ASSY, HIGH & LOW SHIFT INNER (2 parts) 36311B — PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) (2 parts) 36314 — SHAFT, TRANSFER HIGH AND LOW SHIFT FORK (4 parts) 9020108026 — not listed in this catalogue 9052021001 — not listed in this catalogue 36312 — FORK, TRANSFER GEAR SHIFT, NO.2 (2 parts) 9161160820 — not listed in this catalogue 36313R — SPRING, COMPRESSION (FOR TRANSFER FRONT DRIVE SHIFT SHAFT) (1 parts) 36313 — SHAFT, TRANSFER FRONT DRIVE SHIFT (2 parts) 36311 — FORK, TRANSFER GEAR SHIFT, NO.1 (2 parts)
MCC089 · 24 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
36275 — Plug, Shift Detent Ball Spring
90341-15001 Plug, Shift Detent Ball Spring
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36275A — Spring, Compression (FOR SHIFT DETENT BALL)
90501-14029 Spring, Compression (FOR SHIFT DETENT BALL)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36275B — Ball, Shift Detent
90360-10003 note Ball, Shift Detent
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36303 — Knob Sub-assy, Shift Lever
36303-60070 note Knob Sub-assy, Shift Lever
1984-11 → 1985-04 ended
BJ60 —
36303-60070 note Knob Sub-assy, Shift Lever
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
36303-60080 note Knob Sub-assy, Shift Lever
1980-08 → 1984-11 ended
BJ60,FJ60 —
36303-60080 note Knob Sub-assy, Shift Lever
1984-11 → 1985-04 ended
FJ60 —
36303-60130 note Knob Sub-assy, Shift Lever
1984-11 → 1987-08 ended
BJ60,HJ60 —
36307 — Lever Sub-assy, High & Low Shift Inner
36307-60030 note Lever Sub-assy, High & Low Shift Inner
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
36307-60040 note Lever Sub-assy, High & Low Shift Inner
1984-11 → 1987-08 ended
BJ60,HJ60 —
36307A — Seal, Oil (FOR HIGH & LOW SHIFT INNER LEVER)
90313-13001 Seal, Oil (FOR HIGH & LOW SHIFT INNER LEVER)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36308 — Rod Sub-assy, High & Low Shift
36308-60050 Rod Sub-assy, High & Low Shift
1984-11 → 1985-02 ended
BJ60 —
36308-60080 Rod Sub-assy, High & Low Shift
1985-02 → 1987-08 ended
BJ60,HJ60 5F —
36308-60100 Rod Sub-assy, High & Low Shift
1985-10 → 1987-08 ended
HJ60 4FC —
36311 — Fork, Transfer Gear Shift, NO.1
36311-60040 Fork, Transfer Gear Shift, NO.1
1980-08 → 1982-10 ended
BJ60,FJ60 —
36311-60041 Fork, Transfer Gear Shift, NO.1
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
36311B — Pin, Slotted Spring (FOR TRANSFER SHIFT FORK)
90254-05004 note Pin, Slotted Spring (FOR TRANSFER SHIFT FORK)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
90254-05016 note Pin, Slotted Spring (FOR TRANSFER SHIFT FORK)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36312 — Fork, Transfer Gear Shift, NO.2
36312-60030 note Fork, Transfer Gear Shift, NO.2
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
36312-60040 note Fork, Transfer Gear Shift, NO.2
1984-11 → 1987-08 ended
BJ60,HJ60 —
36313 — Shaft, Transfer Front Drive Shift
36313-60050 note Shaft, Transfer Front Drive Shift
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
36313-60070 note Shaft, Transfer Front Drive Shift
1984-11 → 1987-08 ended
BJ60,HJ60 —
36313R — Spring, Compression (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
90501-29003 Spring, Compression (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
1984-11 → 1987-08 ended
BJ60,HJ60 —
36314 — Shaft, Transfer High And Low Shift Fork
36314-60030 Shaft, Transfer High And Low Shift Fork
1980-08 → 1984-11 ended
BJ60,FJ60 —
36314-60030 Shaft, Transfer High And Low Shift Fork
1984-11 → 1985-04 ended
FJ60 —
36314-60040 Shaft, Transfer High And Low Shift Fork
1984-11 → 1985-04 ended
BJ60 —
36314-60040 Shaft, Transfer High And Low Shift Fork
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
36322 — Lever, Transfer High & Low Shift
36322-60110 Lever, Transfer High & Low Shift
1984-11 → 1984-12 ended
BJ60 —
36322-60111 Lever, Transfer High & Low Shift
1984-12 → 1985-10 ended
BJ60 —
36360-60220 Lever, Transfer High & Low Shift
1985-10 → 1987-08 ended
HJ60 —
36324A — Bush, Transfer Shift Lever
36324-60050 Bush, Transfer Shift Lever
1984-12 → 1987-08 ended
BJ60,HJ60 —
36327 — Shaft, Transfer Shift Lever
36327-60030 note Shaft, Transfer Shift Lever
1984-11 → 1984-12 ended
BJ60 —
36327-60031 note Shaft, Transfer Shift Lever
1984-12 → 1987-08 ended
BJ60,HJ60 —
36327-60040 note Shaft, Transfer Shift Lever
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
36339 — Clevis, Transfer Shift Rod
36338-60020 Clevis, Transfer Shift Rod
1984-11 → 1985-02 ended
BJ60 —
36338-60030 Clevis, Transfer Shift Rod
1985-02 → 1987-08 ended
BJ60,HJ60 —
36351A — Spacer (FOR HIGH & LOW SHIFT ROD)
90560-10406 Spacer (FOR HIGH & LOW SHIFT ROD)
1984-11 → 1987-08 ended
BJ60,HJ60 —
36351B — Pin (FOR HIGH & LOW SHIFT ROD)
90240-10027 Pin (FOR HIGH & LOW SHIFT ROD)
1984-11 → 1985-02 ended
BJ60 —
90240-10157 Pin (FOR HIGH & LOW SHIFT ROD)
1985-02 → 1987-08 ended
BJ60,HJ60 —
36351C — Pin (FOR HIGH & LOW SHIFT ROD)
90240-08128 Pin (FOR HIGH & LOW SHIFT ROD)
1984-11 → 1987-08 ended
BJ60,HJ60 —
36351D — Grommet (FOR HIGH & LOW SHIFT ROD)
90480-17401 Grommet (FOR HIGH & LOW SHIFT ROD)
1984-11 → 1987-08 ended
BJ60,HJ60 —
36362 — Lever, Transfer High And Low Shift Outer
36362-60011 Lever, Transfer High And Low Shift Outer
1980-08 → 1984-11 ended
BJ60,FJ60 —
36362-60011 Lever, Transfer High And Low Shift Outer
1984-11 → 1985-04 ended
FJ60 —
36362-60020 note Lever, Transfer High And Low Shift Outer
1984-11 → 1987-08 ended
BJ60,HJ60 —
36362-60040 note Lever, Transfer High And Low Shift Outer
1984-11 → 1985-04 ended
BJ60 —
36362-60040 note Lever, Transfer High And Low Shift Outer
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
