Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

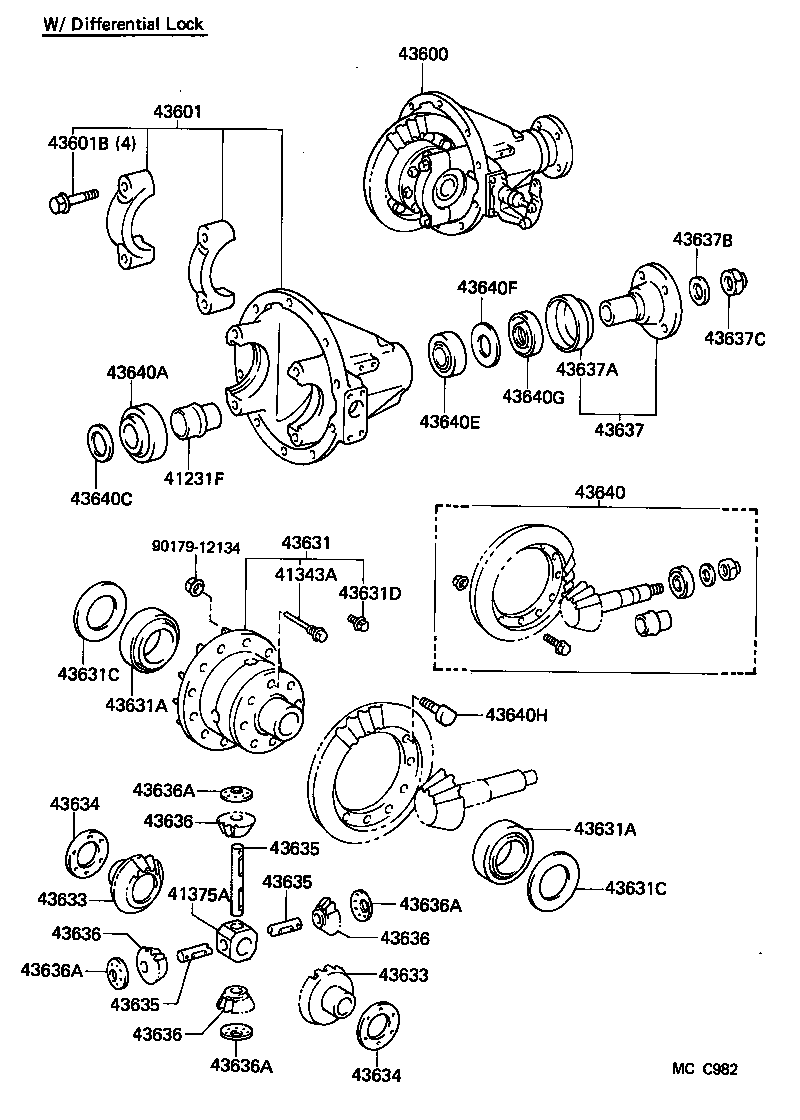

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41231F — Spacer, Front Differential Drive Pinion Bearing | ||||
| 41231-60020 |
Spacer, Front Differential Drive Pinion Bearing
1986-08 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 41343A — Pin, Front Differential Pinion Shaft | ||||
| 41343-60010 note |
Pin, Front Differential Pinion Shaft
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 41375A — Holder, Front Differential Pinion Shaft | ||||
| 41375-60010 note |
Holder, Front Differential Pinion Shaft
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 43600 — Carrier Assy, Front Axle | ||||
| 41110-60026 note |
Carrier Assy, Front Axle
1980-08 → 1984-08
ended
|
BJ60,FJ60 | — | |
| 41110-60027 note |
Carrier Assy, Front Axle
1984-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 41110-60028 note |
Carrier Assy, Front Axle
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 41110-60100 note |
Carrier Assy, Front Axle
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 41110-60100 note |
Carrier Assy, Front Axle
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 MTM | — | |
| 41110-60110 note |
Carrier Assy, Front Axle
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 41110-60220 note |
Carrier Assy, Front Axle
1986-08 → 1987-08
ended
|
HJ60 5F | — | |
| 41110-60230 note |
Carrier Assy, Front Axle
1986-08 → 1987-08
ended
|
HJ60 4FC | — | |
| 43601 — Carrier Sub-assy, Front Axle | ||||
| 41101-60021 |
Carrier Sub-assy, Front Axle
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 41101-60021 |
Carrier Sub-assy, Front Axle
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 41101-60040 |
Carrier Sub-assy, Front Axle
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 41101-60040 |
Carrier Sub-assy, Front Axle
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 41101-60080 note |
Carrier Sub-assy, Front Axle
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 43601B — Bolt, Front Axle Differential Bearing Cap | ||||
| 41114-35010 |
Bolt, Front Axle Differential Bearing Cap
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 41114-60010 note |
Bolt, Front Axle Differential Bearing Cap
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90105-12053 |
Bolt, Front Axle Differential Bearing Cap
1984-11 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43631 — Case, Front Axle Differential | ||||
| 41301-60020 note |
Case, Front Axle Differential
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 41311-36010 |
Case, Front Axle Differential
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43631A — Bearing, Front Axle Differential | ||||
| 90366-60002 note |
Bearing, Front Axle Differential
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90368-45066 |
Bearing, Front Axle Differential
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43631C — Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79001 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79002 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79003 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79004 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79005 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79006 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79007 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79008 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79009 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79010 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79011 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79012 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79013 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79014 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79015 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79016 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79017 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79018 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79019 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79020 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79021 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79022 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90201-79023 note |
Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 43631D — Bolt, Hexagon (FOR DIFFERENTIAL CASE) | ||||
| 90109-10091 note |
Bolt, Hexagon (FOR DIFFERENTIAL CASE)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 43633 — Gear, Front Axle Differential Side | ||||
| 41331-35020 |
Gear, Front Axle Differential Side
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 41331-60020 note |
Gear, Front Axle Differential Side
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 43634 — Washer, Front Axle Differential Side Gear Thrust | ||||
| 41361-60010 note |
Washer, Front Axle Differential Side Gear Thrust
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 41361-60020 note |
Washer, Front Axle Differential Side Gear Thrust
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 41361-60030 note |
Washer, Front Axle Differential Side Gear Thrust
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 41361-60040 note |
Washer, Front Axle Differential Side Gear Thrust
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43635 — Shaft, Front Axle Differential Pinion | ||||
| 41342-55010 |
Shaft, Front Axle Differential Pinion
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 41342-60010 note |
Shaft, Front Axle Differential Pinion
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 41342-60020 note |
Shaft, Front Axle Differential Pinion
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 43636 — Pinion, Front Axle Differential | ||||
| 41341-55012 |
Pinion, Front Axle Differential
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43636A — Washer, Front Axle Differential Pinion Thrust | ||||
| 41351-35011 |
Washer, Front Axle Differential Pinion Thrust
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43637 — Flange, Front Axle Drive Pinion, W/Deflector | ||||
| 41204-60010 |
Flange, Front Axle Drive Pinion, W/Deflector
1980-08 → 1984-08
ended
|
BJ60,FJ60 | — | |
| 41204-60030 |
Flange, Front Axle Drive Pinion, W/Deflector
1984-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43637A — Deflector, Dust (FOR FRONT AXLE) | ||||
| 37341-30010 |
Deflector, Dust (FOR FRONT AXLE)
1980-08 → 1984-08
ended
|
BJ60,FJ60 | — | |
| 41252-35010 |
Deflector, Dust (FOR FRONT AXLE)
1984-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43637B — Washer, Plate (FOR FRONT AXLE DRIVE PINION) | ||||
| 90201-20005 |
Washer, Plate (FOR FRONT AXLE DRIVE PINION)
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90201-20005 |
Washer, Plate (FOR FRONT AXLE DRIVE PINION)
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90201-22007 |
Washer, Plate (FOR FRONT AXLE DRIVE PINION)
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-22007 |
Washer, Plate (FOR FRONT AXLE DRIVE PINION)
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43637C — Nut, Castle (FOR FRONT AXLE DRIVE PINION) | ||||
| 90179-20001 |
Nut, Castle (FOR FRONT AXLE DRIVE PINION)
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90179-20001 |
Nut, Castle (FOR FRONT AXLE DRIVE PINION)
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90179-22011 |
Nut, Castle (FOR FRONT AXLE DRIVE PINION)
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90179-22011 |
Nut, Castle (FOR FRONT AXLE DRIVE PINION)
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43640 — Final Gear Set, Front Axle Differential | ||||
| 41201-69095 note |
Final Gear Set, Front Axle Differential
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 41201-69155 note |
Final Gear Set, Front Axle Differential
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 41201-69156 note |
Final Gear Set, Front Axle Differential
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 41201-69156 note |
Final Gear Set, Front Axle Differential
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 MTM | — | |
| 41201-69166 note |
Final Gear Set, Front Axle Differential
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 43640A — Bearing, Front Axle Drive Pinion, Front | ||||
| 90366-40004 |
Bearing, Front Axle Drive Pinion, Front
1981-01 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 97619-30308 |
Bearing, Front Axle Drive Pinion, Front
1980-08 → 1981-01
ended
|
BJ60,FJ60 | — | |
| 43640C — Spacer OR Washer, Front Axle Drive Pinion Thrust | ||||
| 90201-40551 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40551 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40552 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40552 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40553 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40553 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40554 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40554 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40555 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40555 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40556 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40556 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40557 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40557 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40558 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40558 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40559 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40559 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40560 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90201-40560 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40561 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90201-40561 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90560-30184 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90560-30184 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30185 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90560-30185 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30186 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90560-30186 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30187 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90560-30187 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30188 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30188 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90560-30190 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30190 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90560-30191 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90560-30191 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30192 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30192 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90560-30199 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90560-30199 note |
Spacer OR Washer, Front Axle Drive Pinion Thrust
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 43640E — Bearing, Front Axle Drive Pinion, Rear | ||||
| 90366-30011 |
Bearing, Front Axle Drive Pinion, Rear
1981-01 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 97619-30306 |
Bearing, Front Axle Drive Pinion, Rear
1980-08 → 1981-01
ended
|
BJ60,FJ60 | — | |
| 43640F — Slinger, Front Axle Drive Pinion Oil | ||||
| 41214-26010 |
Slinger, Front Axle Drive Pinion Oil
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 41214-26010 |
Slinger, Front Axle Drive Pinion Oil
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 41214-30010 |
Slinger, Front Axle Drive Pinion Oil
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 41214-40010 |
Slinger, Front Axle Drive Pinion Oil
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 41214-40010 |
Slinger, Front Axle Drive Pinion Oil
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 43640G — Seal, Type T Oil (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
Seal, Type T Oil (FOR FRONT AXLE DIFFERENTIAL CARRIER)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 43640H — Bolt, Ring Gear Set | ||||
| 41226-35010 |
Bolt, Ring Gear Set
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
