Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

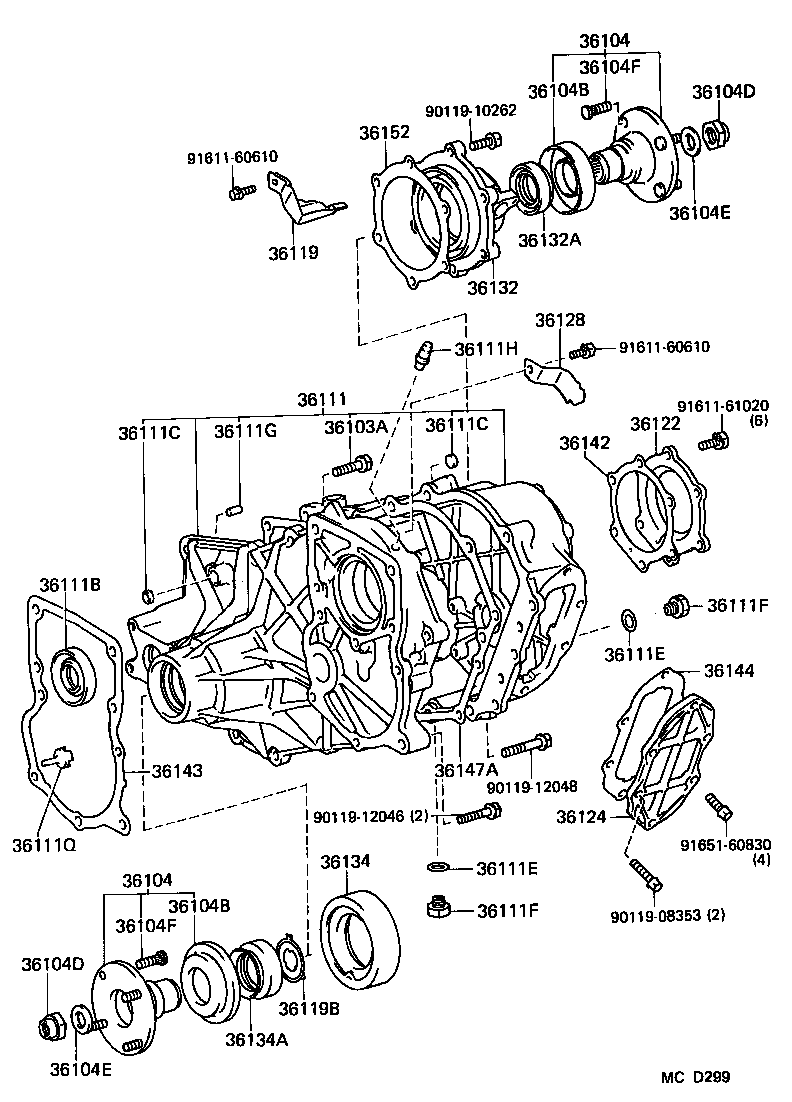

Exploded illustration MCD299 36104 — FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) (7 parts) 36104F — BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) (1 parts) 36104B — DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) (2 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (1 parts) 9011910262 — not listed in this catalogue 36152 — GASKET, OUTPUT SHAFT BEARING RETAINER (1 parts) 9161160610 — not listed in this catalogue 36104E — WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) (1 parts) 36132A — SEAL, OIL (FOR OUTPUT SHAFT RETAINER) (4 parts) 36119 — RECEIVER, TRANSFER OIL, NO.1 (1 parts) 36132 — RETAINER, OUTPUT SHAFT BEARING, REAR NO.1 (1 parts) 36128 — DEFLECTOR, BREATHER OIL (2 parts) 9161160610 — not listed in this catalogue 36111H — PLUG, BREATHER (FOR TRANSFER CASE) (1 parts) 36111 — CASE, TRANSFER (10 parts) 9161161020 — not listed in this catalogue 36122 — COVER, TRANSFER CASE, NO.2 (1 parts) 36111C — PLUG (FOR TRANSFER CASE) (2 parts) 36103A — BOLT (FOR TRANSFER CASE) (2 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (1 parts) 36111C — PLUG (FOR TRANSFER CASE) (2 parts) 36142 — GASKET, TRANSFER COVER (1 parts) 36111B — SEAL, OIL (FOR TRANSFER CASE) (8 parts) 36111F — PLUG (FOR TRANSFER CASE) (3 parts) 36111E — GASKET (FOR TRANSFER CASE) (3 parts) 36144 — GASKET, TRANSFER POWER TAKE-OFF COVER (1 parts) 36147A — GASKET, TRANSFER CASE (1 parts) 36143 — GASKET, TRANSFER CASE, FRONT (4 parts) 9011912048 — not listed in this catalogue 9011912046 — not listed in this catalogue 36124 — COVER, TRANSFER POWER TAKE-OFF (1 parts) 36111Q — PIPE, OIL RECEIVER (1 parts) 9165160830 — not listed in this catalogue 36134 — RETAINER, OUTPUT SHAFT BEARING, FRONT (1 parts) 36111E — GASKET (FOR TRANSFER CASE) (3 parts) 36104 — FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) (7 parts) 36104B — DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) (2 parts) 36111F — PLUG (FOR TRANSFER CASE) (3 parts) 9011908353 — not listed in this catalogue 36104F — BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) (1 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (1 parts) 36119B — RECEIVER, TRANSFER OIL, NO.2 (1 parts) 36134A — SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER) (4 parts) 36104E — WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) (1 parts)
MCD299 · 36 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
36103A — Bolt (FOR TRANSFER CASE)
91651-61030 note Bolt (FOR TRANSFER CASE)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
91651-61040 note Bolt (FOR TRANSFER CASE)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36104 — Flange, Companion (FOR TRANSFER OUTPUT SHAFT)
33309-60010 note Flange, Companion (FOR TRANSFER OUTPUT SHAFT)
1980-08 → 1984-11 ended
BJ60,FJ60 —
33309-60010 note Flange, Companion (FOR TRANSFER OUTPUT SHAFT)
1984-11 → 1985-04 ended
FJ60 —
33309-60020 note Flange, Companion (FOR TRANSFER OUTPUT SHAFT)
1980-08 → 1984-08 ended
BJ60,FJ60 —
33309-60040 note Flange, Companion (FOR TRANSFER OUTPUT SHAFT)
1984-08 → 1987-04 ended
BJ60,FJ60,HJ60 —
33309-60041 note Flange, Companion (FOR TRANSFER OUTPUT SHAFT)
1987-04 → 1987-08 ended
FJ60,HJ60 —
33309-60070 note Flange, Companion (FOR TRANSFER OUTPUT SHAFT)
1984-11 → 1985-04 ended
BJ60 —
33309-60070 note Flange, Companion (FOR TRANSFER OUTPUT SHAFT)
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
36104B — Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
33325-60010 note Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
33325-60020 note Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36104D — Nut (FOR TRANSFER OUTPUT SHAFT)
90179-22005 Nut (FOR TRANSFER OUTPUT SHAFT)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36104E — Washer, Plate (FOR TRANSFER OUTPUT SHAFT)
90201-22005 Washer, Plate (FOR TRANSFER OUTPUT SHAFT)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36104F — Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90114-11124 Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36111 — Case, Transfer
36103-60010 Case, Transfer
1980-08 → 1982-10 ended
BJ60,FJ60 —
36103-60011 Case, Transfer
1982-10 → 1984-11 ended
BJ60,FJ60 —
36103-60011 Case, Transfer
1984-11 → 1985-04 ended
FJ60 —
36103-60050 Case, Transfer
1985-04 → 1986-04 ended
FJ60 —
36103-60070 note Case, Transfer
1984-11 → 1985-10 ended
BJ60 —
36103-60080 note Case, Transfer
1984-11 → 1985-10 ended
BJ60 —
36103-60120 Case, Transfer
1986-04 → 1987-08 ended
FJ60 —
36103-60140 note Case, Transfer
1985-10 → 1987-08 ended
HJ60 5F —
36103-60150 note Case, Transfer
1985-10 → 1987-08 ended
HJ60 5F —
36103-60160 Case, Transfer
1985-10 → 1987-08 ended
HJ60 4FC —
36111B — Seal, Oil (FOR TRANSFER CASE)
90311-48002 Seal, Oil (FOR TRANSFER CASE)
1980-08 → 1982-10 ended
BJ60,FJ60 —
90311-48007 Seal, Oil (FOR TRANSFER CASE)
1982-10 → 1984-11 ended
BJ60,FJ60 —
90311-48007 Seal, Oil (FOR TRANSFER CASE)
1984-11 → 1985-04 ended
FJ60 —
90311-48008 Seal, Oil (FOR TRANSFER CASE)
1984-11 → 1986-08 ended
BJ60,HJ60 5F —
90311-48008 Seal, Oil (FOR TRANSFER CASE)
1985-04 → 1986-08 ended
FJ60 —
90311-48012 Seal, Oil (FOR TRANSFER CASE)
1986-08 → 1987-08 ended
FJ60,HJ60 MTM —
90316-48002 Seal, Oil (FOR TRANSFER CASE)
1985-10 → 1986-08 ended
HJ60 4FC —
90316-48003 Seal, Oil (FOR TRANSFER CASE)
1986-08 → 1987-08 ended
HJ60 4FC —
36111C — Plug (FOR TRANSFER CASE)
90331-16050 Plug (FOR TRANSFER CASE)
1980-08 → 1986-09 ended
BJ60,FJ60,HJ60 —
96411-11600 Plug (FOR TRANSFER CASE)
1986-09 → 1987-08 ended
FJ60,HJ60 —
36111E — Gasket (FOR TRANSFER CASE)
12157-10010 Gasket (FOR TRANSFER CASE)
1980-08 → 1981-09 ended
BJ60,FJ60 —
90430-18007 Gasket (FOR TRANSFER CASE)
1981-09 → 1984-08 ended
BJ60,FJ60 —
90430-18008 Gasket (FOR TRANSFER CASE)
1984-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36111F — Plug (FOR TRANSFER CASE)
90341-18002 note Plug (FOR TRANSFER CASE)
1980-08 → 1983-04 ended
BJ60,FJ60 —
90341-18006 note Plug (FOR TRANSFER CASE)
1983-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
90341-18057 note Plug (FOR TRANSFER CASE)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36111G — Pin, Straight (FOR TRANSFER CASE)
90250-10006 note Pin, Straight (FOR TRANSFER CASE)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36111H — Plug, Breather (FOR TRANSFER CASE)
90930-03075 Plug, Breather (FOR TRANSFER CASE)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36111Q — Pipe, Oil Receiver
33124-36010 Pipe, Oil Receiver
1982-10 → 1987-08 ended
BJ60,HJ60 5F —
36119 — Receiver, Transfer Oil, NO.1
36119-60010 Receiver, Transfer Oil, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36119B — Receiver, Transfer Oil, NO.2
36119-60030 Receiver, Transfer Oil, NO.2
1984-11 → 1987-08 ended
BJ60,FJ60,HJ60 —
36122 — Cover, Transfer Case, NO.2
36122-60040 Cover, Transfer Case, NO.2
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36124 — Cover, Transfer Power Take-off
36124-60020 Cover, Transfer Power Take-off
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36128 — Deflector, Breather Oil
36128-60020 Deflector, Breather Oil
1980-08 → 1982-10 ended
BJ60,FJ60 —
36128-60021 Deflector, Breather Oil
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
36132 — Retainer, Output Shaft Bearing, Rear NO.1
36132-60020 Retainer, Output Shaft Bearing, Rear NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36132A — Seal, Oil (FOR OUTPUT SHAFT RETAINER)
90311-48003 Seal, Oil (FOR OUTPUT SHAFT RETAINER)
1980-08 → 1984-11 ended
BJ60,FJ60 —
90311-48003 Seal, Oil (FOR OUTPUT SHAFT RETAINER)
1984-11 → 1985-04 ended
FJ60 —
90311-48010 Seal, Oil (FOR OUTPUT SHAFT RETAINER)
1984-11 → 1987-08 ended
BJ60,HJ60 —
90311-48010 Seal, Oil (FOR OUTPUT SHAFT RETAINER)
1985-04 → 1987-08 ended
FJ60 —
36134 — Retainer, Output Shaft Bearing, Front
36134-60020 Retainer, Output Shaft Bearing, Front
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36134A — Seal, Oil (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
90311-48002 Seal, Oil (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
1980-08 → 1984-11 ended
BJ60,FJ60 —
90311-48002 Seal, Oil (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
1984-11 → 1985-04 ended
FJ60 —
90311-48009 Seal, Oil (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
1984-11 → 1987-08 ended
BJ60,HJ60 —
90311-48009 Seal, Oil (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
1985-04 → 1987-08 ended
FJ60 —
36142 — Gasket, Transfer Cover
36142-60030 Gasket, Transfer Cover
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36143 — Gasket, Transfer Case, Front
33142-60020 Gasket, Transfer Case, Front
1980-08 → 1985-04 ended
BJ60,FJ60 4F —
33142-60030 Gasket, Transfer Case, Front
1982-10 → 1987-08 ended
BJ60,HJ60 5F —
33142-60040 Gasket, Transfer Case, Front
1985-04 → 1987-08 ended
FJ60 —
36143-60030 Gasket, Transfer Case, Front
1985-10 → 1987-08 ended
HJ60 4FC —
36144 — Gasket, Transfer Power Take-off Cover
36144-60020 Gasket, Transfer Power Take-off Cover
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36147A — Gasket, Transfer Case
36143-60020 Gasket, Transfer Case
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
36152 — Gasket, Output Shaft Bearing Retainer
36152-60030 Gasket, Output Shaft Bearing Retainer
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
