Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

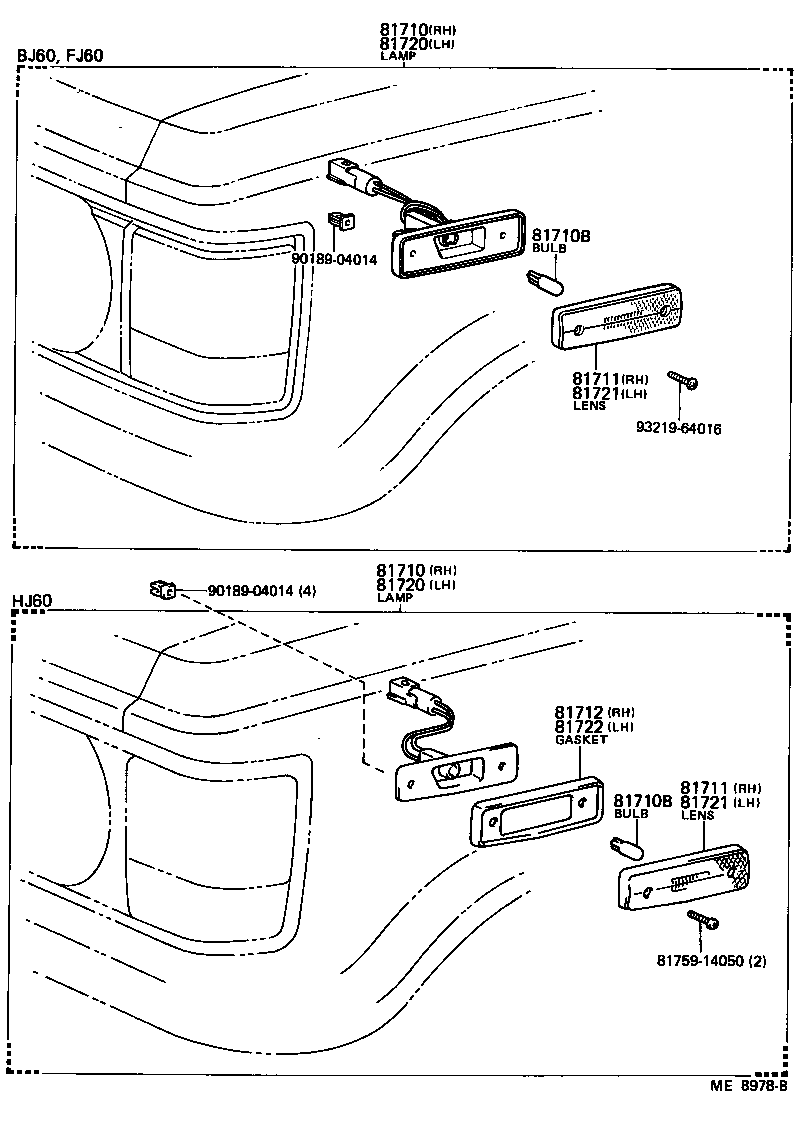

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81710 — Lamp Assy, Front Marker, RH | ||||
| 81730-19305 |
Lamp Assy, Front Marker, RH
1980-08 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 81730-90A01 |
Lamp Assy, Front Marker, RH
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 81710B — Bulb, Front Marker Lamp | ||||
| 90981-11020 note |
Bulb, Front Marker Lamp
1980-08 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 90981-12015 note |
Bulb, Front Marker Lamp
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 81711 — Lens, Front Marker Lamp, RH | ||||
| 81731-14110 |
Lens, Front Marker Lamp, RH
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 81712 — Gasket, Front Marker Lamp Lens, RH | ||||
| 81732-90A01 |
Gasket, Front Marker Lamp Lens, RH
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 81720 — Lamp Assy, Front Marker, LH | ||||
| 81740-19285 |
Lamp Assy, Front Marker, LH
1980-08 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 81740-90A01 |
Lamp Assy, Front Marker, LH
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 81721 — Lens, Front Marker Lamp, LH | ||||
| 81741-14110 |
Lens, Front Marker Lamp, LH
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 81722 — Gasket, Front Marker Lamp Lens, LH | ||||
| 81742-90A01 |
Gasket, Front Marker Lamp Lens, LH
1985-10 → 1987-08
ended
|
HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
