Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

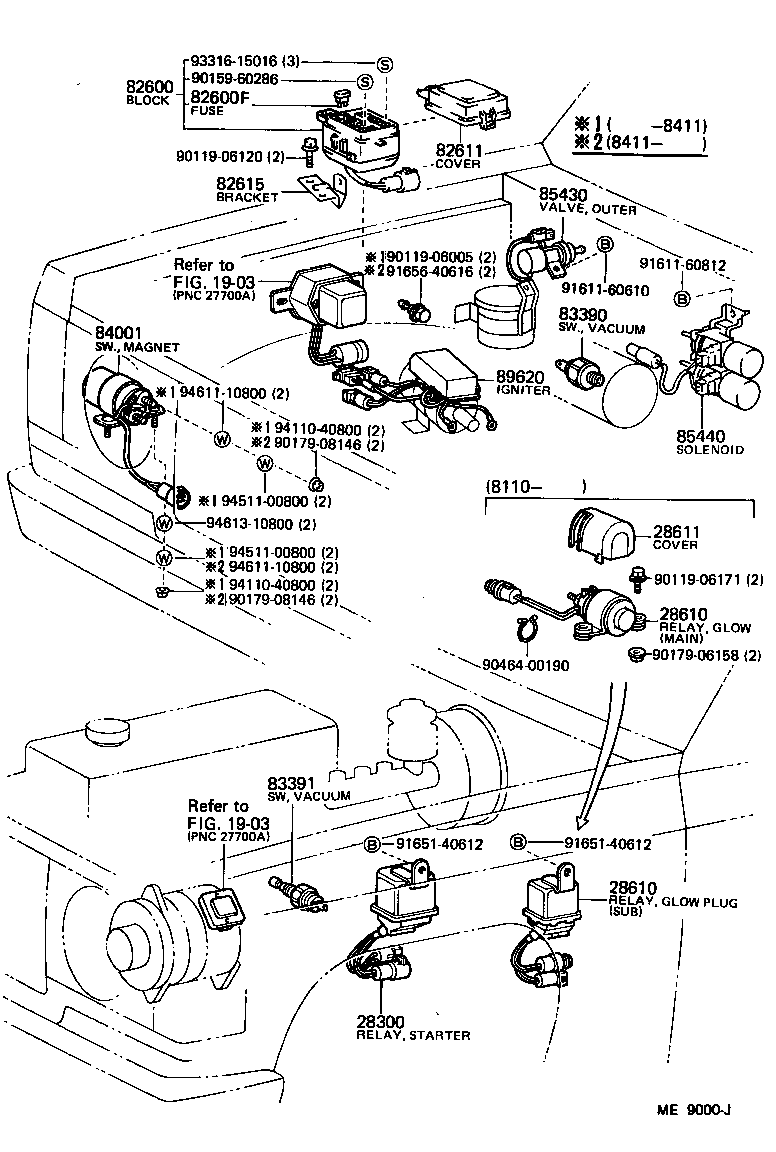

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28300 — Relay Assy, Starter | ||||
| 28300-54020 |
Relay Assy, Starter
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 28300-54070 |
Relay Assy, Starter
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 28300-56020 |
Relay Assy, Starter
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 28610 — Relay Assy, Intake Heater OR Glow Plug | ||||
| 28610-54090 note |
Relay Assy, Intake Heater OR Glow Plug
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 28610-54180 note |
Relay Assy, Intake Heater OR Glow Plug
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 28610-57010 note |
Relay Assy, Intake Heater OR Glow Plug
1980-08 → 1981-04
ended
|
3B BJ60 | — | |
| 28610-57011 note |
Relay Assy, Intake Heater OR Glow Plug
1981-04 → 1981-10
ended
|
3B BJ60 | — | |
| 28610-57050 note |
Relay Assy, Intake Heater OR Glow Plug
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 28610-57060 note |
Relay Assy, Intake Heater OR Glow Plug
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 28611 — Cover, Glow Plug Relay | ||||
| 28611-57010 |
Cover, Glow Plug Relay
1981-10 → 1987-08
ended
|
3B,2H BJ60,HJ60 | — | |
| 82600 — Block Assy, Fuse | ||||
| 82610-90K03 |
Block Assy, Fuse
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-07008 note |
Fuse, Fuse Block
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 99118-62910 note |
Fuse, Fuse Block
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 99118-62915 note |
Fuse, Fuse Block
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 99118-62920 note |
Fuse, Fuse Block
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 82611 — Cover, Fuse Block | ||||
| 82611-90K01 |
Cover, Fuse Block
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 82615 — Bracket, Fuse | ||||
| 82615-90A02 |
Bracket, Fuse
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 83390 — Switch Assy, Vacuum Warning | ||||
| 83390-30020 note |
Switch Assy, Vacuum Warning
1984-02 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 83390-60010 note |
Switch Assy, Vacuum Warning
1980-08 → 1984-02
ended
|
BJ60 | — | |
| 83391 — Switch, Vacuum | ||||
| 83391-12050 |
Switch, Vacuum
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
| 84001 — Switch Assy, Magnet | ||||
| 38630-60040 |
Switch Assy, Magnet
1984-11 → 1985-02
ended
|
BJ60 | — | |
| 38630-60040 |
Switch Assy, Magnet
1980-08 → 1986-04
ended
|
FJ60 | — | |
| 38630-60060 |
Switch Assy, Magnet
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 85430 — Valve, Outer Vent Control | ||||
| 85430-60010 |
Valve, Outer Vent Control
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
| 85440 — Solenoid Assy, Front Drive | ||||
| 85440-60080 |
Solenoid Assy, Front Drive
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 85440-60090 |
Solenoid Assy, Front Drive
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 89620 — Igniter Assy | ||||
| 89620-60042 |
Igniter Assy
1980-08 → 1981-10
ended
|
FJ60 CND | — | |
| 89620-60060 |
Igniter Assy
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
