Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

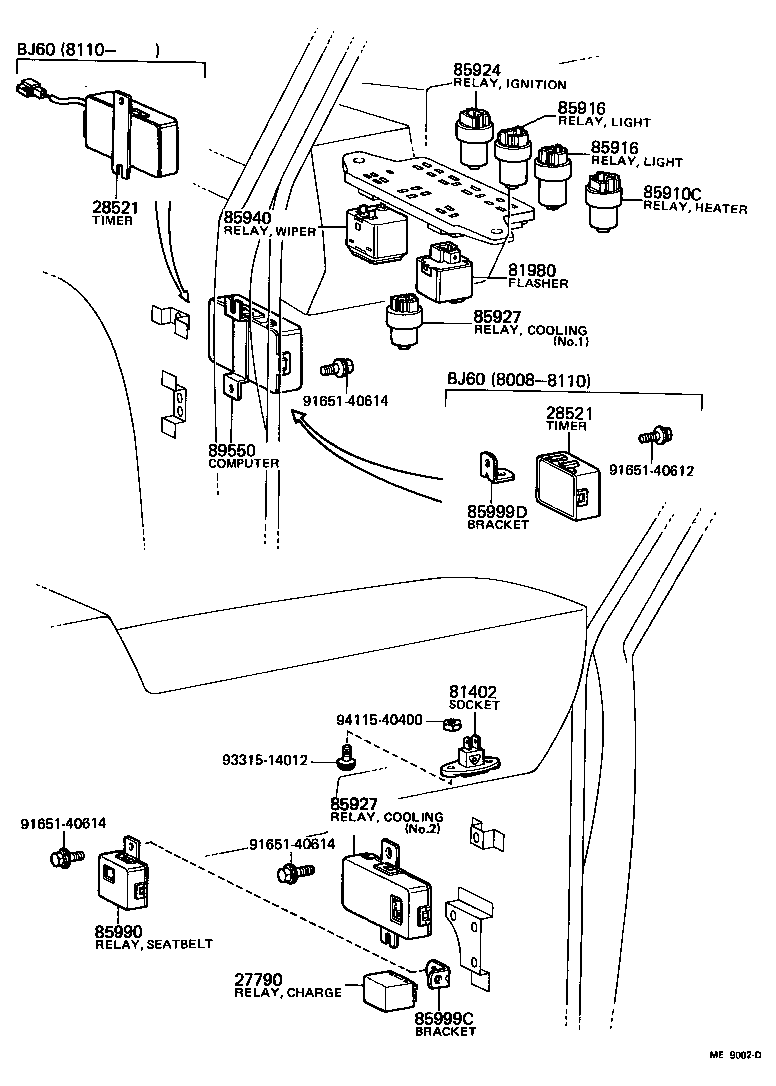

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27790 — Relay Assy, Charge Lamp | ||||
| 27790-13010 |
Relay Assy, Charge Lamp
1980-08 → 1987-08
ended
|
3B,2F BJ60,FJ60 | — | |
| 27790-57010 |
Relay Assy, Charge Lamp
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 28521 — Timer, Preheating | ||||
| 28521-54021 |
Timer, Preheating
1980-08 → 1981-10
ended
|
3B BJ60 | — | |
| 28521-57020 |
Timer, Preheating
1981-10 → 1984-11
ended
|
3B BJ60 | — | |
| 28521-57060 |
Timer, Preheating
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 28521-68051 |
Timer, Preheating
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 81402 — Socket Sub-assy, Inspection Lamp, NO.1 | ||||
| 81402-29016 |
Socket Sub-assy, Inspection Lamp, NO.1
1980-08 → 1986-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-16010 |
Flasher Assy, Turn Signal
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 81980-22060 |
Flasher Assy, Turn Signal
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 81980-22070 |
Flasher Assy, Turn Signal
1981-10 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 81980-36060 |
Flasher Assy, Turn Signal
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 85910C — Relay Assy (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 85913-30020 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1985-04 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 85913-90A01 note |
Relay Assy (FOR HEATER BLOWER MOTOR)
1980-08 → 1985-10
ended
|
FJ60 USA | — | |
| 85913-90K00 note |
Relay Assy (FOR HEATER BLOWER MOTOR)
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 85940-26010 note |
Relay Assy (FOR HEATER BLOWER MOTOR)
1985-10 → 1985-12
ended
|
HJ60 | — | |
| 85980-90A00 note |
Relay Assy (FOR HEATER BLOWER MOTOR)
1985-12 → 1987-08
ended
|
HJ60 | — | |
| 90987-02001 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1980-08 → 1981-03
ended
|
BJ60,FJ60 | — | |
| 90987-02004 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1981-03 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90987-02004 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 85916 — Relay, Light Control | ||||
| 90987-01001 note |
Relay, Light Control
1980-08 → 1981-03
ended
|
BJ60,FJ60 | — | |
| 90987-01003 note |
Relay, Light Control
1985-04 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 90987-01003 note |
Relay, Light Control
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90987-01003 note |
Relay, Light Control
1981-03 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90987-01003 note |
Relay, Light Control
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90987-01004 note |
Relay, Light Control
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 90987-02006 note |
Relay, Light Control
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90987-02006 note |
Relay, Light Control
1985-04 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 90987-02007 note |
Relay, Light Control
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 85924 — Relay, Ignition Control | ||||
| 90987-02001 |
Relay, Ignition Control
1980-08 → 1981-03
ended
|
BJ60,FJ60 | — | |
| 90987-02004 |
Relay, Ignition Control
1981-03 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 90987-02005 |
Relay, Ignition Control
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 85927 — Relay, Cooling Fan | ||||
| 85927-60040 note |
Relay, Cooling Fan
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
| 90987-02004 note |
Relay, Cooling Fan
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
| 85940 — Relay Assy, Windshield Wiper | ||||
| 85940-90A01 |
Relay Assy, Windshield Wiper
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 85940-90A01 |
Relay Assy, Windshield Wiper
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 85940-90A04 |
Relay Assy, Windshield Wiper
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 85940-90A04 |
Relay Assy, Windshield Wiper
1985-04 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 85940-90A07 |
Relay Assy, Windshield Wiper
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 85990 — Relay OR Computer Assy, Seat Belt Warning | ||||
| 85991-22020 |
Relay OR Computer Assy, Seat Belt Warning
1983-09 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 85991-60020 |
Relay OR Computer Assy, Seat Belt Warning
1980-08 → 1983-09
ended
|
BJ60,FJ60 | — | |
| 85991-90A00 |
Relay OR Computer Assy, Seat Belt Warning
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 85999C — Bracket, Relay, NO.3 | ||||
| 85999-89101 note |
Bracket, Relay, NO.3
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85999D — Bracket, Relay, NO.4 | ||||
| 85999-89101 |
Bracket, Relay, NO.4
1980-08 → 1981-10
ended
|
BJ60 | — | |
| 89550 — Computer Assy, Emission Control | ||||
| 89550-60130 |
Computer Assy, Emission Control
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
