Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

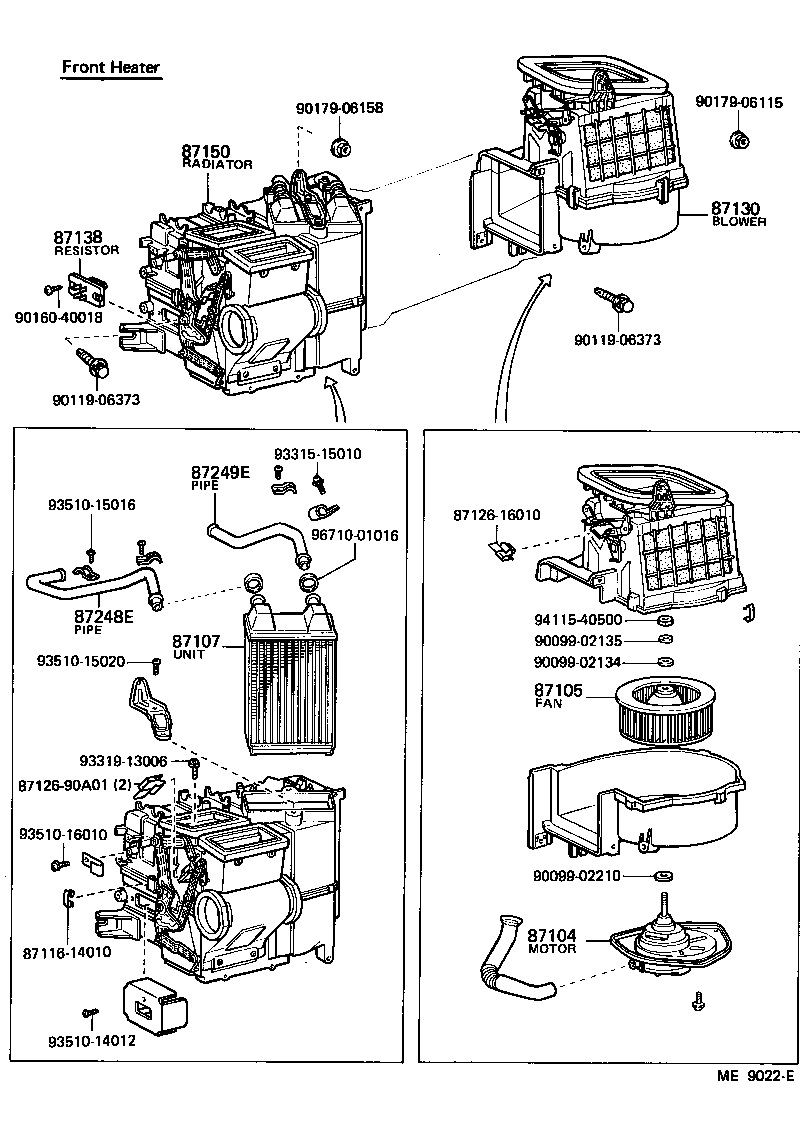

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87104 — Motor Sub-assy, Heater Blower | ||||
| 87104-90A00 |
Motor Sub-assy, Heater Blower
1980-08 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 87104-90A06 |
Motor Sub-assy, Heater Blower
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 87105 — Fan Sub-assy, Heater Blower | ||||
| 87105-14020 |
Fan Sub-assy, Heater Blower
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 87107 — Unit Sub-assy, Heater Radiator | ||||
| 87107-90A00 |
Unit Sub-assy, Heater Radiator
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 87130 — Blower Assy, Heater, Front | ||||
| 87130-90A01 |
Blower Assy, Heater, Front
1980-08 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 87130-90A08 |
Blower Assy, Heater, Front
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 87138 — Resistor, Heater Blower | ||||
| 87138-22030 |
Resistor, Heater Blower
1980-08 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 87138-90A00 |
Resistor, Heater Blower
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 87150 — Radiator Assy, Heater | ||||
| 87150-90A01 |
Radiator Assy, Heater
1980-08 → 1985-04
ended
|
FJ60 | — | |
| 87150-90A03 |
Radiator Assy, Heater
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 87150-90A09 |
Radiator Assy, Heater
1985-04 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 87150-90A11 |
Radiator Assy, Heater
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 87248E — Pipe, Heater Water Inlet, E | ||||
| 87248-90A01 |
Pipe, Heater Water Inlet, E
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 87249E — Pipe, Heater Water Outlet, E (FOR HEATER UNIT) | ||||
| 87248-90A03 |
Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
1980-08 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 87248-90A05 |
Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
1980-08 → 1985-10
ended
|
BJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
