Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

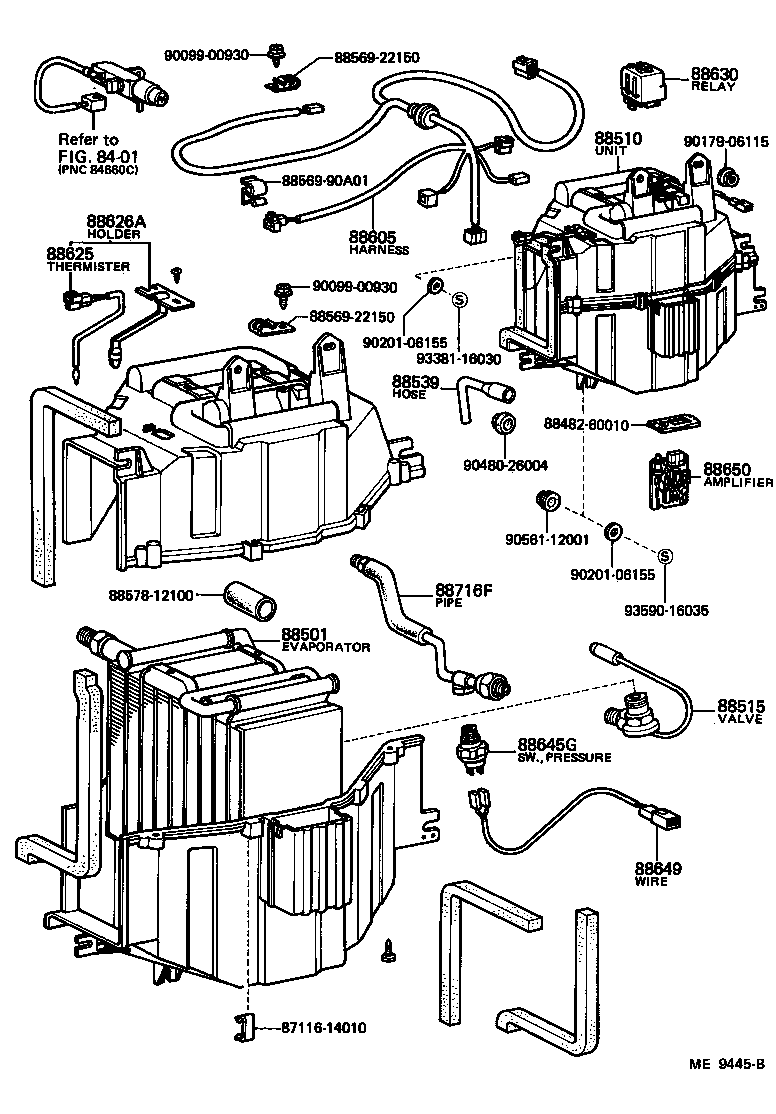

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-90A01 |
Evaporator Sub-assy, Cooler, NO.1
1980-08 → 1985-04
ended
|
FJ60 USA | — | |
| 88501-90A03 |
Evaporator Sub-assy, Cooler, NO.1
1984-11 → 1986-04
ended
|
BJ60,HJ60 | — | |
| 88501-90A03 |
Evaporator Sub-assy, Cooler, NO.1
1985-04 → 1986-04
ended
|
FJ60 | — | |
| 88501-90A07 |
Evaporator Sub-assy, Cooler, NO.1
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 88501-90A07 |
Evaporator Sub-assy, Cooler, NO.1
1986-04 → 1987-08
ended
|
HJ60 | — | |
| 88510 — Unit Assy, Cooler | ||||
| 88510-90A01 |
Unit Assy, Cooler
1980-08 → 1985-04
ended
|
FJ60 USA | — | |
| 88510-90A04 |
Unit Assy, Cooler
1985-04 → 1987-08
ended
|
FJ60 | — | |
| 88510-90A13 |
Unit Assy, Cooler
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 88510-90A13 |
Unit Assy, Cooler
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-20040 |
Valve, Cooler Expansion
1980-08 → 1985-10
ended
|
FJ60 USA | — | |
| 88515-20040 |
Valve, Cooler Expansion
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 88515-87004 |
Valve, Cooler Expansion
1985-10 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 88539 — Hose, Cooler Unit Drain, NO.1 | ||||
| 88539-90A00 |
Hose, Cooler Unit Drain, NO.1
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
| 88539-90A00 |
Hose, Cooler Unit Drain, NO.1
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 88605 — Harness Sub-assy, Cooler Wiring, NO.1 | ||||
| 88605-90A01 |
Harness Sub-assy, Cooler Wiring, NO.1
1980-08 → 1985-04
ended
|
FJ60 USA | — | |
| 88605-90A09 |
Harness Sub-assy, Cooler Wiring, NO.1
1985-04 → 1987-08
ended
|
FJ60 | — | |
| 88605-90A09 |
Harness Sub-assy, Cooler Wiring, NO.1
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-90A00 |
Thermistor, Cooler, NO.1
1980-08 → 1985-04
ended
|
FJ60 USA | — | |
| 88626A — Holder, Thermistor | ||||
| 88626-90A01 |
Holder, Thermistor
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
| 88626-90A01 |
Holder, Thermistor
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 88630 — Relay Assy, Cooler | ||||
| 85913-90A01 |
Relay Assy, Cooler
1980-08 → 1985-04
ended
|
FJ60 USA | — | |
| 88645G — Switch, Pressure | ||||
| 88645-10020 |
Switch, Pressure
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 88645-22020 |
Switch, Pressure
1980-08 → 1985-08
ended
|
FJ60 USA | — | |
| 88645-30250 |
Switch, Pressure
1985-08 → 1987-08
ended
|
FJ60 | — | |
| 88649 — Wiring, Cooler, NO.2 | ||||
| 88648-90A00 |
Wiring, Cooler, NO.2
1980-08 → 1987-08
ended
|
FJ60 USA | — | |
| 88648-90A00 |
Wiring, Cooler, NO.2
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 88650 — Amplifier Assy, Cooler Stabilizer | ||||
| 88650-60020 |
Amplifier Assy, Cooler Stabilizer
1980-08 → 1985-04
ended
|
FJ60 USA | — | |
| 88650-90A02 |
Amplifier Assy, Cooler Stabilizer
1985-04 → 1987-08
ended
|
FJ60 | — | |
| 88650-90A03 |
Amplifier Assy, Cooler Stabilizer
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 88650-90A04 |
Amplifier Assy, Cooler Stabilizer
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 88716F — Pipe, Cooler Refrigerant Liquid, F | ||||
| 88716-90A05 |
Pipe, Cooler Refrigerant Liquid, F
1980-08 → 1984-11
ended
|
FJ60 USA | — | |
| 88716-90A27 |
Pipe, Cooler Refrigerant Liquid, F
1984-11 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
