Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

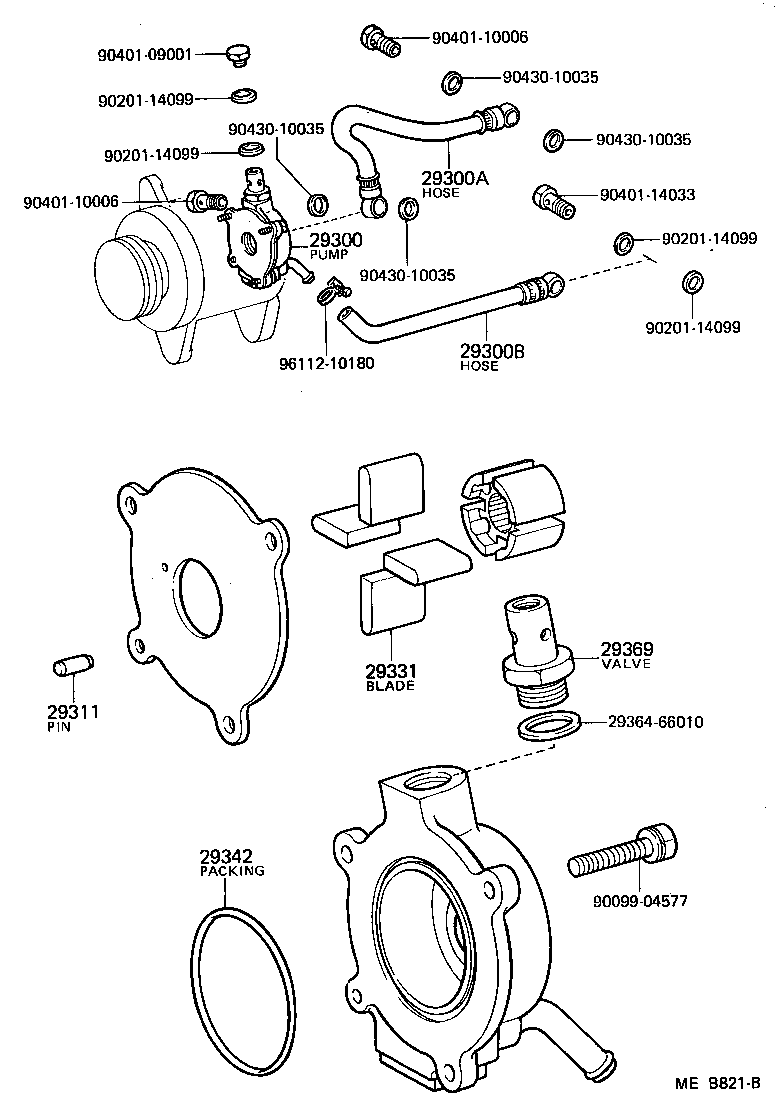

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 29300 — Pump Assy, Vacuum | ||||
| 29300-56070 |
Pump Assy, Vacuum
1982-04 → 1985-10
ended
|
3B BJ60 | — | |
| 29300-57011 |
Pump Assy, Vacuum
1980-08 → 1982-04
ended
|
3B BJ60 | — | |
| 29300-68010 |
Pump Assy, Vacuum
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 29300A — Hose, Vacuum Pump Oil Inlet | ||||
| 90923-02062 |
Hose, Vacuum Pump Oil Inlet
1980-08 → 1982-04
ended
|
3B BJ60 | — | |
| 90923-02072 |
Hose, Vacuum Pump Oil Inlet
1982-04 → 1985-10
ended
|
3B BJ60 | — | |
| 90923-02100 |
Hose, Vacuum Pump Oil Inlet
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 29300B — Hose, Vacuum Pump Oil Outlet | ||||
| 90923-02065 |
Hose, Vacuum Pump Oil Outlet
1980-08 → 1982-04
ended
|
3B BJ60 | — | |
| 90923-02073 |
Hose, Vacuum Pump Oil Outlet
1982-04 → 1985-10
ended
|
3B BJ60 | — | |
| 90923-02079 |
Hose, Vacuum Pump Oil Outlet
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 29311 — Pin, Vacuum Pump Dowel, NO.1 | ||||
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1982-04 → 1987-08
ended
|
3B,2H BJ60,HJ60 | — | |
| 90099-08082 |
Pin, Vacuum Pump Dowel, NO.1
1980-08 → 1982-04
ended
|
3B BJ60 | — | |
| 29331 — Blade, Vacuum Pump, A | ||||
| 29331-56010 |
Blade, Vacuum Pump, A
1980-08 → 1982-04
ended
|
3B BJ60 | — | |
| 29331-56070 |
Blade, Vacuum Pump, A
1982-04 → 1987-08
ended
|
3B,2H BJ60,HJ60 | — | |
| 29342 — Packing, Vacuum Pump | ||||
| 90099-14055 note |
Packing, Vacuum Pump
1982-04 → 1985-10
ended
|
3B BJ60 | — | |
| 96740-02063 |
Packing, Vacuum Pump
1980-08 → 1982-04
ended
|
3B BJ60 | — | |
| 96740-02063 note |
Packing, Vacuum Pump
1982-04 → 1985-10
ended
|
3B BJ60 | — | |
| 96740-02063 |
Packing, Vacuum Pump
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 29369 — Valve Sub-assy, Check | ||||
| 29369-54010 |
Valve Sub-assy, Check
1980-08 → 1982-04
ended
|
3B BJ60 | — | |
| 29369-56070 |
Valve Sub-assy, Check
1982-04 → 1987-08
ended
|
3B,2H BJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
