Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

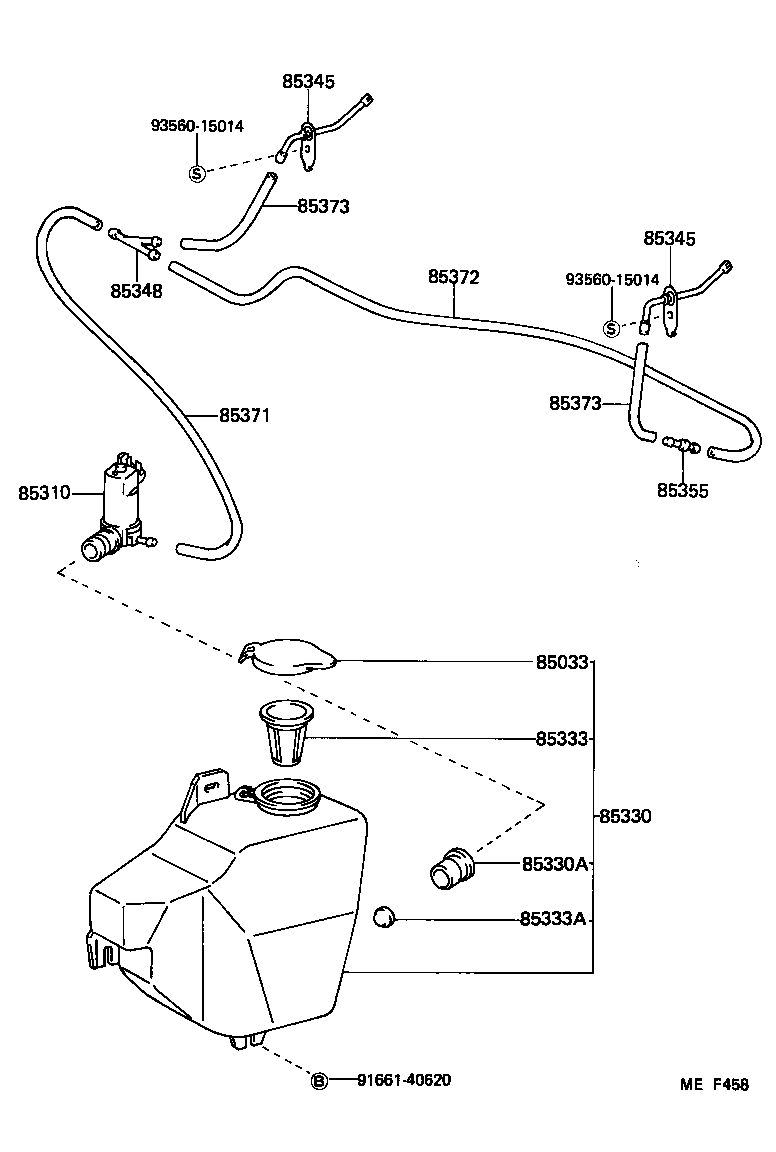

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85033 — Cap Assy, Windshield Washer | ||||
| 85332-90A01 |
Cap Assy, Windshield Washer
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85310 — Motor And Pump Assy, Windshield Washer | ||||
| 85310-10140 |
Motor And Pump Assy, Windshield Washer
1982-10 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 85310-12130 |
Motor And Pump Assy, Windshield Washer
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 85310-12130 |
Motor And Pump Assy, Windshield Washer
1985-04 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 85310-20130 |
Motor And Pump Assy, Windshield Washer
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 85310-20130 |
Motor And Pump Assy, Windshield Washer
1983-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 85310-20130 |
Motor And Pump Assy, Windshield Washer
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 85310-90K01 |
Motor And Pump Assy, Windshield Washer
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 85330 — Jar Assy, Windshield Washer | ||||
| 85330-90A02 |
Jar Assy, Windshield Washer
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 85330-90A06 |
Jar Assy, Windshield Washer
1982-10 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 85330-90A07 |
Jar Assy, Windshield Washer
1983-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85330A — Bush, Windshield Washer Jar | ||||
| 90099-32089 |
Bush, Windshield Washer Jar
1982-10 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 90099-32103 |
Bush, Windshield Washer Jar
1983-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90099-32103 |
Bush, Windshield Washer Jar
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 85333 — Filter, Windshield Washer Jar | ||||
| 85333-60010 |
Filter, Windshield Washer Jar
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 85333-60010 |
Filter, Windshield Washer Jar
1983-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85333A — Filter, Windshield Washer Jar, NO.2 | ||||
| 85333-20020 |
Filter, Windshield Washer Jar, NO.2
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 85333-20020 |
Filter, Windshield Washer Jar, NO.2
1983-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85345 — Nozzle, Windshield Washer | ||||
| 85341-90A02 |
Nozzle, Windshield Washer
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 85341-90A04 |
Nozzle, Windshield Washer
1982-10 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 85341-90A05 |
Nozzle, Windshield Washer
1983-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 85341-90A05 note |
Nozzle, Windshield Washer
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 85341-90A05 |
Nozzle, Windshield Washer
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 85341-90A05 note |
Nozzle, Windshield Washer
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85341-90A08 note |
Nozzle, Windshield Washer
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85341-90A08 note |
Nozzle, Windshield Washer
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 85348 — Joint, Windshield Washer Hose, NO.1 | ||||
| 85348-12250 |
Joint, Windshield Washer Hose, NO.1
1982-01 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 85348-89101 |
Joint, Windshield Washer Hose, NO.1
1980-08 → 1982-01
ended
|
BJ60,FJ60 | — | |
| 85348-89101 |
Joint, Windshield Washer Hose, NO.1
1983-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85355 — Valve, Windshield Washer Hose | ||||
| 85031-30010 |
Valve, Windshield Washer Hose
1982-10 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 85031-90A01 |
Valve, Windshield Washer Hose
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 85031-90A01 |
Valve, Windshield Washer Hose
1983-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT) | ||||
| 90099-33299 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1982-10 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90445-09006 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1983-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90445-09006 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90445-09006 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1982-10 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1983-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1982-10 → 1983-10
ended
|
BJ60,FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1983-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
