Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

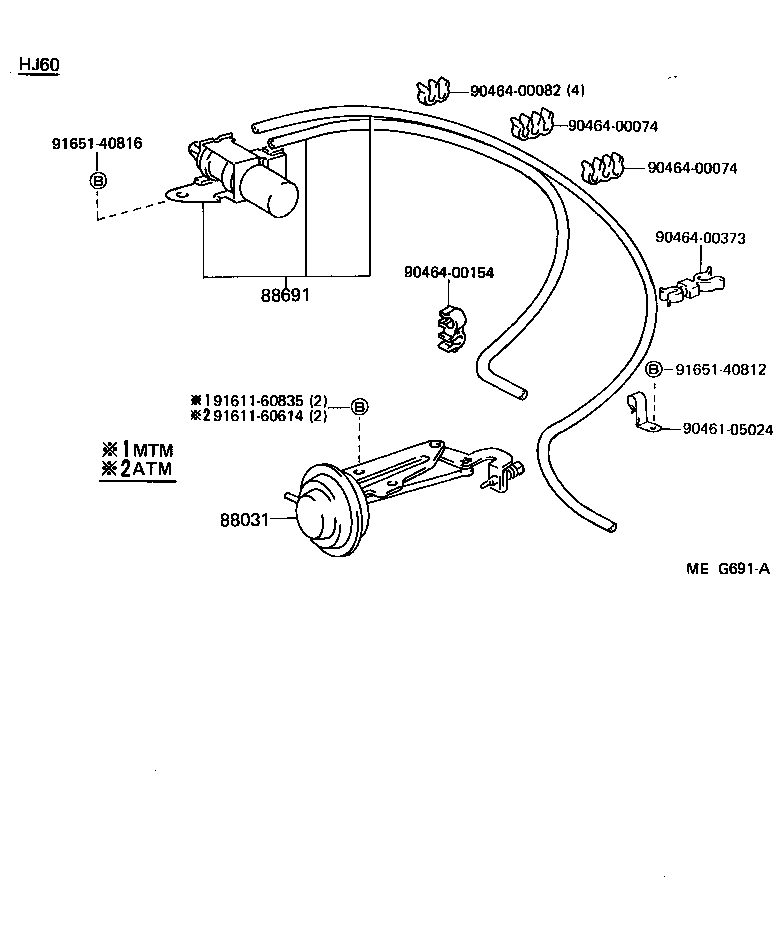

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88031 — Actuator Set, Idle-up | ||||
| 88031-60010 |
Actuator Set, Idle-up
1980-08 → 1986-04
ended
|
FJ60 USA | — | |
| 88031-60030 |
Actuator Set, Idle-up
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 88031-60040 |
Actuator Set, Idle-up
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 88031-60050 |
Actuator Set, Idle-up
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 88691 — Valve, Magnet (FOR IDLE UP DEVICE) | ||||
| 88690-90A00 |
Valve, Magnet (FOR IDLE UP DEVICE)
1980-08 → 1985-04
ended
|
FJ60 USA | — | |
| 88690-90A02 |
Valve, Magnet (FOR IDLE UP DEVICE)
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 88690-90A05 |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 88690-90A09 |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 88690-90A09 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 88690-90A10 |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-04 → 1987-08
ended
|
FJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
