Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

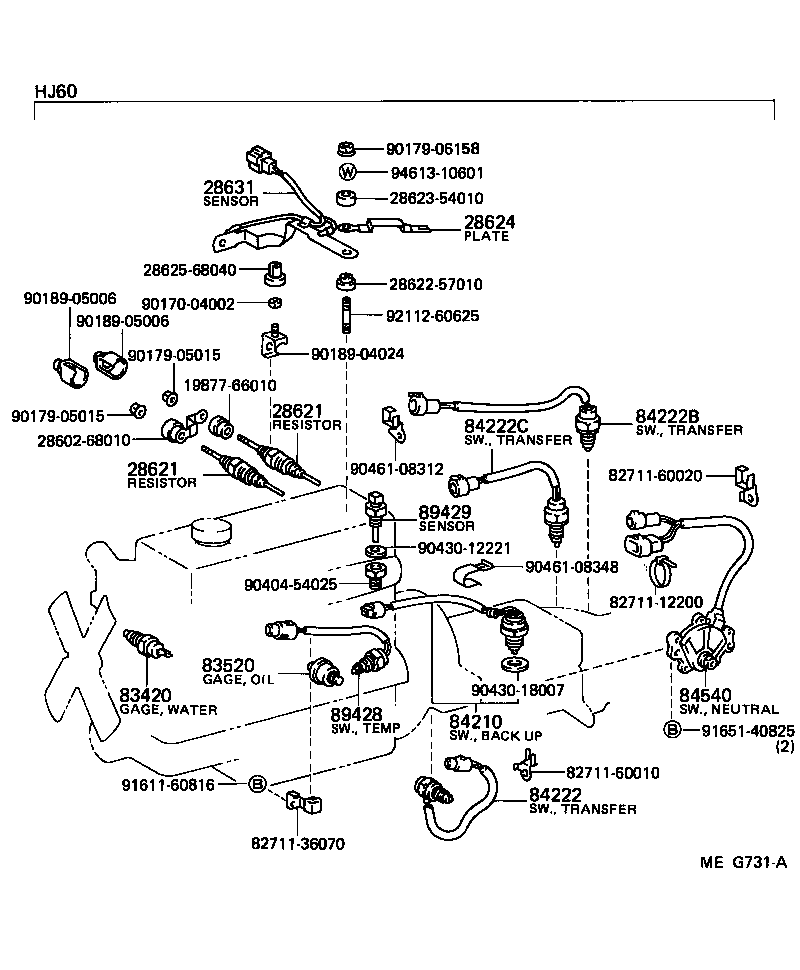

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28621 — Resistor, Glow Plug | ||||
| 28621-57020 |
Resistor, Glow Plug
1981-10 → 1982-01
ended
|
3B BJ60 | — | |
| 28621-57021 |
Resistor, Glow Plug
1982-01 → 1985-10
ended
|
3B BJ60 | — | |
| 28621-64011 |
Resistor, Glow Plug
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 28624 — Plate, Current Sensor | ||||
| 28624-57010 |
Plate, Current Sensor
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 28624-68011 |
Plate, Current Sensor
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 28631 — Sensor, Glow Plug Current | ||||
| 28631-57020 |
Sensor, Glow Plug Current
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 28631-68010 |
Sensor, Glow Plug Current
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 83420 — Gage Assy, Water Temperature Sender | ||||
| 83420-20020 |
Gage Assy, Water Temperature Sender
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 83520 — Gage Assy,Oil Pressure Sender | ||||
| 83520-14021 note |
Gage Assy,Oil Pressure Sender
1980-08 → 1983-01
ended
|
BJ60,FJ60 | — | |
| 83520-55011 note |
Gage Assy,Oil Pressure Sender
1980-08 → 1983-01
ended
|
BJ60,FJ60 | — | |
| 83520-60010 note |
Gage Assy,Oil Pressure Sender
1983-01 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 83520-60020 |
Gage Assy,Oil Pressure Sender
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-60021 |
Switch Assy, Back-up Lamp
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 MTM | — | |
| 84222 — Switch, Transfer Indicator, NO.1 | ||||
| 84222-60020 |
Switch, Transfer Indicator, NO.1
1982-10 → 1983-01
ended
|
BJ60,FJ60 | — | |
| 84222-60021 |
Switch, Transfer Indicator, NO.1
1983-01 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 84222B — Switch, Transfer Indicator, NO.2 | ||||
| 84222-60030 |
Switch, Transfer Indicator, NO.2
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 84222C — Switch, Transfer Indicator, NO.3 | ||||
| 84222-60040 |
Switch, Transfer Indicator, NO.3
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-60020 |
Switch Assy, Neutral Start
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-36010 |
Switch, Temperature Detect, NO.2
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 89429 — Sensor, Oil Temperature | ||||
| 89422-30020 |
Sensor, Oil Temperature
1981-10 → 1987-08
ended
|
BJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
