Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

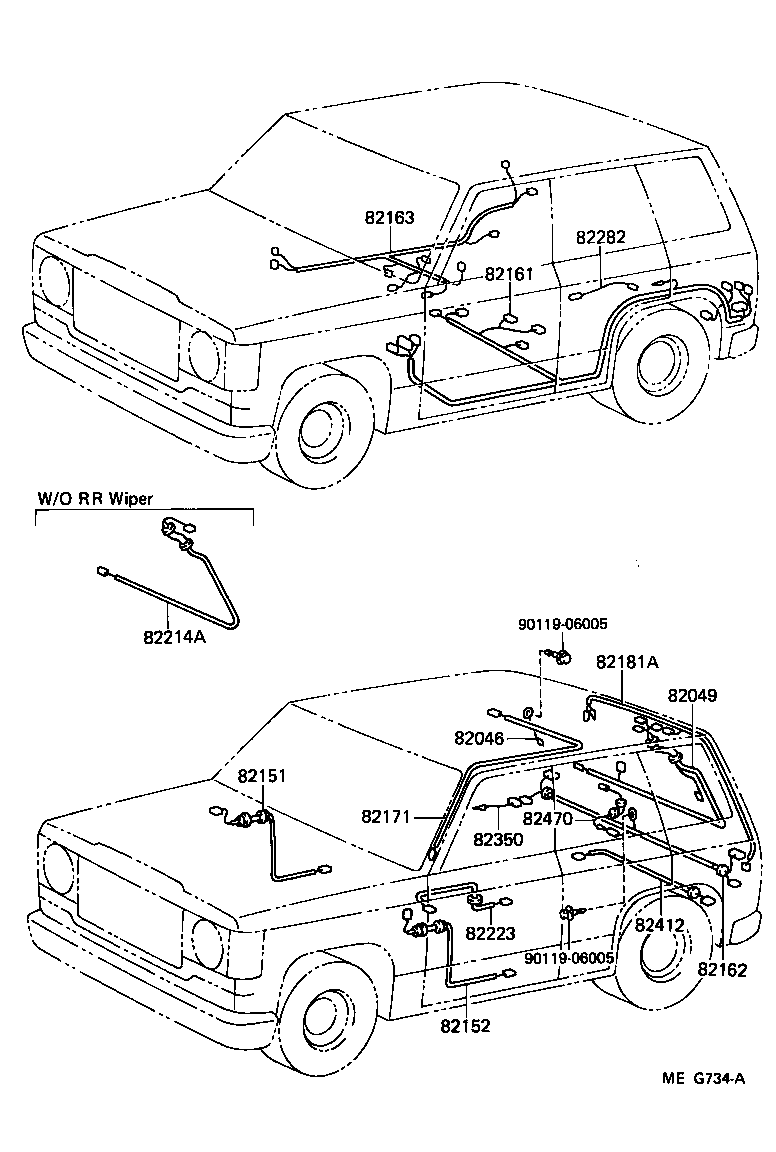

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82046 — Wire Sub-assy, Rear Window Defogger Earth | ||||
| 82046-90A00 note |
Wire Sub-assy, Rear Window Defogger Earth
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82046-90A00 note |
Wire Sub-assy, Rear Window Defogger Earth
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82187-90A00 |
Wire Sub-assy, Rear Window Defogger Earth
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82187-90A00 |
Wire Sub-assy, Rear Window Defogger Earth
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 82049 — Wiring Sub-assy, Rear Wiper | ||||
| 82049-90A00 |
Wiring Sub-assy, Rear Wiper
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82049-90A00 |
Wiring Sub-assy, Rear Wiper
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82184-90A03 |
Wiring Sub-assy, Rear Wiper
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82184-90A03 |
Wiring Sub-assy, Rear Wiper
1985-04 → 1987-02
ended
|
BJ60,FJ60 | — | |
| 82184-90A03 |
Wiring Sub-assy, Rear Wiper
1987-02 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 82184-90A04 |
Wiring Sub-assy, Rear Wiper
1985-10 → 1987-02
ended
|
HJ60 | — | |
| 82151 — Wire, Front Door, RH | ||||
| 82151-90A01 |
Wire, Front Door, RH
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82151-90A01 |
Wire, Front Door, RH
1985-04 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 82151-90A05 |
Wire, Front Door, RH
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 82151-90A05 |
Wire, Front Door, RH
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 82372-90A00 note |
Wire, Front Door, RH
1980-08 → 1983-09
ended
|
FJ60 USA | — | |
| 82372-90A00 note |
Wire, Front Door, RH
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82372-90A00 note |
Wire, Front Door, RH
1983-09 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82372-90A00 note |
Wire, Front Door, RH
1980-08 → 1983-09
ended
|
BJ60 | — | |
| 82152 — Wire, Front Door, LH | ||||
| 82151-90A01 |
Wire, Front Door, LH
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82151-90A01 |
Wire, Front Door, LH
1985-04 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 82151-90A05 |
Wire, Front Door, LH
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 82151-90A05 |
Wire, Front Door, LH
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 82372-90A00 note |
Wire, Front Door, LH
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82372-90A00 note |
Wire, Front Door, LH
1983-09 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82372-90A00 note |
Wire, Front Door, LH
1980-08 → 1983-09
ended
|
FJ60 USA | — | |
| 82372-90A00 note |
Wire, Front Door, LH
1980-08 → 1983-09
ended
|
BJ60 | — | |
| 82161 — Wire, Floor | ||||
| 82161-90A01 |
Wire, Floor
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 82161-90A17 |
Wire, Floor
1985-04 → 1986-04
ended
|
FJ60 | — | |
| 82161-90A19 |
Wire, Floor
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 82161-90A19 |
Wire, Floor
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 82161-90A20 note |
Wire, Floor
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 82161-90A20 note |
Wire, Floor
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 82420-90A01 |
Wire, Floor
1980-08 → 1983-09
ended
|
BJ60 | — | |
| 82420-90A02 |
Wire, Floor
1980-08 → 1985-04
ended
|
FJ60 | — | |
| 82420-90A04 note |
Wire, Floor
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 82420-90A08 note |
Wire, Floor
1980-08 → 1982-10
ended
|
BJ60 | — | |
| 82420-90A15 note |
Wire, Floor
1982-10 → 1985-04
ended
|
FJ60 | — | |
| 82420-90A18 note |
Wire, Floor
1982-10 → 1983-09
ended
|
BJ60 | — | |
| 82420-90A25 note |
Wire, Floor
1983-09 → 1984-11
ended
|
BJ60 | — | |
| 82420-90A26 |
Wire, Floor
1983-09 → 1984-11
ended
|
BJ60 | — | |
| 82162 — Wire, Floor, NO.2 | ||||
| 82162-90A00 |
Wire, Floor, NO.2
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82162-90A00 |
Wire, Floor, NO.2
1985-04 → 1985-09
ended
|
BJ60,FJ60 | — | |
| 82162-90A12 |
Wire, Floor, NO.2
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 82162-90A12 |
Wire, Floor, NO.2
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 82162-90A21 |
Wire, Floor, NO.2
1985-09 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 82410-90A00 |
Wire, Floor, NO.2
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 82410-90A07 |
Wire, Floor, NO.2
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82410-90A07 |
Wire, Floor, NO.2
1981-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82163 — Wire, Floor, NO.3 | ||||
| 82163-90A03 |
Wire, Floor, NO.3
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 82163-90A10 |
Wire, Floor, NO.3
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 82163-90A13 |
Wire, Floor, NO.3
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-90A00 |
Wire, Roof, NO.1
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82171-90A05 |
Wire, Roof, NO.1
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 82171-90A08 note |
Wire, Roof, NO.1
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 82520-90A00 |
Wire, Roof, NO.1
1980-08 → 1982-10
ended
|
BJ60,FJ60 | — | |
| 82520-90A01 |
Wire, Roof, NO.1
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82520-90A01 |
Wire, Roof, NO.1
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82181A — Wire, Luggage Room, NO.2 | ||||
| 82048-90A00 note |
Wire, Luggage Room, NO.2
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 82048-90A01 |
Wire, Luggage Room, NO.2
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 82048-90A02 note |
Wire, Luggage Room, NO.2
1981-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82048-90A02 note |
Wire, Luggage Room, NO.2
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82048-90A03 |
Wire, Luggage Room, NO.2
1981-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82048-90A03 |
Wire, Luggage Room, NO.2
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82182-90A00 |
Wire, Luggage Room, NO.2
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82182-90A00 |
Wire, Luggage Room, NO.2
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 82182-90A01 note |
Wire, Luggage Room, NO.2
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82182-90A01 note |
Wire, Luggage Room, NO.2
1985-04 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 82182-90A02 note |
Wire, Luggage Room, NO.2
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 82182-90A02 note |
Wire, Luggage Room, NO.2
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 82214A — Wire, Lamp | ||||
| 82184-90A02 |
Wire, Lamp
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82184-90A02 |
Wire, Lamp
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 82203-90A00 |
Wire, Lamp
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82203-90A00 |
Wire, Lamp
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82223 — Wire, Switch | ||||
| 82164-90A01 |
Wire, Switch
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 82164-90A02 |
Wire, Switch
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 82164-90A03 note |
Wire, Switch
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 82223-90A01 |
Wire, Switch
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 82282 — Wire, Diff Lock Indicator | ||||
| 82282-90A04 note |
Wire, Diff Lock Indicator
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 82282-90A05 note |
Wire, Diff Lock Indicator
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 82350 — Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR) | ||||
| 82153-90A00 |
Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82153-90A00 |
Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 82350-90A00 |
Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82350-90A00 |
Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82412 — Wire, Fuel Gage | ||||
| 82155-90A00 |
Wire, Fuel Gage
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82155-90A00 |
Wire, Fuel Gage
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 82412-90A00 |
Wire, Fuel Gage
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82412-90A00 |
Wire, Fuel Gage
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 82470 — Wire Assy, License Lamp Feed | ||||
| 82181-90A00 |
Wire Assy, License Lamp Feed
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 82181-90A00 |
Wire Assy, License Lamp Feed
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 82470-90A00 |
Wire Assy, License Lamp Feed
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 82470-90A03 |
Wire Assy, License Lamp Feed
1981-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 82470-90A03 |
Wire Assy, License Lamp Feed
1984-11 → 1985-04
ended
|
FJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
