Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

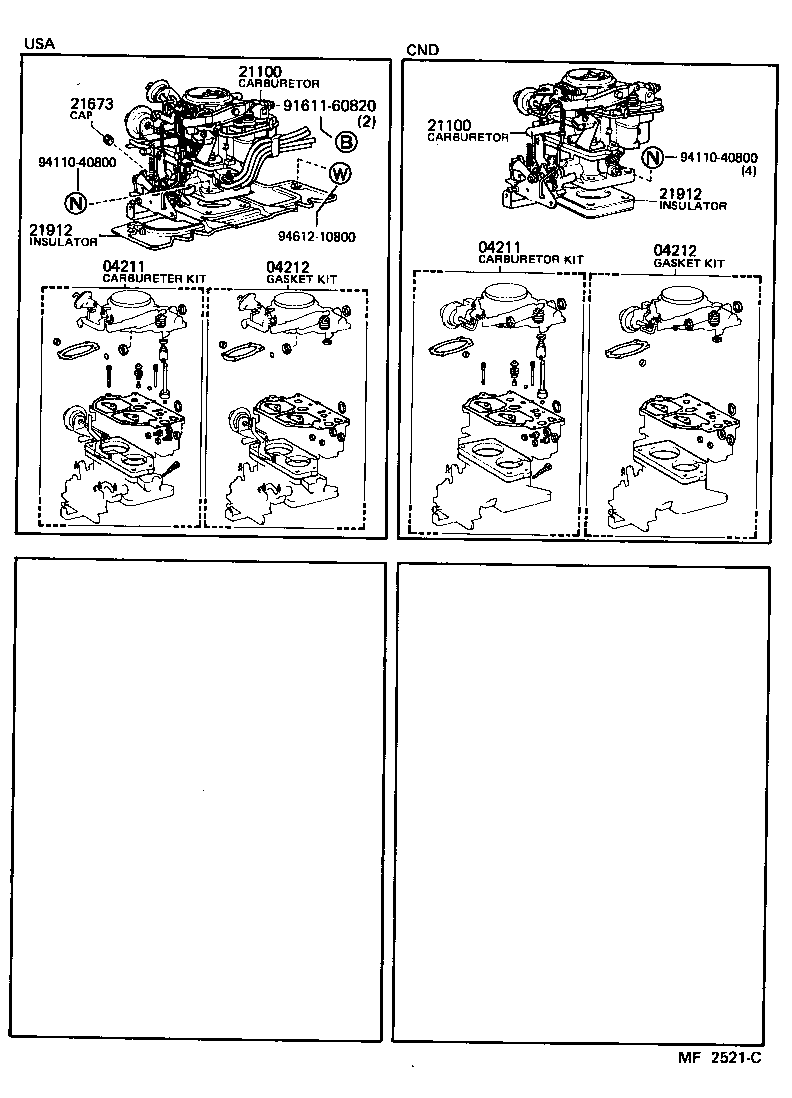

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04211 — Carburetor Kit | ||||
| 04211-61140 |
Carburetor Kit
1980-06 → 1981-10
ended
|
2F FJ60 CND | — | |
| 04211-61170 |
Carburetor Kit
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 04212 — Gasket Kit, Carburetor | ||||
| 04212-61030 |
Gasket Kit, Carburetor
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 21100 — Carburetor Assy | ||||
| 21100-61102 |
Carburetor Assy
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 21100-61140 |
Carburetor Assy
1980-08 → 1981-10
ended
|
2F FJ60 USA | — | |
| 21100-61141 |
Carburetor Assy
1981-10 → 1986-04
ended
|
2F FJ60 | — | |
| 21100-61142 |
Carburetor Assy
1986-04 → 1987-08
ended
|
2F FJ60 | — | |
| 21673 — Cap, Idle Limit | ||||
| 21673-38020 |
Cap, Idle Limit
1980-08 → 1983-05
ended
|
2F FJ60 USA | — | |
| 21912 — Insulator, Carburetor Heat | ||||
| 21912-61020 |
Insulator, Carburetor Heat
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 21912-61032 |
Insulator, Carburetor Heat
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
