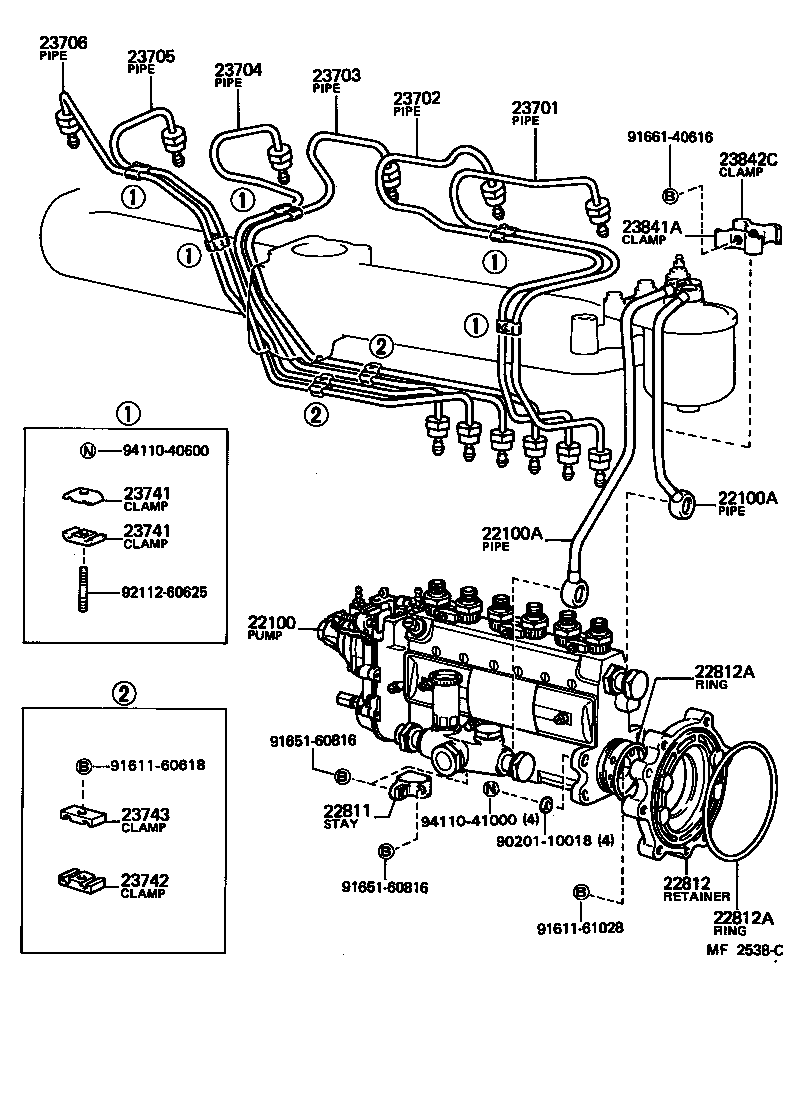

Exploded illustration MF2538C 23706 — PIPE SUB-ASSY, INJECTION, NO.6 (1 parts) 23705 — PIPE SUB-ASSY, INJECTION, NO.5 (1 parts) 23704 — PIPE SUB-ASSY, INJECTION, NO.4 (2 parts) 23703 — PIPE SUB-ASSY, INJECTION, NO.3 (2 parts) 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (2 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (2 parts) 9166140616 — not listed in this catalogue 23842C — CLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP) (1 parts) 23841A — CLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP) (1 parts) 9411040600 — not listed in this catalogue 23741 — CLAMP, INJECTION PIPE, NO.1 (2 parts) 22100A — HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) (5 parts) 23741 — CLAMP, INJECTION PIPE, NO.1 (2 parts) 22100A — HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) (5 parts) 9211260625 — not listed in this catalogue 22100 — PUMP ASSY, INJECTION OR SUPPLY (5 parts) 22812A — RING, O (2 parts) 9165160816 — not listed in this catalogue 9161160618 — not listed in this catalogue 22811 — STAY, INJECTION PUMP, NO.1 (3 parts) 23743 — CLAMP, INJECTION PIPE, NO.3 (1 parts) 9411041000 — not listed in this catalogue 9020110018 — not listed in this catalogue 23742 — CLAMP, INJECTION PIPE, NO.2 (1 parts) 22812 — RETAINER, INJECTION PUMP (1 parts) 9165160816 — not listed in this catalogue 22812A — RING, O (2 parts) 9161161028 — not listed in this catalogue
MF2538C · 19 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
22100 — Pump Assy, Injection OR Supply
22100-58020 Pump Assy, Injection OR Supply
1980-08 → 1982-01 ended
3B BJ60 —
22100-58021 Pump Assy, Injection OR Supply
1982-01 → 1984-11 ended
3B BJ60 —
22100-58022 Pump Assy, Injection OR Supply
1984-11 → 1985-10 ended
3B BJ60 —
22100-68051 Pump Assy, Injection OR Supply
1985-10 → 1987-08 ended
2H HJ60 5F —
22100-68130 Pump Assy, Injection OR Supply
1985-10 → 1987-08 ended
2H HJ60 4FC —
22100A — Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
23801-56040 note Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
1980-08 → 1984-09 ended
3B BJ60 —
23801-56060 note Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
1984-09 → 1985-10 ended
3B BJ60 —
23801-68030 note Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
1985-10 → 1987-08 ended
2H HJ60 —
23802-56040 note Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
1980-08 → 1985-10 ended
3B BJ60 —
23802-68020 note Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
1985-10 → 1987-08 ended
2H HJ60 —
22811 — Stay, Injection Pump, NO.1
22811-56010 Stay, Injection Pump, NO.1
1980-08 → 1982-01 ended
3B BJ60 —
22811-56011 Stay, Injection Pump, NO.1
1982-01 → 1985-10 ended
3B BJ60 —
22811-68010 Stay, Injection Pump, NO.1
1985-10 → 1987-08 ended
2H HJ60 —
22812 — Retainer, Injection Pump
22812-68010 Retainer, Injection Pump
1985-10 → 1987-08 ended
2H HJ60 —
22812A — Ring, O
90301-64004 note Ring, O
1985-10 → 1987-08 ended
2H HJ60 —
90301-99013 note Ring, O
1985-10 → 1987-08 ended
2H HJ60 —
23701 — Pipe Sub-assy, Injection, NO.1
23701-56030 Pipe Sub-assy, Injection, NO.1
1980-08 → 1985-10 ended
3B BJ60 —
23701-68010 Pipe Sub-assy, Injection, NO.1
1985-10 → 1987-08 ended
2H HJ60 —
23702 — Pipe Sub-assy, Injection, NO.2
23702-56030 Pipe Sub-assy, Injection, NO.2
1980-08 → 1985-10 ended
3B BJ60 —
23702-68010 Pipe Sub-assy, Injection, NO.2
1985-10 → 1987-08 ended
2H HJ60 —
23703 — Pipe Sub-assy, Injection, NO.3
23703-56020 Pipe Sub-assy, Injection, NO.3
1980-08 → 1985-10 ended
3B BJ60 —
23703-68010 Pipe Sub-assy, Injection, NO.3
1985-10 → 1987-08 ended
2H HJ60 —
23704 — Pipe Sub-assy, Injection, NO.4
23704-56020 Pipe Sub-assy, Injection, NO.4
1980-08 → 1985-10 ended
3B BJ60 —
23704-68010 Pipe Sub-assy, Injection, NO.4
1985-10 → 1987-08 ended
2H HJ60 —
23705 — Pipe Sub-assy, Injection, NO.5
23705-68010 Pipe Sub-assy, Injection, NO.5
1985-10 → 1987-08 ended
2H HJ60 —
23706 — Pipe Sub-assy, Injection, NO.6
23706-68010 Pipe Sub-assy, Injection, NO.6
1985-10 → 1987-08 ended
2H HJ60 —
23741 — Clamp, Injection Pipe, NO.1
23741-48010 Clamp, Injection Pipe, NO.1
1985-10 → 1987-08 ended
2H HJ60 —
23741-56010 Clamp, Injection Pipe, NO.1
1980-08 → 1985-10 ended
3B BJ60 —
23742 — Clamp, Injection Pipe, NO.2
23742-46010 Clamp, Injection Pipe, NO.2
1985-10 → 1987-08 ended
2H HJ60 —
23743 — Clamp, Injection Pipe, NO.3
23741-46010 Clamp, Injection Pipe, NO.3
1985-10 → 1987-08 ended
2H HJ60 —
23841A — Clamp, Fuel Pipe, NO.1(FOR INJECTION PUMP)
23841-56010 Clamp, Fuel Pipe, NO.1(FOR INJECTION PUMP)
1985-10 → 1987-08 ended
2H HJ60 —
23842C — Clamp, Fuel Pipe, NO.2(FOR INJECTION PUMP)
23842-56010 Clamp, Fuel Pipe, NO.2(FOR INJECTION PUMP)
1985-10 → 1987-08 ended
2H HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
