Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

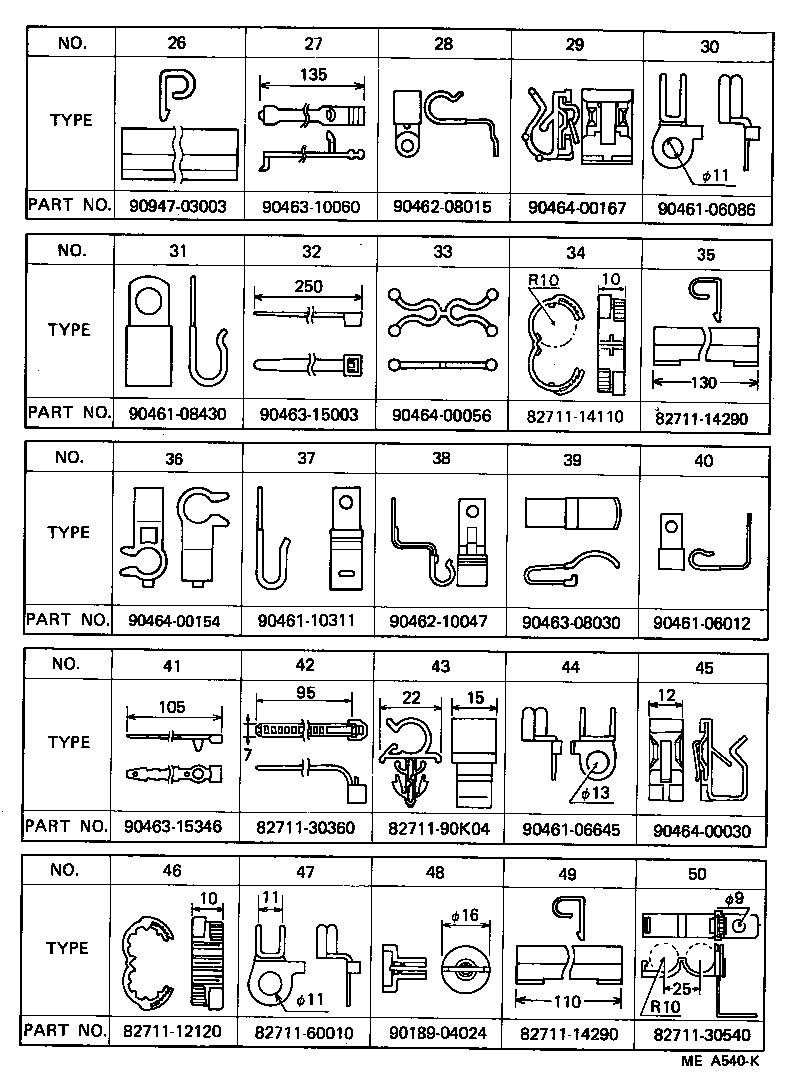

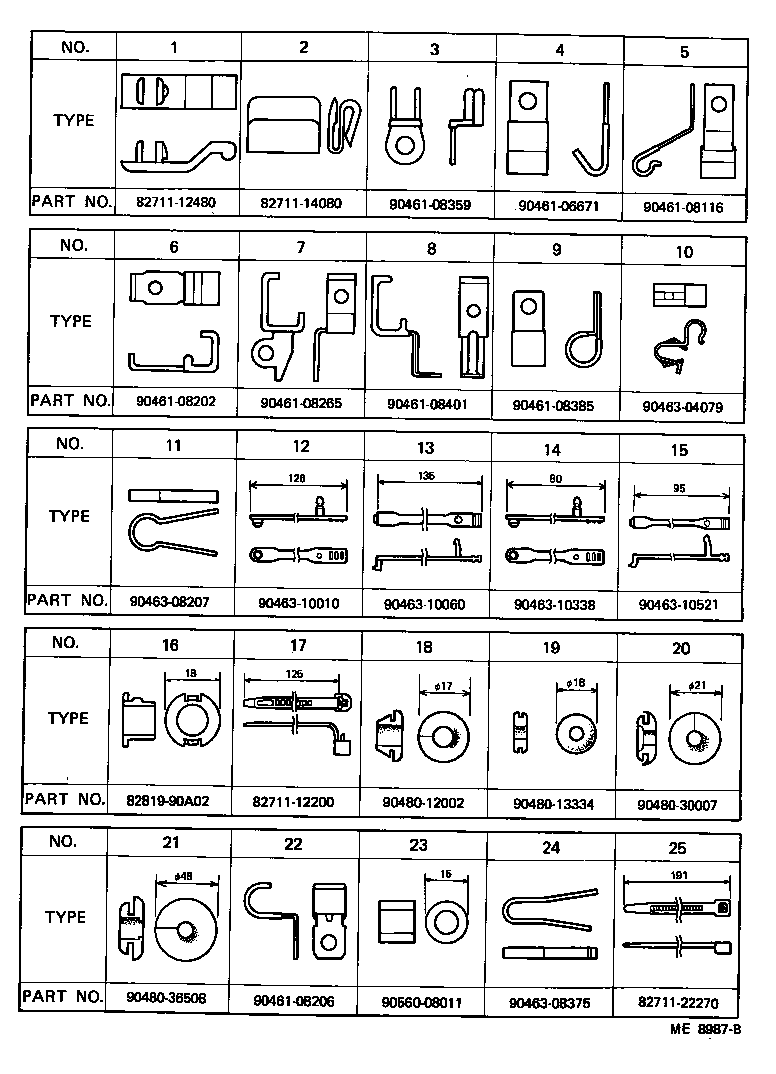

Wiring & Clamp
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82002 | Cable, Battery TO Magnet Switch |
| 82002A | Cable, Magnet Switch TO Winch |
| 82002B | Cable, Winch TO Ground |
| 82046 | Wire Sub-assy, Rear Window Defogger Earth |
| 82046A | Wire Sub-assy, Body Ground, NO.1 |
| 82049 | Wiring Sub-assy, Rear Wiper |
| 82112 | Wire, Engine Room, NO.2 |
| 82121 | Wire, Engine |
| 82124 | Wire, Engine, NO.4 |
| 82125 | Wire, Transmission |
| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |
| 82134 | Wire, Cowl, NO.4 |
| 82141 | Wire, Instrument Panel |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82165 | Wire, Frame, NO.2 |
| 82166 | Wire, Console Box |
| 82171 | Wire, Roof, NO.1 |
| 82181A | Wire, Luggage Room, NO.2 |
| 82203 | Wire Sub-assy, Alternator |
| 82210C | Fusible Link |
| 82214A | Wire, Lamp |
| 82223 | Wire, Switch |
| 82241C | Wire, Relay |
| 82282 | Wire, Diff Lock Indicator |
| 82345 | Diode |
| 82350 | Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR) |
| 82376 | Wire, Motor Antenna |
| 82412 | Wire, Fuel Gage |
| 82470 | Wire Assy, License Lamp Feed |
| 82670 | Block Assy, Junction, NO.1 |
| 82672 | Cover, Junktion Block |
| 82823 | Cap, Terminal, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
