Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62 · catalogue 791430 · United States

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

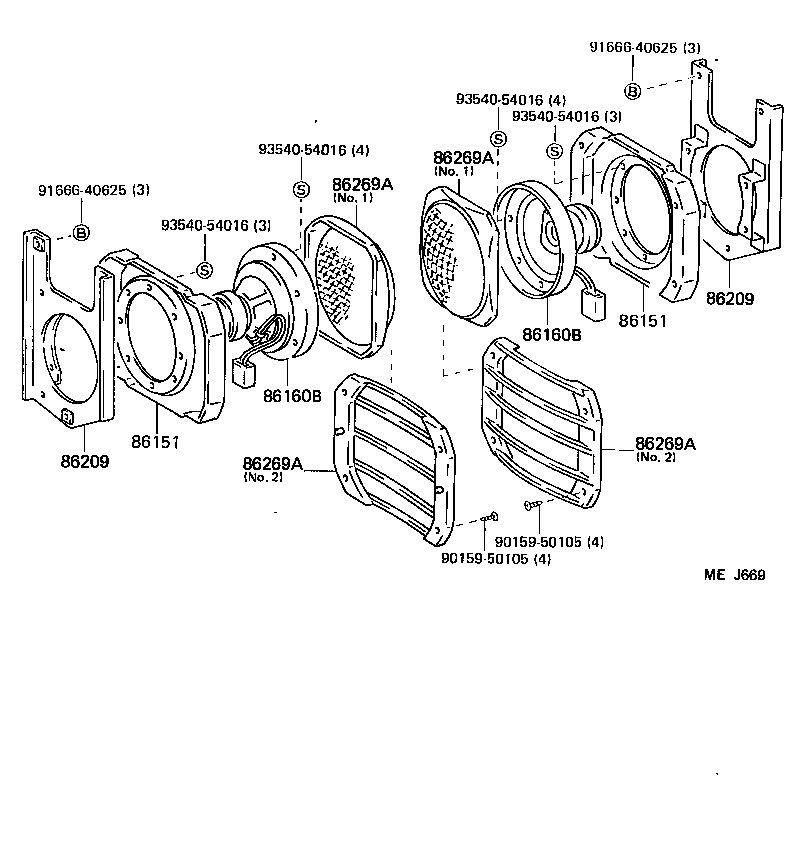

Exploded illustration MEJ669 9166640625 — not listed in this catalogue 9354054016 — not listed in this catalogue 9354054016 — not listed in this catalogue 9354054016 — not listed in this catalogue 86269A — GRILLE, SPEAKER (2 parts) 86269A — GRILLE, SPEAKER (2 parts) 9166640625 — not listed in this catalogue 9354054016 — not listed in this catalogue 86209 — BRACKET SUB-ASSY, SPEAKER (1 parts) 86151 — BOX, SPEAKER (1 parts) 86160B — SPEAKER ASSY, REAR (1 parts) 86160B — SPEAKER ASSY, REAR (1 parts) 86151 — BOX, SPEAKER (1 parts) 86269A — GRILLE, SPEAKER (2 parts) 86209 — BRACKET SUB-ASSY, SPEAKER (1 parts) 86269A — GRILLE, SPEAKER (2 parts) 9015950105 — not listed in this catalogue 9015950105 — not listed in this catalogue
MEJ669 · 10 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
5 parts on this figure
Part number Description Fitment Price
86151 — Box, Speaker
86151-90K01 Box, Speaker
1987-08 → 1990-01 ended
FJ62 —
86160B — Speaker Assy, Rear
86160-90K02 Speaker Assy, Rear
1987-08 → 1990-01 ended
FJ62 —
86209 — Bracket Sub-assy, Speaker
86209-90A00 Bracket Sub-assy, Speaker
1987-08 → 1990-01 ended
FJ62 —
86269A — Grille, Speaker
86269-90K00 note Grille, Speaker
1987-08 → 1990-01 ended
FJ62 —
86269-90K01 note Grille, Speaker
1987-08 → 1990-01 ended
FJ62 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
