Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62 · catalogue 791430 · United States

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 2 illustrations

Illustrations

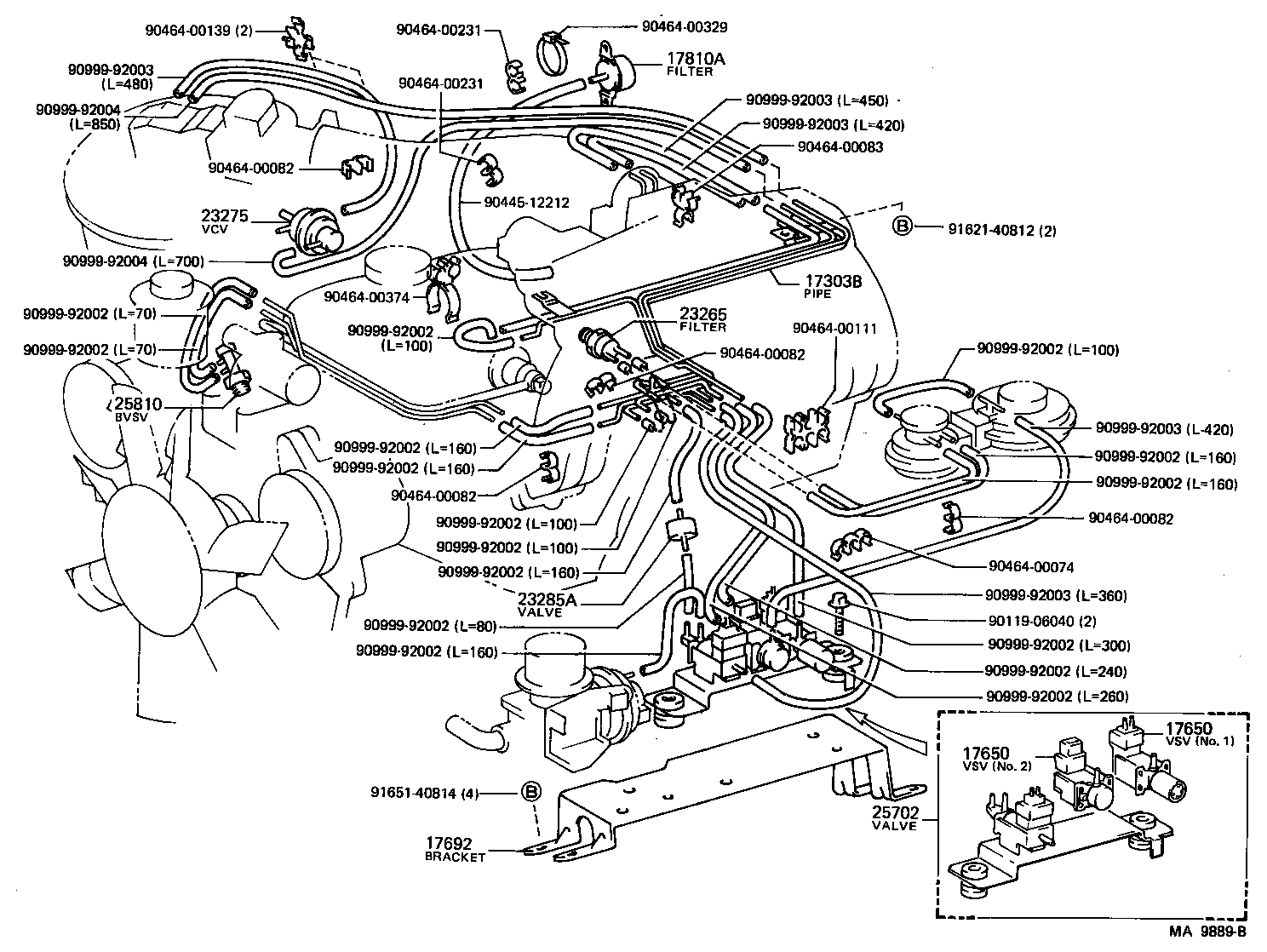

Figure MA9504B MA9504B 1987-08 → — Figure MA9889B MA9889B 1987-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
17692 Bracket, Vacuum Control Valve, NO.2
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23285A Valve, Check, NO.1
25702 Valve Set, Emission Control, NO.2
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
