Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62 · catalogue 791430 · United States

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

38 part groups · 3 illustrations

Illustrations

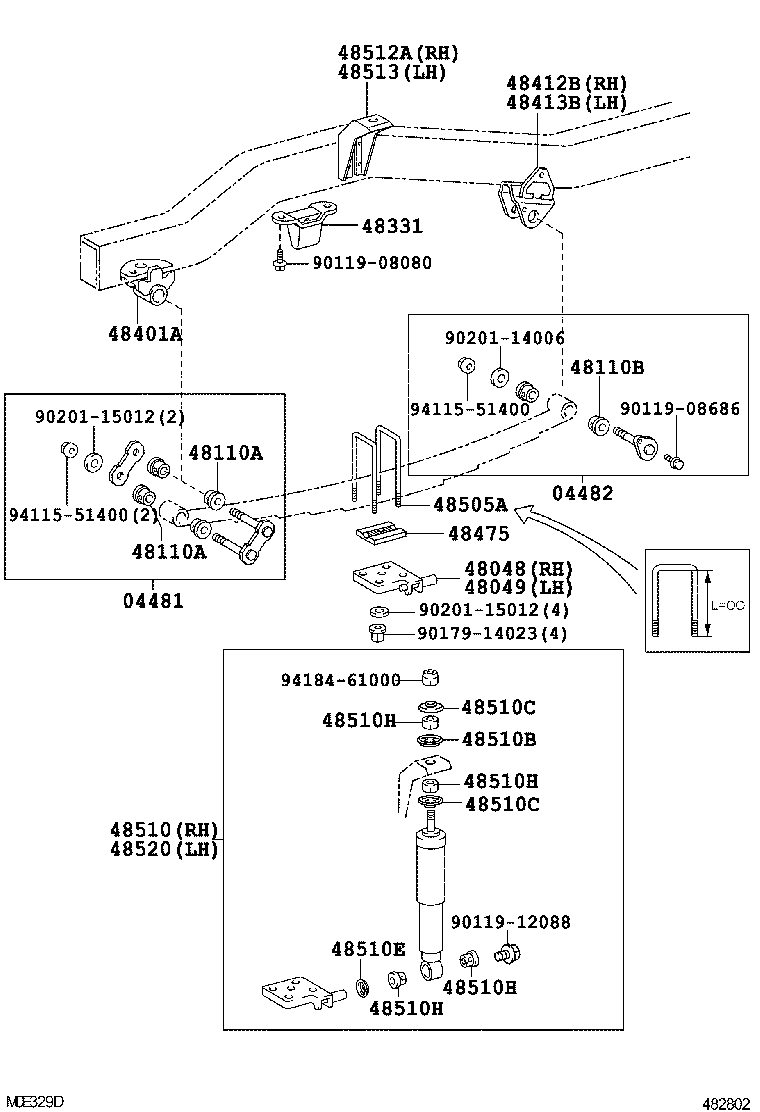

Figure MCE328C MCE328C 1987-08 → — Figure 482802 482802 1987-08 → — Figure MCF459A MCF459A 1987-08 → —

Part groups

PNCDescription
04481 Shackle Kit, Front Spring
04482 Pin Kit, Front Spring
48048 Seat Sub-assy, Spring, RH
48049 Seat Sub-assy, Spring, LH
48110 Spring Assy, Front, RH
48110A Bush(FOR FRONT SPRING SHACKLE)
48110B Bush(FOR FRONT SPRING PIN)
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48120 Spring Assy, Front, LH
48147 Bolt, Front Spring, Center
48252D Silencer
48331 Bumper, Front Spring, NO.1
48401A Bracket Sub-assy, Spring, NO.1
48412B Bracket, Spring, NO.2 RH
48413B Bracket, Spring, NO.2 LH
48475 Plate, Distance(FOR FRONT)
48505A Bolt, U(FOR FRONT SPRING)
48510 Absorber Assy, Shock, Front RH
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510E Washer, Front Shock Absorber Cushion, NO.2
48510H Bush(FOR FRONT SHOCK ABSORBER)
48512A Bracket, Front Shock Absorber, Upper RH
48513 Bracket, Front Shock Absorber, Upper LH
48520 Absorber Assy, Shock, Front LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817C Collar(FOR STABILIZER BAR)
48817F Nut(FOR FRONT STABILIZER BAR)
48823 Cover, Stabilizer Link(FOR FRONT)
48825 Bracket, Stabilizer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
