Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62 · catalogue 791430 · United States
Discontinued model
Data version 1990-01

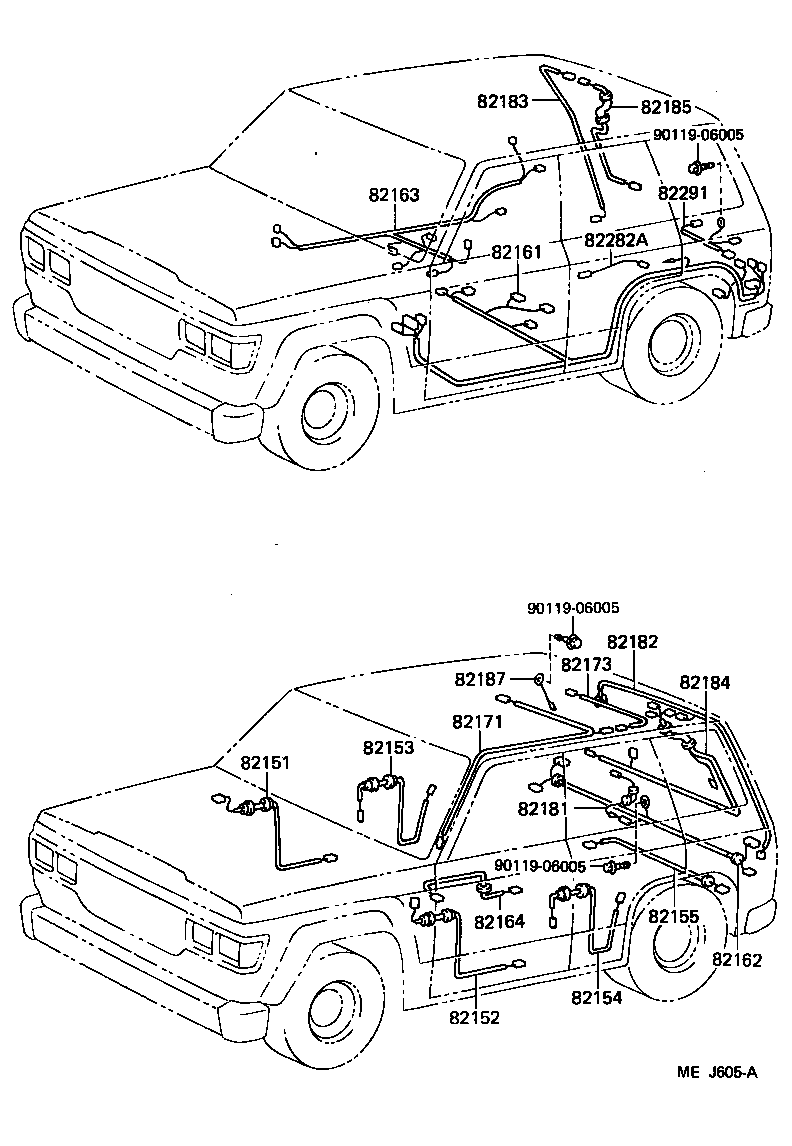

Wiring & Clamp
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82121 | Wire, Engine |
| 82124 | Wire, Engine, NO.4 |
| 82125 | Wire, Transmission |
| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |
| 82141 | Wire, Instrument Panel |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82155 | Wire, Center Piller, NO.1 |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82164 | Wire, Frame |
| 82166 | Wire, Console Box |
| 82171 | Wire, Roof, NO.1 |
| 82173 | Wire, Roof, NO.3 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82187 | Wire, Rear Window, NO.2 |
| 82210C | Fusible Link |
| 82282A | Wire, Indicator (FOR DIFF LOCK) |
| 82291 | Wiring, TO Solenoid |
| 82345 | Diode |
| 82670 | Block Assy, Junction, NO.1 |
| 82821A | Cover, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
