Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

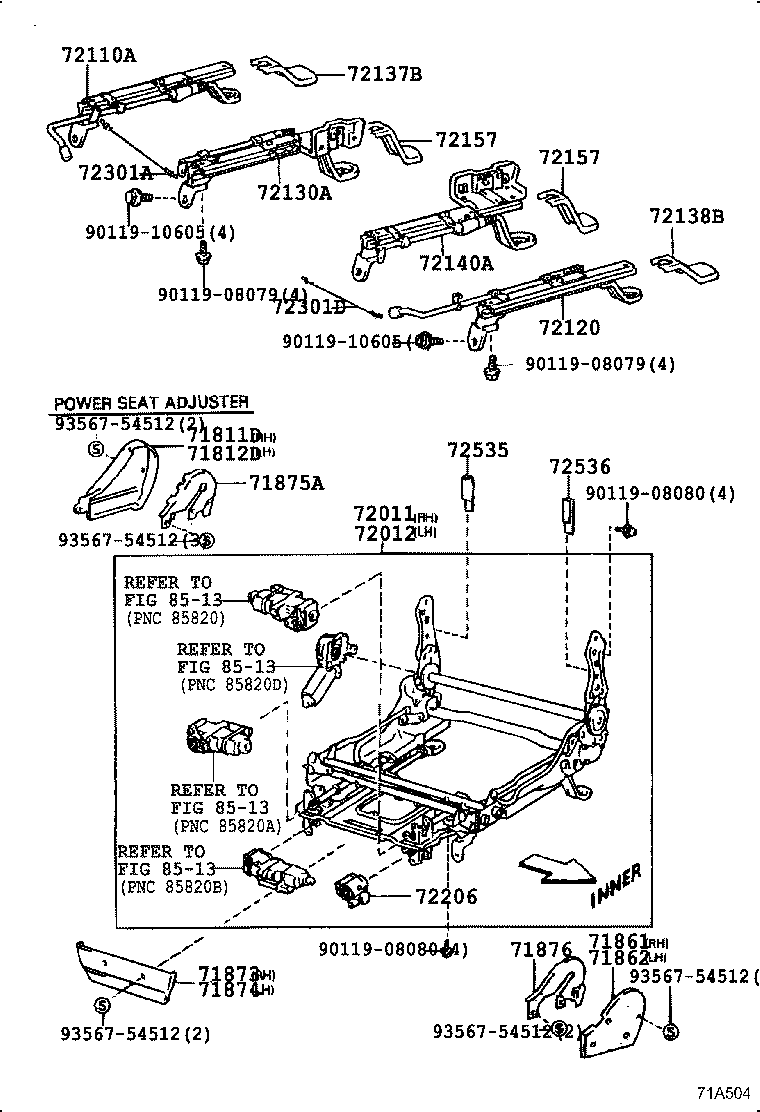

Exploded illustration 71A504 72110A — TRACK ASSY, FRONT SEAT, OUTER RH (4 parts) 72137B — COVER, SEAT TRACK, RH (8 parts) 72157 — COVER, SEAT TRACK BRACKET, INNER (9 parts) 72157 — COVER, SEAT TRACK BRACKET, INNER (9 parts) 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (2 parts) 72130A — TRACK ASSY, FRONT SEAT, INNER RH (4 parts) 72138B — COVER, SEAT TRACK, LH (8 parts) 9011910605 — not listed in this catalogue 72140A — TRACK ASSY, FRONT SEAT,INNER LH (4 parts) 9011908079 — not listed in this catalogue 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (2 parts) 72120 — TRACK ASSY, FRONT SEAT, OUTER LH (4 parts) 9011910605 — not listed in this catalogue 9011908079 — not listed in this catalogue 9356754512 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (8 parts) 72535 — GUIDE, RECLINING PAWL, RH (1 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (8 parts) 72536 — GUIDE, RECLINING PAWL, LH (1 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (3 parts) 9011908080 — not listed in this catalogue 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (3 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (2 parts) 9356754512 — not listed in this catalogue 72206 — HOUSING SUB-ASSY, POWER SEAT, NO.2 (1 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (9 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (3 parts) 9011908080 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (9 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 9356754512 — not listed in this catalogue 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 9356754512 — not listed in this catalogue 9356754512 — not listed in this catalogue 8513 — not listed in this catalogue 8513 — not listed in this catalogue 8513 — not listed in this catalogue 8513 — not listed in this catalogue
71A504 · 23 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-12170-13 note Shield, Front Seat Cushion, RH
1990-01 → 1992-08 ended
FJ80 —
71811-12170-16 note Shield, Front Seat Cushion, RH
1990-01 → 1992-08 ended
FJ80 —
71811-60010-B0 note Shield, Front Seat Cushion, RH
1992-08 → 1998-01 ended
FZJ80 —
71811-60010-E0 note Shield, Front Seat Cushion, RH
1992-08 → 1995-01 ended
FZJ80 —
71811-60010-E1 note Shield, Front Seat Cushion, RH
1995-01 → 1998-01 ended
FZJ80 —
71811-60030-B0 note Shield, Front Seat Cushion, RH
1992-08 → 1998-01 ended
FZJ80 —
71811-60030-E0 note Shield, Front Seat Cushion, RH
1992-08 → 1995-01 ended
FZJ80 —
71811-60030-E1 note Shield, Front Seat Cushion, RH
1995-01 → 1998-01 ended
FZJ80 —
71812D — Shield, Front Seat Cushion, LH
71812-12140-13 note Shield, Front Seat Cushion, LH
1990-01 → 1992-08 ended
FJ80 —
71812-12140-16 note Shield, Front Seat Cushion, LH
1990-01 → 1992-08 ended
FJ80 —
71812-60010-B0 note Shield, Front Seat Cushion, LH
1992-08 → 1998-01 ended
FZJ80 —
71812-60010-E0 note Shield, Front Seat Cushion, LH
1992-08 → 1995-01 ended
FZJ80 —
71812-60010-E1 note Shield, Front Seat Cushion, LH
1995-01 → 1998-01 ended
FZJ80 —
71812-60030-B0 note Shield, Front Seat Cushion, LH
1992-08 → 1998-01 ended
FZJ80 —
71812-60030-E0 note Shield, Front Seat Cushion, LH
1992-08 → 1995-01 ended
FZJ80 —
71812-60030-E1 note Shield, Front Seat Cushion, LH
1995-01 → 1998-01 ended
FZJ80 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-60010-03 note Shield, Front Seat Cushion, Inner RH
1990-01 → 1992-08 ended
FJ80 —
71861-60010-06 note Shield, Front Seat Cushion, Inner RH
1990-01 → 1992-08 ended
FJ80 —
71861-60020-B0 note Shield, Front Seat Cushion, Inner RH
1992-08 → 1998-01 ended
FZJ80 —
71861-60020-E0 note Shield, Front Seat Cushion, Inner RH
1992-08 → 1995-01 ended
FZJ80 —
71861-60020-E1 note Shield, Front Seat Cushion, Inner RH
1995-01 → 1998-01 ended
FZJ80 —
71861-60030-B0 note Shield, Front Seat Cushion, Inner RH
1992-08 → 1995-01 ended
FZJ80 —
71861-60030-B0 note Shield, Front Seat Cushion, Inner RH
1995-01 → 1998-01 ended
FZJ80 —
71861-60030-E0 note Shield, Front Seat Cushion, Inner RH
1992-08 → 1995-01 ended
FZJ80 —
71861-60030-E1 note Shield, Front Seat Cushion, Inner RH
1995-01 → 1998-01 ended
FZJ80 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-60010-03 note Shield, Front Seat Cushion, Inner LH
1990-01 → 1992-08 ended
FJ80 —
71862-60010-06 note Shield, Front Seat Cushion, Inner LH
1990-01 → 1992-08 ended
FJ80 —
71862-60020-B0 note Shield, Front Seat Cushion, Inner LH
1992-08 → 1998-01 ended
FZJ80 —
71862-60020-E0 note Shield, Front Seat Cushion, Inner LH
1992-08 → 1995-01 ended
FZJ80 —
71862-60020-E1 note Shield, Front Seat Cushion, Inner LH
1995-01 → 1998-01 ended
FZJ80 —
71862-60030-B0 note Shield, Front Seat Cushion, Inner LH
1992-08 → 1995-01 ended
FZJ80 —
71862-60030-B0 note Shield, Front Seat Cushion, Inner LH
1995-01 → 1998-01 ended
FZJ80 —
71862-60030-E0 note Shield, Front Seat Cushion, Inner LH
1992-08 → 1995-01 ended
FZJ80 —
71862-60030-E1 note Shield, Front Seat Cushion, Inner LH
1995-01 → 1998-01 ended
FZJ80 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-60010 Shield, Front Seat Cushion, Lower RH
1992-08 → 1998-01 ended
FZJ80 —
71874 — Shield, Front Seat Cushion, Lower LH
71873-60010 Shield, Front Seat Cushion, Lower LH
1992-08 → 1998-01 ended
FZJ80 —
71875A — Cover, Reclining Adjuster Inside, RH
71875-60010-B0 note Cover, Reclining Adjuster Inside, RH
1992-08 → 1998-01 ended
FZJ80 —
71875-60010-E0 note Cover, Reclining Adjuster Inside, RH
1992-08 → 1995-01 ended
FZJ80 —
71875-60010-E1 note Cover, Reclining Adjuster Inside, RH
1995-01 → 1998-01 ended
FZJ80 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-60010-B0 note Cover, Reclining Adjuster Inside, LH
1992-08 → 1998-01 ended
FZJ80 —
71876-60010-E0 note Cover, Reclining Adjuster Inside, LH
1992-08 → 1995-01 ended
FZJ80 —
71876-60010-E1 note Cover, Reclining Adjuster Inside, LH
1995-01 → 1998-01 ended
FZJ80 —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72010-60020 Adjuster Sub-assy, Front Seat, Outer RH
1992-08 → 1995-01 ended
FZJ80 —
72010-60021 Adjuster Sub-assy, Front Seat, Outer RH
1995-01 → 1996-08 ended
FZJ80 —
72010-60110 Adjuster Sub-assy, Front Seat, Outer RH
1996-08 → 1998-01 ended
FZJ80 —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72020-60020 Adjuster Sub-assy, Front Seat, Outer LH
1992-08 → 1995-01 ended
FZJ80 —
72020-60021 Adjuster Sub-assy, Front Seat, Outer LH
1995-01 → 1998-01 ended
FZJ80 —
72110A — Track Assy, Front Seat, Outer RH
72110-60040 Track Assy, Front Seat, Outer RH
1990-01 → 1992-08 ended
FJ80 —
72110-60041 Track Assy, Front Seat, Outer RH
1992-08 → 1995-01 ended
FZJ80 —
72110-60042 Track Assy, Front Seat, Outer RH
1995-01 → 1995-09 ended
FZJ80 —
72110-60043 Track Assy, Front Seat, Outer RH
1995-09 → 1998-01 ended
FZJ80 —
72120 — Track Assy, Front Seat, Outer LH
72120-60020 Track Assy, Front Seat, Outer LH
1990-01 → 1992-08 ended
FJ80 —
72120-60021 Track Assy, Front Seat, Outer LH
1992-08 → 1995-01 ended
FZJ80 —
72120-60022 Track Assy, Front Seat, Outer LH
1995-01 → 1995-09 ended
FZJ80 —
72120-60023 Track Assy, Front Seat, Outer LH
1995-09 → 1998-01 ended
FZJ80 —
72130A — Track Assy, Front Seat, Inner RH
72130-60030 Track Assy, Front Seat, Inner RH
1990-01 → 1992-08 ended
FJ80 —
72130-60070 Track Assy, Front Seat, Inner RH
1992-08 → 1995-01 ended
FZJ80 —
72130-60071 Track Assy, Front Seat, Inner RH
1995-01 → 1995-09 ended
FZJ80 —
72130-60072 Track Assy, Front Seat, Inner RH
1995-09 → 1998-01 ended
FZJ80 —
72137B — Cover, Seat Track, RH
72137-60010-03 note Cover, Seat Track, RH
1990-01 → 1995-01 ended
FJ80,FZJ80 —
72137-60010-06 note Cover, Seat Track, RH
1990-01 → 1995-01 ended
FJ80,FZJ80 —
72137-60010-03 note Cover, Seat Track, RH
1992-08 → 1995-01 ended
FZJ80 —
72137-60010-06 note Cover, Seat Track, RH
1992-08 → 1995-01 ended
FZJ80 —
72137-60011-B0 note Cover, Seat Track, RH
1995-01 → 1995-09 ended
FZJ80 —
72137-60011-E0 note Cover, Seat Track, RH
1995-01 → 1995-09 ended
FZJ80 —
72137-60012-B0 note Cover, Seat Track, RH
1995-09 → 1998-01 ended
FZJ80 —
72137-60012-E0 note Cover, Seat Track, RH
1995-09 → 1998-01 ended
FZJ80 —
72138B — Cover, Seat Track, LH
72138-60010-03 note Cover, Seat Track, LH
1990-01 → 1995-01 ended
FJ80,FZJ80 —
72138-60010-06 note Cover, Seat Track, LH
1990-01 → 1995-01 ended
FJ80,FZJ80 —
72138-60010-03 note Cover, Seat Track, LH
1992-08 → 1995-01 ended
FZJ80 —
72138-60010-06 note Cover, Seat Track, LH
1992-08 → 1995-01 ended
FZJ80 —
72138-60011-B0 note Cover, Seat Track, LH
1995-01 → 1995-09 ended
FZJ80 —
72138-60011-E0 note Cover, Seat Track, LH
1995-01 → 1995-09 ended
FZJ80 —
72138-60012-B0 note Cover, Seat Track, LH
1995-09 → 1998-01 ended
FZJ80 —
72138-60012-E0 note Cover, Seat Track, LH
1995-09 → 1998-01 ended
FZJ80 —
72140A — Track Assy, Front Seat,Inner LH
72140-60030 Track Assy, Front Seat,Inner LH
1990-01 → 1992-08 ended
FJ80 —
72140-60090 Track Assy, Front Seat,Inner LH
1992-08 → 1995-01 ended
FZJ80 —
72140-60091 Track Assy, Front Seat,Inner LH
1995-01 → 1995-09 ended
FZJ80 —
72140-60092 Track Assy, Front Seat,Inner LH
1995-09 → 1998-01 ended
FZJ80 —
72157 — Cover, Seat Track Bracket, Inner
72157-60010-03 note Cover, Seat Track Bracket, Inner
1990-01 → 1992-06 ended
FJ80 —
72157-60010-06 note Cover, Seat Track Bracket, Inner
1990-01 → 1992-06 ended
FJ80 —
72157-60040-B0 note Cover, Seat Track Bracket, Inner
1992-06 → 1995-09 ended
FJ80,FZJ80 —
72157-60040-E0 note Cover, Seat Track Bracket, Inner
1992-06 → 1995-01 ended
FJ80,FZJ80 —
72157-60040-B0 note Cover, Seat Track Bracket, Inner
1992-08 → 1995-09 ended
FZJ80 —
72157-60040-E0 note Cover, Seat Track Bracket, Inner
1992-08 → 1995-01 ended
FZJ80 —
72157-60040-E1 note Cover, Seat Track Bracket, Inner
1995-01 → 1995-09 ended
FZJ80 —
72157-60041-B0 note Cover, Seat Track Bracket, Inner
1995-09 → 1998-01 ended
FZJ80 —
72157-60041-E1 note Cover, Seat Track Bracket, Inner
1995-09 → 1998-01 ended
FZJ80 —
72206 — Housing Sub-assy, Power Seat, NO.2
72206-30040 Housing Sub-assy, Power Seat, NO.2
1992-08 → 1998-01 ended
FZJ80 —
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-60020 Wire Sub-assy, Seat Track Equalizing, RH
1990-01 → 1998-01 ended
FJ80,FZJ80 —
72301-60020 Wire Sub-assy, Seat Track Equalizing, RH
1992-08 → 1998-01 ended
FZJ80 —
72301D — Wire Sub-assy, Seat Track Equalizing, LH
72301-60020 Wire Sub-assy, Seat Track Equalizing, LH
1990-01 → 1998-01 ended
FJ80,FZJ80 —
72301-60020 Wire Sub-assy, Seat Track Equalizing, LH
1992-08 → 1998-01 ended
FZJ80 —
72535 — Guide, Reclining Pawl, RH
72535-60030 Guide, Reclining Pawl, RH
1995-01 → 1998-01 ended
FZJ80 —
72536 — Guide, Reclining Pawl, LH
72536-60010 Guide, Reclining Pawl, LH
1995-01 → 1998-01 ended
FZJ80 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
