Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · United States
Discontinued model
Data version 1998-01

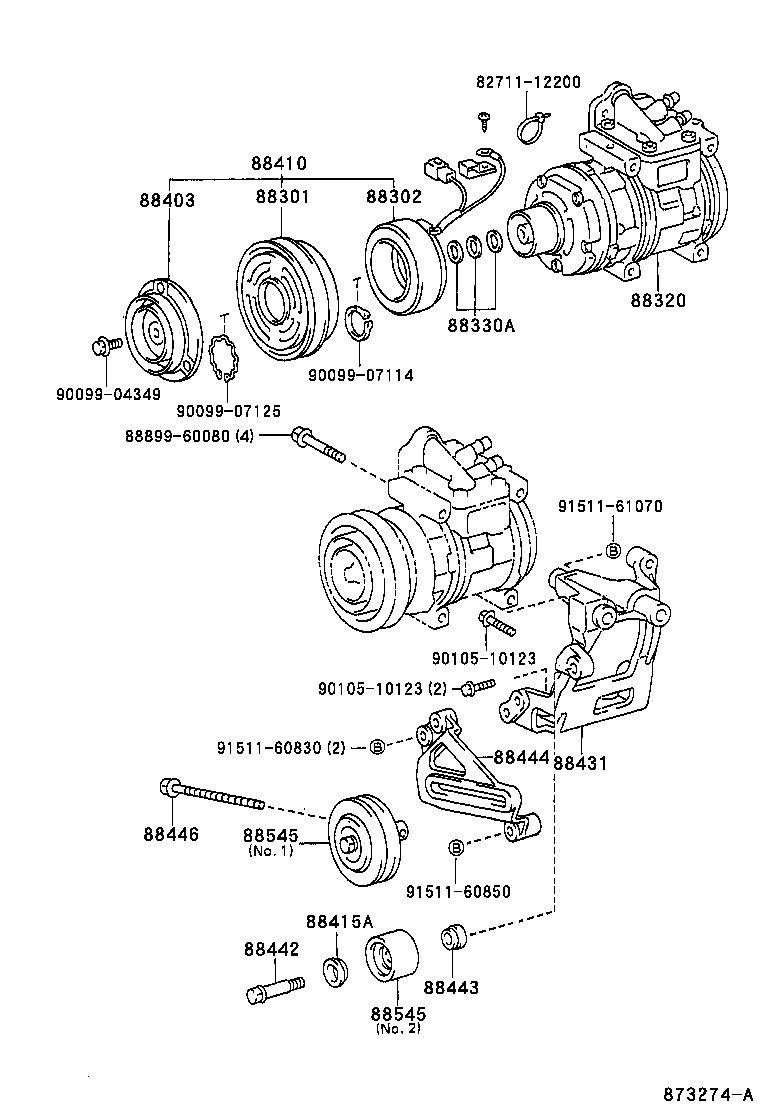

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88301 — Rotor Sub-assy, Magnet Clutch | ||||
| 88412-22070 |
Rotor Sub-assy, Magnet Clutch
1992-08 → 1998-01
ended
|
FZJ80 | — | |
| 88302 — Stator Sub-assy, Magnet Clutch | ||||
| 88411-26040 |
Stator Sub-assy, Magnet Clutch
1993-05 → 1998-01
ended
|
FZJ80 | — | |
| 88411-26050 |
Stator Sub-assy, Magnet Clutch
1992-08 → 1993-05
ended
|
FZJ80 | — | |
| 88320 — Compressor Assy, Cooler | ||||
| 88320-60320 |
Compressor Assy, Cooler
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88320-60490 |
Compressor Assy, Cooler
1992-08 → 1993-05
ended
|
FZJ80 | — | |
| 88320-60580 |
Compressor Assy, Cooler
1993-05 → 1998-01
ended
|
FZJ80 | — | |
| 88330A — Washer (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
Washer (FOR MAGNET CLUTCH)
1990-01 → 1998-01
ended
|
FJ80,FZJ80 | — | |
| 88403 — Hub Sub-assy, Magnet Clutch | ||||
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1992-08 → 1993-05
ended
|
FZJ80 | — | |
| 88403-30290 |
Hub Sub-assy, Magnet Clutch
1993-05 → 1998-01
ended
|
FZJ80 | — | |
| 88410 — Clutch Assy, Magnet | ||||
| 88410-26110 |
Clutch Assy, Magnet
1993-05 → 1998-01
ended
|
FZJ80 | — | |
| 88410-60200 |
Clutch Assy, Magnet
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88410-60290 |
Clutch Assy, Magnet
1992-08 → 1993-05
ended
|
FZJ80 | — | |
| 88415A — Cover, Dust | ||||
| 88415-36050 |
Cover, Dust
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 88431-60140 |
Bracket, Compressor Mounting, NO.1
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88431-60200 |
Bracket, Compressor Mounting, NO.1
1992-08 → 1998-01
ended
|
FZJ80 | — | |
| 88442 — Shaft, Idle Pulley | ||||
| 88442-36010 |
Shaft, Idle Pulley
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88443 — Collar, Idle Pulley | ||||
| 88443-36010 |
Collar, Idle Pulley
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88444 — Bracket, Idle Pulley | ||||
| 88444-60090 |
Bracket, Idle Pulley
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88446 — Bolt, Idle Pulley | ||||
| 88446-35010 |
Bolt, Idle Pulley
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88446-35040 |
Bolt, Idle Pulley
1993-05 → 1998-01
ended
|
FZJ80 | — | |
| 88545 — Pulley Assy, Idle | ||||
| 88440-12160 note |
Pulley Assy, Idle
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 88440-26090 |
Pulley Assy, Idle
1992-08 → 1998-01
ended
|
FZJ80 | — | |
| 88440-36100 note |
Pulley Assy, Idle
1990-01 → 1992-08
ended
|
FJ80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
