Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

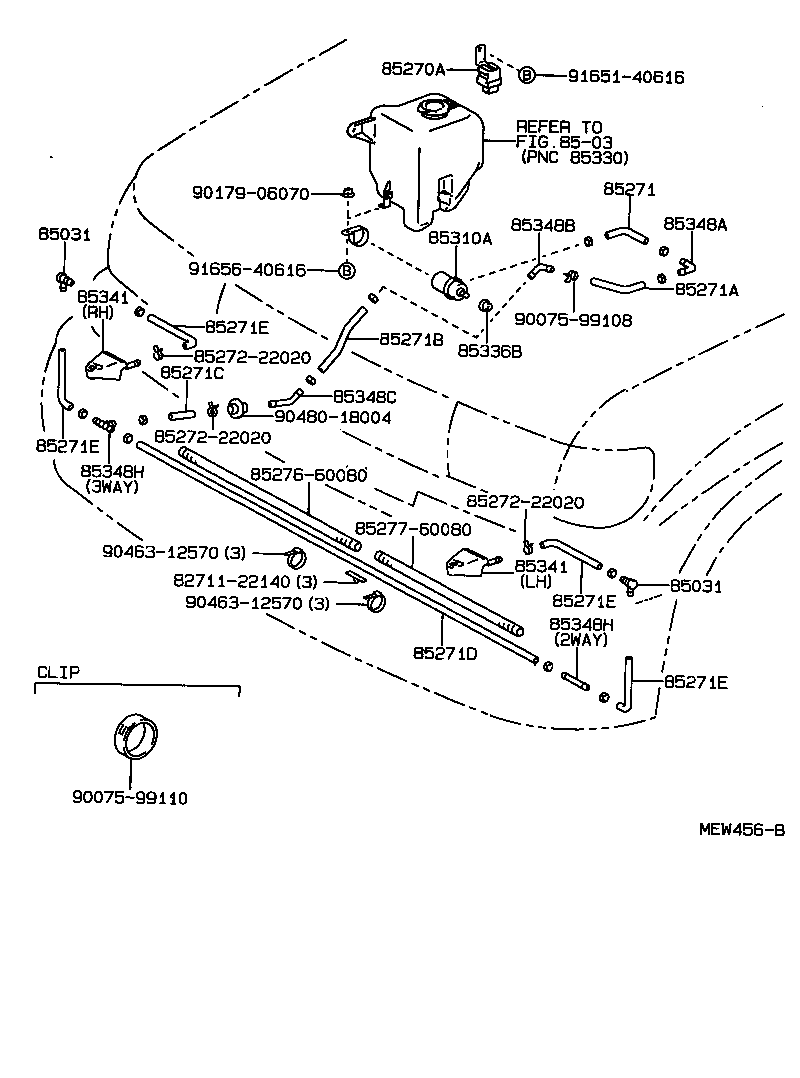

Exploded illustration MEW456B 85270A — RELAY ASSY, HEADLAMP CLEANER (1 parts) 9165140616 — not listed in this catalogue 8503 — not listed in this catalogue 85271 — HOSE, HEADLAMP CLEANER, NO.1 (3 parts) 9017906070 — not listed in this catalogue 85348A — JOINT, HEADLAMP CLEANER HOSE, NO.1 (2 parts) 85348B — JOINT, HEADLAMP CLEANER HOSE, NO.2 (1 parts) 85031 — VALVE, HEADLAMP CLEANER WASHER HOSE (1 parts) 85310A — MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER (1 parts) 9165640616 — not listed in this catalogue 85271A — HOSE, HEADLAMP CLEANER, NO.2 (1 parts) 85341 — NOZZLE, HEADLAMP CLEANER WASHER (2 parts) 9007599108 — not listed in this catalogue 85271E — HOSE, HEADLAMP CLEANER, NO.6 (1 parts) 85271B — HOSE, HEADLAMP CLEANER, NO.3 (1 parts) 85336B — PACKING, HEADLAMP CLEANER WASHER (1 parts) 8527222020 — not listed in this catalogue 85271C — HOSE, HEADLAMP CLEANER, NO.4 (1 parts) 85348C — JOINT, HEADLAMP CLEANER HOSE, NO.3 (1 parts) 9048018004 — not listed in this catalogue 8527222020 — not listed in this catalogue 85271E — HOSE, HEADLAMP CLEANER, NO.6 (1 parts) 85348H — JOINT, HEADLAMP CLEANER HOSE, NO.4 (4 parts) 8527660080 — not listed in this catalogue 8527222020 — not listed in this catalogue 8527760080 — not listed in this catalogue 9046312570 — not listed in this catalogue 85341 — NOZZLE, HEADLAMP CLEANER WASHER (2 parts) 8271122140 — not listed in this catalogue 85031 — VALVE, HEADLAMP CLEANER WASHER HOSE (1 parts) 85271E — HOSE, HEADLAMP CLEANER, NO.6 (1 parts) 9046312570 — not listed in this catalogue 85348H — JOINT, HEADLAMP CLEANER HOSE, NO.4 (4 parts) 85271D — HOSE, HEADLAMP CLEANER, NO.5 (2 parts) 85271E — HOSE, HEADLAMP CLEANER, NO.6 (1 parts) 9007599110 — not listed in this catalogue
MEW456B · 21 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
85031 — Valve, Headlamp Cleaner Washer Hose
85031-30020 Valve, Headlamp Cleaner Washer Hose
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85270A — Relay Assy, Headlamp Cleaner
85270-60010 Relay Assy, Headlamp Cleaner
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85271 — Hose, Headlamp Cleaner, NO.1
85275-60030 Hose, Headlamp Cleaner, NO.1
1990-03 → 1992-08 ended
FJ80 —
85275-60100 Hose, Headlamp Cleaner, NO.1
1992-08 → 1993-08 ended
FZJ80 —
85375-20171 note Hose, Headlamp Cleaner, NO.1
1990-01 → 1990-03 ended
FJ80 —
85271A — Hose, Headlamp Cleaner, NO.2
85275-60070 Hose, Headlamp Cleaner, NO.2
1990-01 → 1992-08 ended
FJ80 —
85271B — Hose, Headlamp Cleaner, NO.3
85375-22061 note Hose, Headlamp Cleaner, NO.3
1990-01 → 1992-08 ended
FJ80 —
85271C — Hose, Headlamp Cleaner, NO.4
90445-14055 note Hose, Headlamp Cleaner, NO.4
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85271D — Hose, Headlamp Cleaner, NO.5
85275-60080 note Hose, Headlamp Cleaner, NO.5
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85375-95403 note Hose, Headlamp Cleaner, NO.5
1990-01 → 1992-08 ended
FJ80 —
85271E — Hose, Headlamp Cleaner, NO.6
85271-90A01 Hose, Headlamp Cleaner, NO.6
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85310A — Motor And Pump Assy, Headlamp Cleaner Washer
85280-60010 Motor And Pump Assy, Headlamp Cleaner Washer
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85336B — Packing, Headlamp Cleaner Washer
85336-10010 Packing, Headlamp Cleaner Washer
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85341 — Nozzle, Headlamp Cleaner Washer
85044-60020 note Nozzle, Headlamp Cleaner Washer
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85045-60010 note Nozzle, Headlamp Cleaner Washer
1990-01 → 1993-08 ended
FJ80,FZJ80 —
85348A — Joint, Headlamp Cleaner Hose, NO.1
85279-60070 Joint, Headlamp Cleaner Hose, NO.1
1992-08 → 1993-08 ended
FZJ80 —
85379-95A09 Joint, Headlamp Cleaner Hose, NO.1
1990-01 → 1992-08 ended
FJ80 —
85348B — Joint, Headlamp Cleaner Hose, NO.2
85379-90K04 Joint, Headlamp Cleaner Hose, NO.2
1990-01 → 1992-08 ended
FJ80 —
85348C — Joint, Headlamp Cleaner Hose, NO.3
85279-60070 Joint, Headlamp Cleaner Hose, NO.3
1990-01 → 1992-08 ended
FJ80 —
85348H — Joint, Headlamp Cleaner Hose, NO.4
85279-60080 note Joint, Headlamp Cleaner Hose, NO.4
1992-08 → 1993-08 ended
FZJ80 —
85352-12010 note Joint, Headlamp Cleaner Hose, NO.4
1990-01 → 1993-08 ended
FJ80 —
85352-12010 note Joint, Headlamp Cleaner Hose, NO.4
1990-01 → 1993-08 ended
FZJ80 —
85379-22081 note Joint, Headlamp Cleaner Hose, NO.4
1990-01 → 1992-08 ended
FJ80 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
