Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · United States
Discontinued model
Data version 1998-01

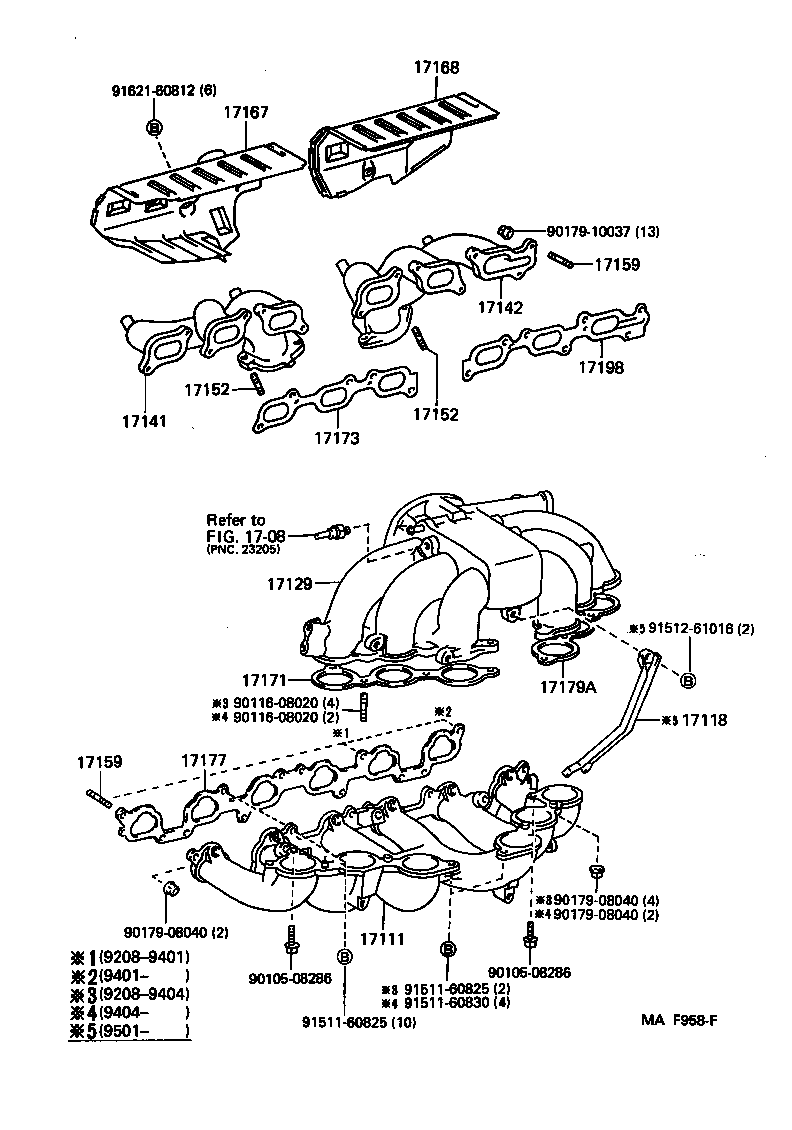

Manifold
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17111B | Plug, NO.2 |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17123 | Cover, Surge Tank |
| 17125 | Stay, Surge Tank, NO.1 |
| 17129 | Tank, Intake Air Surge |
| 17129B | Plug |
| 17141 | Manifold, Exhaust |
| 17142 | Case, Exhaust Manifold, NO.2 |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17171 | Gasket, Intake TO Exhaust Manifold |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17198 | Gasket, Exhaust Manifold, NO.2 |
| 17303Q | Hose(FOR PIPE TO UNION) |
| 17344B | Union(FOR AIR HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
