Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 4 illustrations

Illustrations

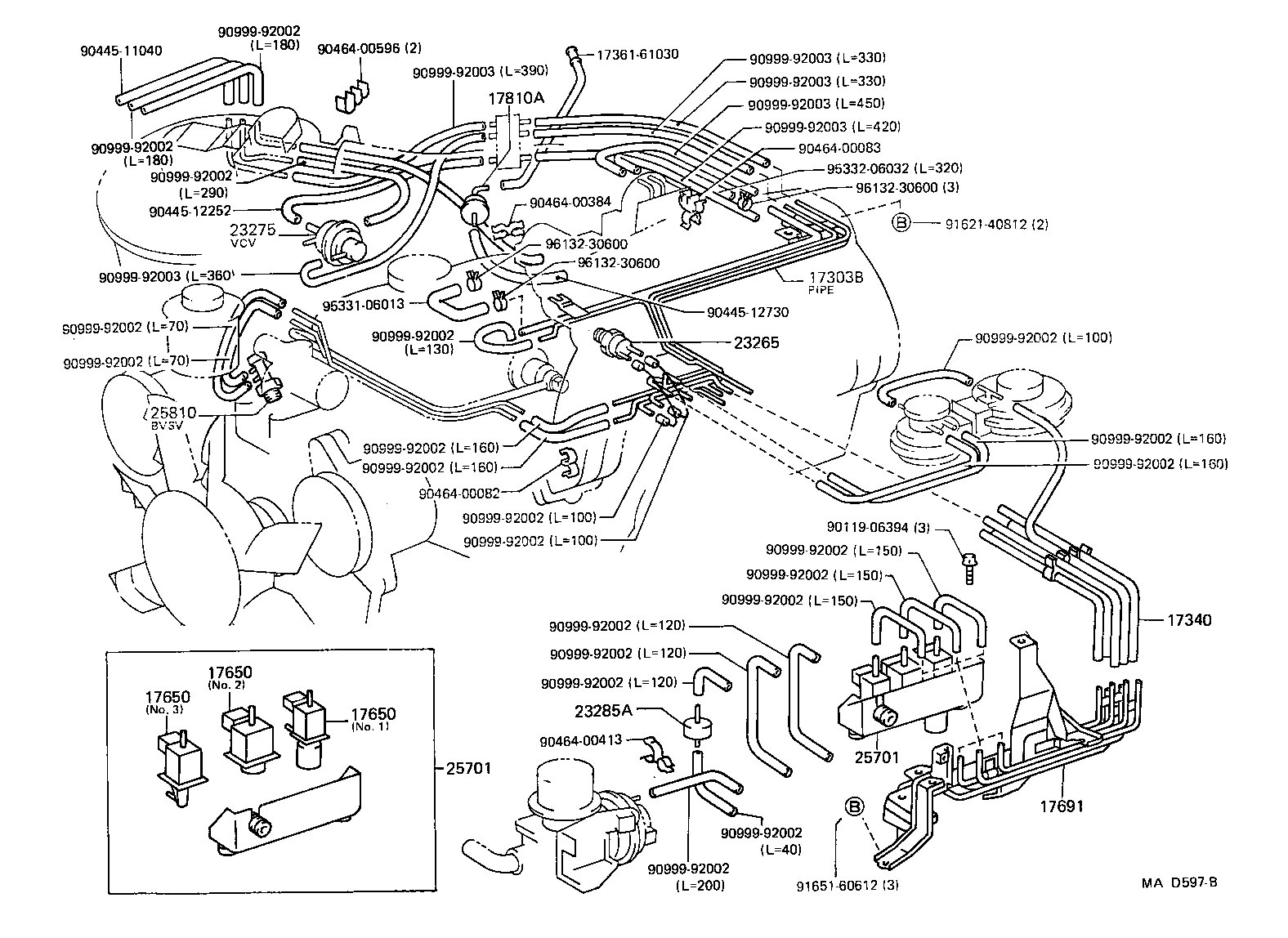

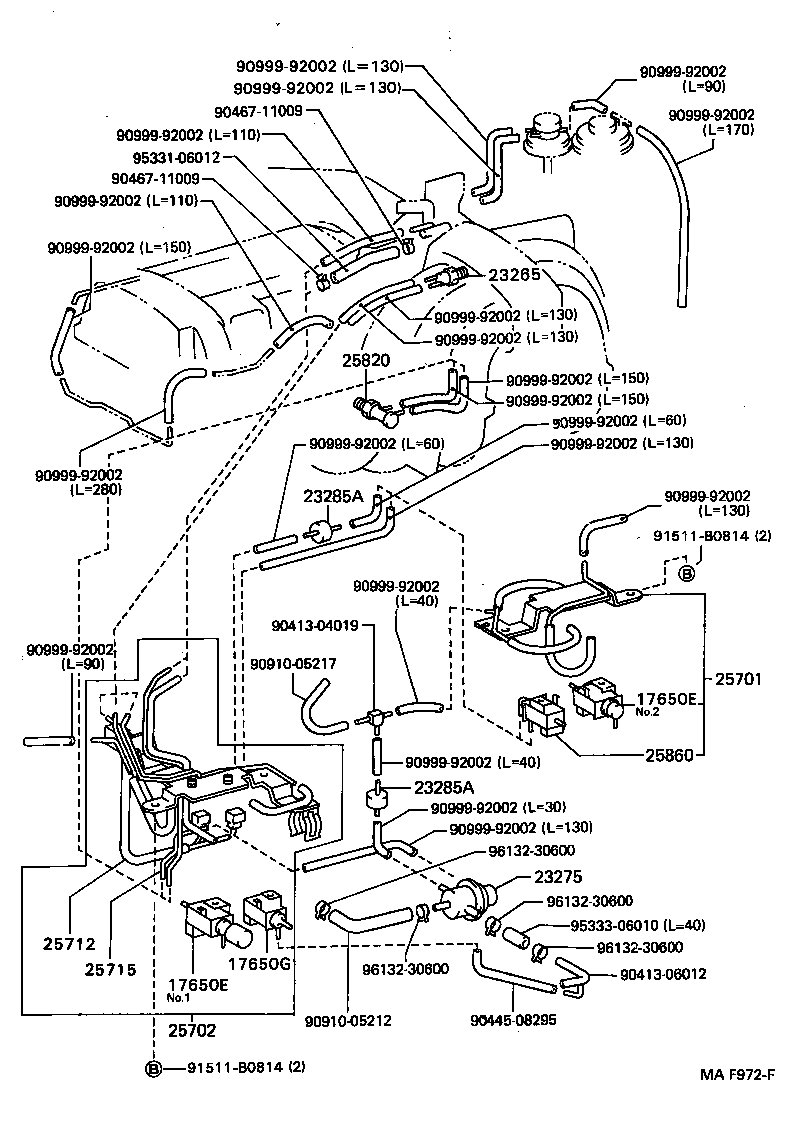

Figure MA9504B MA9504B 1990-01 → — Figure MAD597B MAD597B 1990-01 → 1992-08 Figure MAF972F MAF972F 1992-08 → 1995-01 Figure 176210 176210 1995-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17340 Hose Assy, Vacuum Switching Valve
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23285A Valve, Check, NO.1
25701 Valve Set, Emission Control
25702 Valve Set, Emission Control, NO.2
25712 Wire, Emission Control Valve
25715 Bracket, Emission Control Valve
25810 Valve Assy, Bimetal
25820 Valve Assy, Bimetal, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
