Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · United States

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

15 part groups · 2 illustrations

Illustrations

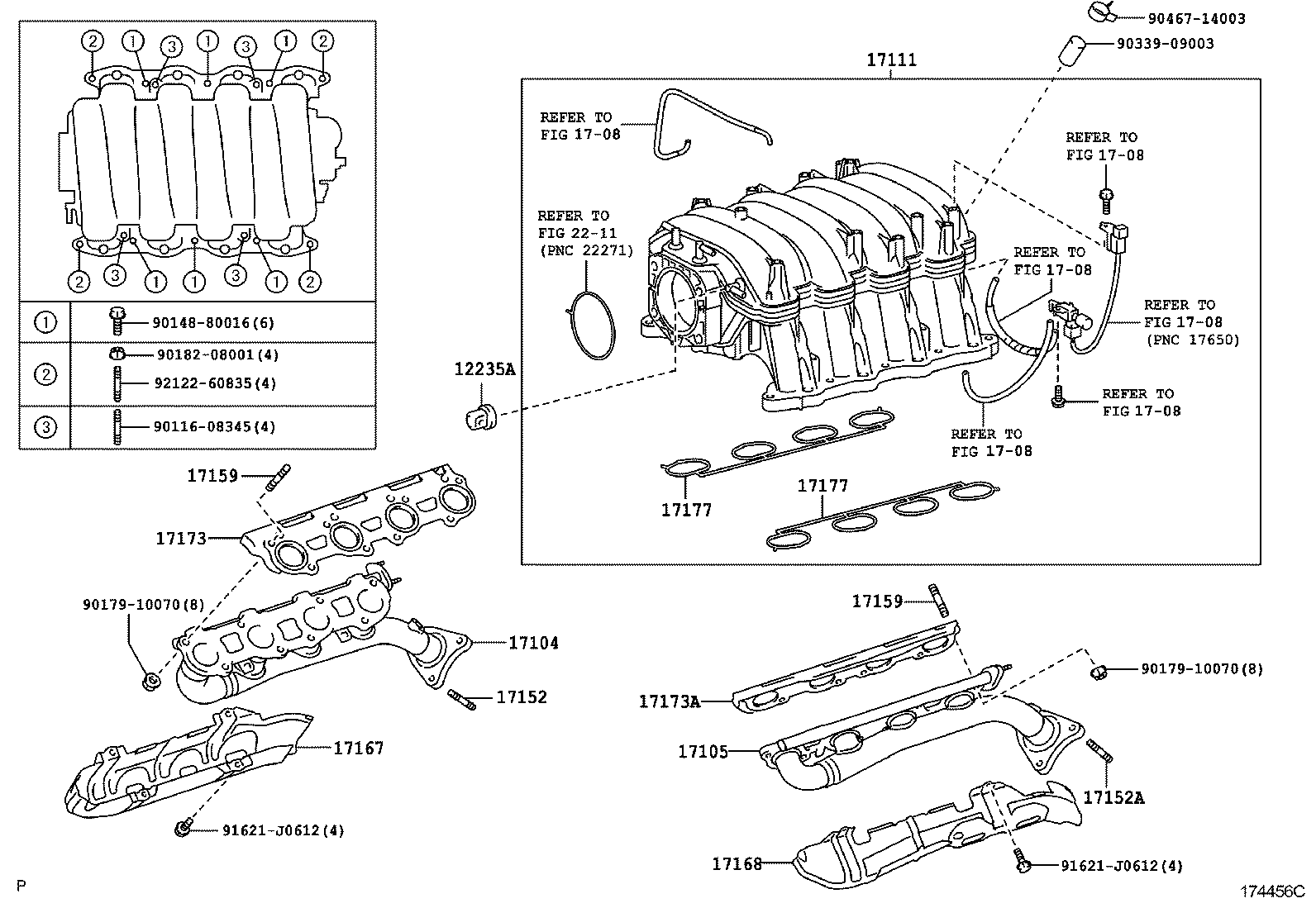

Figure 171564E 171564E 1998-01 → 2005-05 Figure 174456C 174456C 2005-05 → —

Part groups

PNCDescription
12235A Cap, Ventilation
17102 Manifold Sub-assy, Intake, Upper
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111X Plug, Tight NO.1(FOR INTAKE MANIFOLD)
17114B Gasket, Intake Flange
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
