Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · United States
Discontinued model
Data version 2008-01

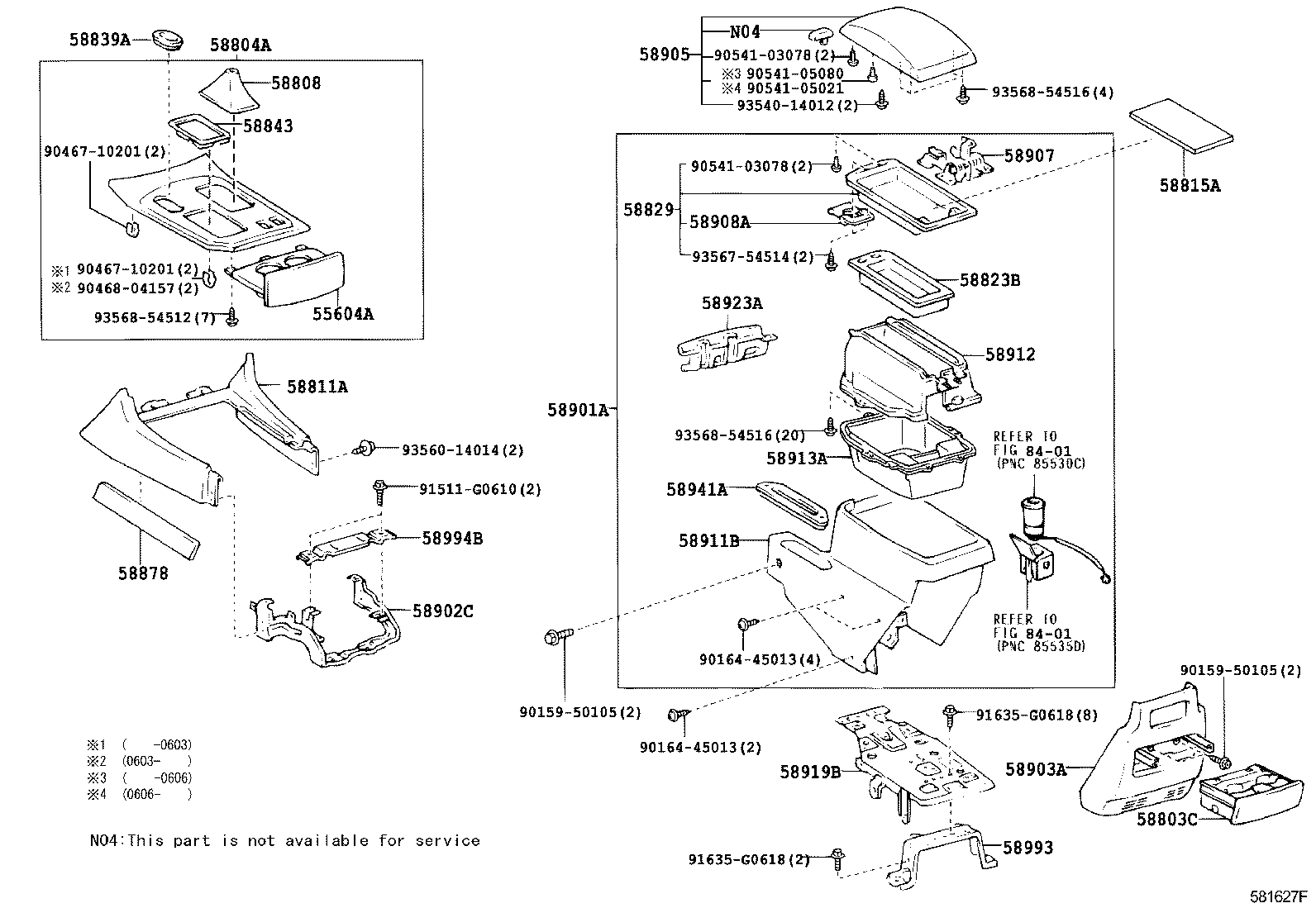

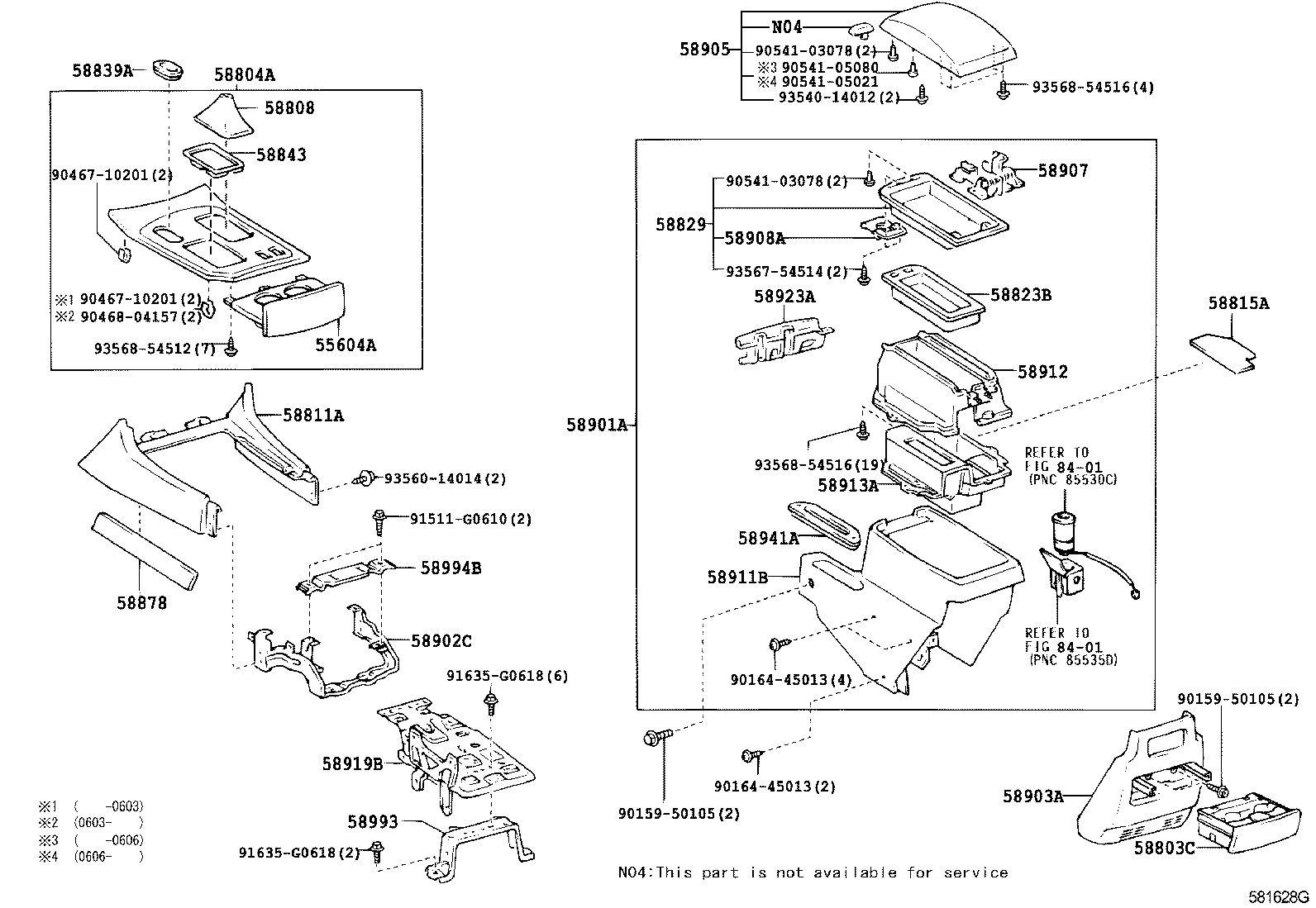

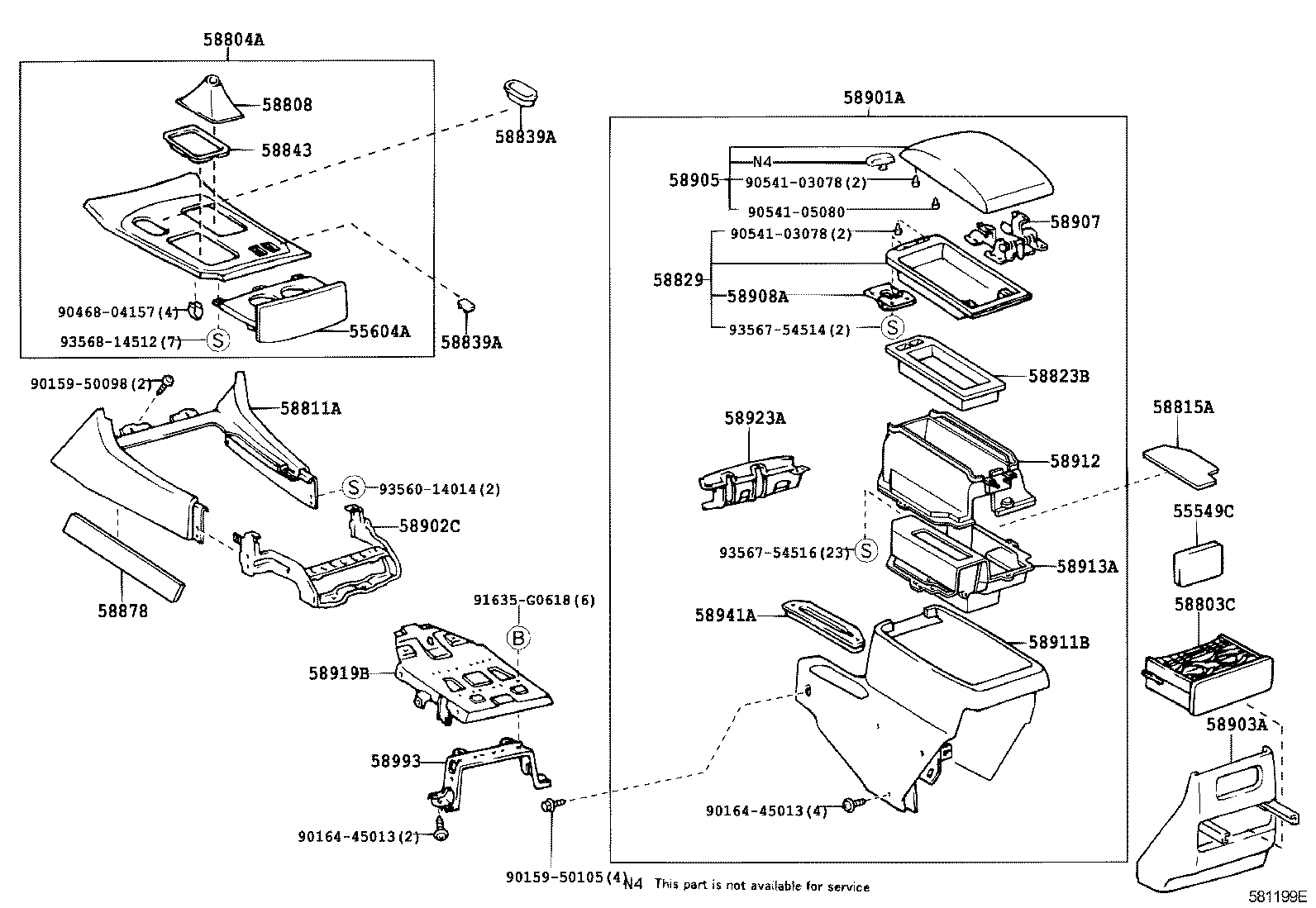

Console Box & Bracket
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55549C | Cover, Rear Cooler Switch Hole |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 58803C | Box Sub-assy, Console Cup Holder |
| 58804A | Panel Sub-assy, Console, Upper |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58811A | Box, Console, Front |
| 58815A | Carpet, Console Box |
| 58823B | Box, Console Compartment |
| 58829 | Pocket, Console Box |
| 58839A | Cover, Console Box Hole |
| 58843 | Bezel, Shifting Hole |
| 58878 | Pad, Console Box Silencer, NO.4 |
| 58901A | Box Sub-assy, Console, Rear |
| 58902C | Bracket Sub-assy, Console Box Mounting |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58911B | Panel, Box, NO.1 |
| 58912 | Box, Rear Console, NO.2 |
| 58913A | Panel, Box, NO.3 |
| 58919B | Plate, Console Box |
| 58923A | Panel, Console Rear End |
| 58941A | Cover, Parking Brake Hole |
| 58993 | Bracket, Console Box Mounting, Rear |
| 58994B | Bracket, Console Box Mounting, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
