Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · United States
Discontinued model
Data version 2008-01
Meter
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

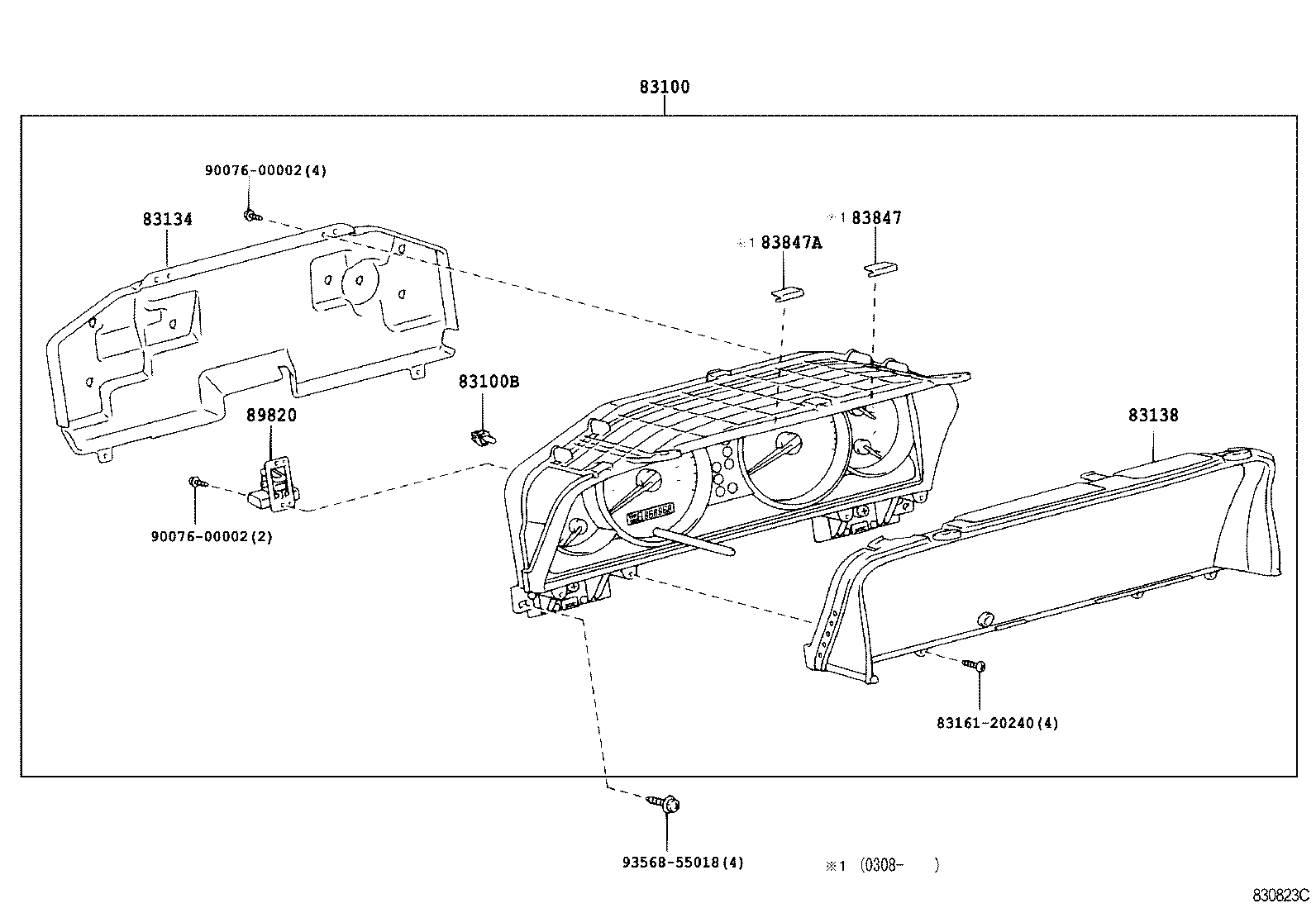

| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83146A | Cover, Speedmeter |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83246 | Gauge, Oil Pressure Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83247F | Plate, Meter Circuit, NO.1 (FOR COMPUTER) |
| 83247G | Plate, Meter Circuit, NO.2 (FOR COMPUTER) |
| 83847 | Cushion, Combination Speedometer, NO.1 |
| 83847A | Cushion, Combination Speedmeter |
| 83875 | Wire, Combination Meter, NO.1 |
| 89820 | Sensor Assy, Inclination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
