Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · United States

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

17 part groups · 5 illustrations

Illustrations

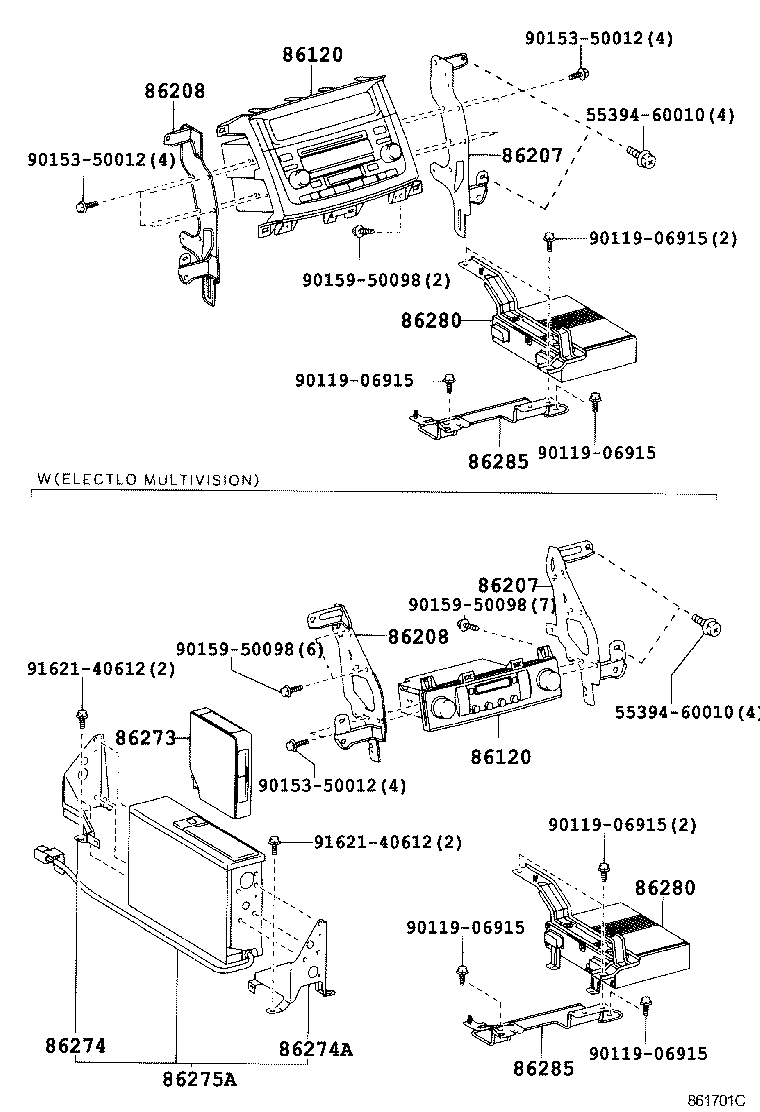

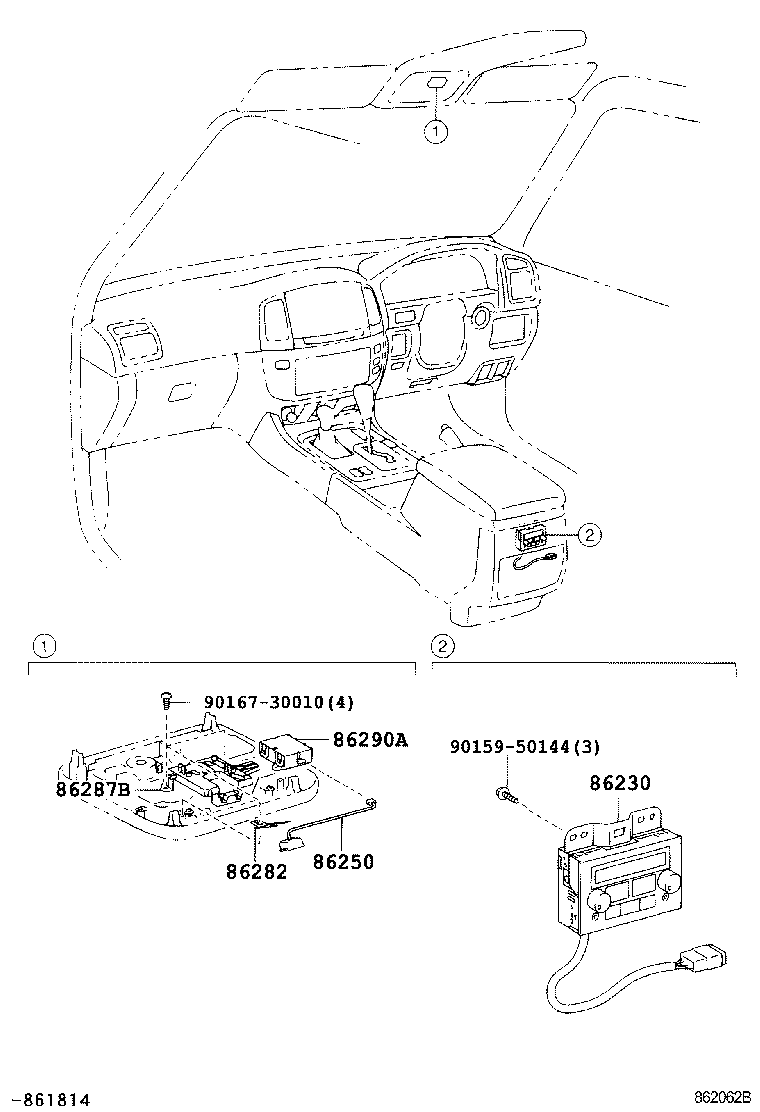

Figure 860653E 860653E 1998-01 → 2002-08 Figure 861701C 861701C 2002-08 → — Figure 860626F 860626F 1998-01 → — Figure 862062B 862062B 2002-08 → — Figure 861209A 861209A 1998-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86207 Bracket Sub-assy, Radio Receiver, RH
86208 Bracket Sub-assy, Radio Receiver, LH
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86230 Controller Assy, Stereo Component
86250 Microphone Assy, Amplifier
86273 Magazine, Disc Player
86274 Bracket, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86282 Bracket, Microphone
86285 Bracket, Amplifier, NO.1
86287B Cover, Amplifier
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
