Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · United States

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

16 part groups · 3 illustrations

Illustrations

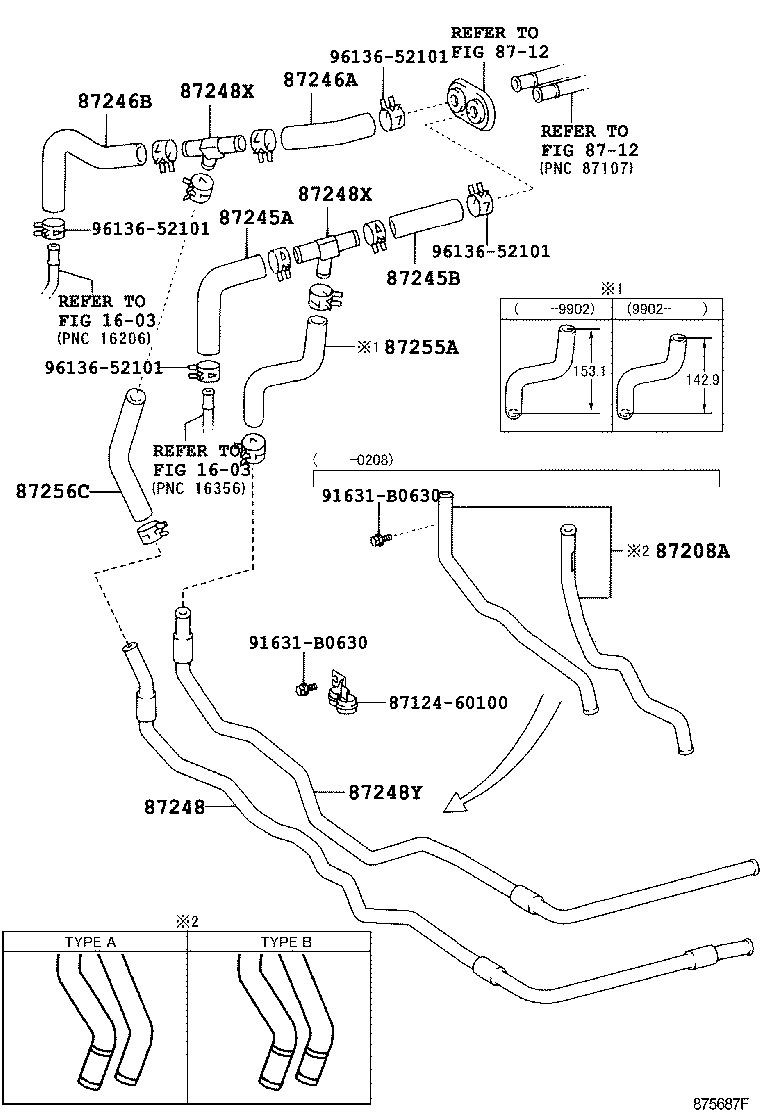

Figure 872353B 872353B 1998-01 → — Figure 875687F 875687F 1998-01 → — Figure 872871C 872871C 1998-01 → —

Part groups

PNCDescription
87208A Pipe Sub-assy, Heater Water, A
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248 Pipe Sub-assy, Water
87248B Pipe, Heater Water Inlet, B
87248X Pipe, Heater Water
87248Y Pipe, Heater Water, NO.2
87249B Pipe, Heater Water Outlet, B
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
