Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

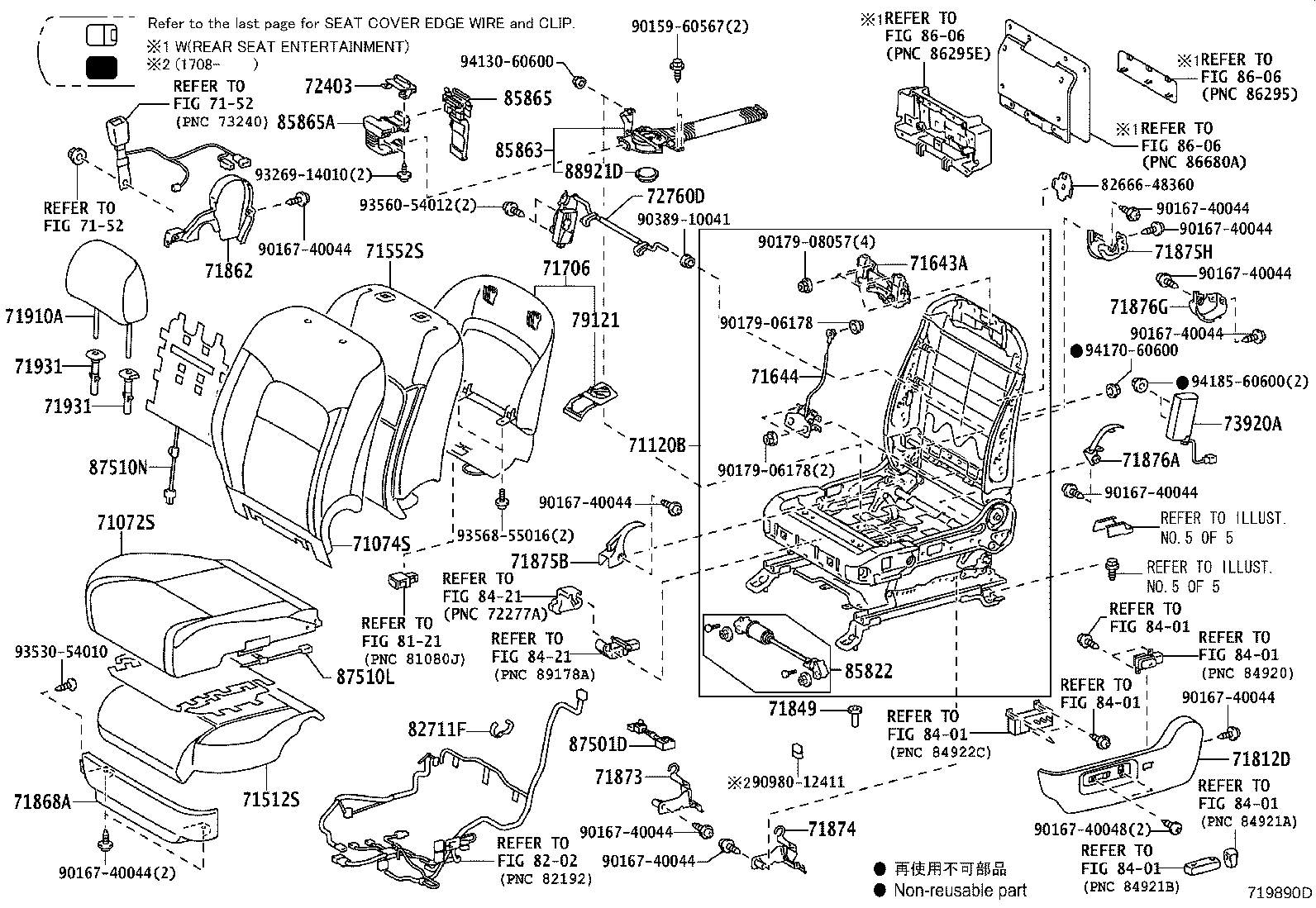

Exploded illustration 719890D 8202 — not listed in this catalogue 7152 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8121 — not listed in this catalogue 7152 — not listed in this catalogue 8401 — not listed in this catalogue 71910A — HEADREST ASSY, FRONT SEAT (58 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (19 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (19 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (3 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (55 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (10 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (9 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (3 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (9 parts) 71875H — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (3 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (9 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (3 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (3 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (3 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (9 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (3 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (3 parts) 71706 — BOARD SUB-ASSY, FRONT SEATBACK, LH (9 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (9 parts) 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (5 parts) 85863 — BLOWER, SEAT CLIMATE CONTROL, LH (2 parts) 88921D — FILTER, AIR, NO.1 (2 parts) 85865 — CONTROLLER, SEAT CLIMATE CONTROL,LH (2 parts) 82711F — CLAMP, WIRING HARNESS (10 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9098012411 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356054012 — not listed in this catalogue 9038910041 — not listed in this catalogue 9016740044 — not listed in this catalogue 9353054010 — not listed in this catalogue 9413060600 — not listed in this catalogue 9015960567 — not listed in this catalogue 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (37 parts) 9016740048 — not listed in this catalogue 9418560600 — not listed in this catalogue 9417060600 — not listed in this catalogue 71120B — FRAME ASSY, FRONT SEAT W/ADJUSTER, LH (11 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (3 parts) 85865A — CONTROLLER, SEAT CLIMATE CONTROL, LH (2 parts) 72403 — BRACKET SUB-ASSY, SEAT FRAME SET (1 parts) 9326914010 — not listed in this catalogue 87501D — CONTROL SUB-ASSY, SEAT HEATER (2 parts) 9017908057 — not listed in this catalogue 71643A — UNIT, ACTIVE HEADREST, UPR (3 parts) 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 71644 — UNIT, ACTIVE HEADREST, LWR (3 parts) 8266648360 — not listed in this catalogue 8421 — not listed in this catalogue 8421 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 79121 — BRACKET, NO.1 SEAT CUSHION (10 parts) 8606 — not listed in this catalogue 8606 — not listed in this catalogue 8606 — not listed in this catalogue 85822 — MOTOR ASSY, POWER SEAT SLIDE, LH (1 parts)
719890D · 34 callouts, 41 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
314 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-60A90-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2007-09 → 2010-08 ended
URJ200 —
71072-60A90-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2007-09 → 2010-08 ended
URJ200 —
71072-60A91-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2010-08 → 2012-01 ended
URJ200 —
71072-60A91-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2010-08 → 2012-01 ended
URJ200 —
71072-60F00-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-01 → 2013-03 ended
URJ200 —
71072-60F00-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-01 → 2013-03 ended
URJ200 —
71072-60F01-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-04 → 2015-08 ended
URJ200 —
71072-60F01-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-04 → 2015-08 ended
URJ200 —
71072-60M40-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2017-08 ended
URJ200 —
71072-60M40-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2018-12 ended
URJ200 —
71072-60M40-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2017-08 ended
URJ200 —
71072-60M40-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71072-60M40-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71072-60M41-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-01 → 2021-04 ended
URJ200 —
71072-60M41-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M41-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71072-60M41-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71072-60M60-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2017-08 ended
URJ200 —
71072-60M60-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71072-60M60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2019-08 ended
URJ200 —
71072-60M60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71072-60M60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71072-60M60-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71072-60M60-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71072-60M60-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71072-60M60-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-08 → 2017-08 ended
URJ200 —
71072-60M60-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71072-60M60-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71072-60M60-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-60A00-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2007-09 → 2009-07 ended
URJ200 —
71074-60A00-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2007-09 → 2009-07 ended
URJ200 —
71074-60A01-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2009-07 → 2010-08 ended
URJ200 —
71074-60A01-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2009-07 → 2010-08 ended
URJ200 —
71074-60A02-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2010-08 → 2012-01 ended
URJ200 —
71074-60A02-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2010-08 → 2012-01 ended
URJ200 —
71074-60E00-A1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-01 → 2015-08 ended
URJ200 —
71074-60E00-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-01 → 2015-08 ended
URJ200 —
71074-60L50-A2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L50-A2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71074-60L50-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60L50-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71074-60L50-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60L50-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71074-60L50-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L50-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60L50-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60L50-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60L50-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60L50-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L50-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71074-60L50-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71074-60L50-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71074-60L70-A2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L70-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L70-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71074-60L70-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L70-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71074-60L70-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71074-60L71-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-04 ended
URJ200 —
71074-60L71-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60L71-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71074-60L71-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71074-60L80-A2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71074-60L80-A2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L80-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71074-60L80-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71074-60L80-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L80-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71074-60L80-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71074-60L80-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60L80-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71074-60L81-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-04 ended
URJ200 —
71074-60L81-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71074-60L81-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60L81-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71074-60M10-A2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60M10-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60M10-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60M10-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71074-60M10-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60M10-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71074-60M10-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71074-60M10-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71074-60M10-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71120B — Frame Assy, Front Seat W/Adjuster, LH
71120-60510 Frame Assy, Front Seat W/Adjuster, LH
2007-09 → 2012-01 ended
URJ200 —
71120-60660 Frame Assy, Front Seat W/Adjuster, LH
2012-01 → 2012-12 ended
URJ200 —
71120-60661 Frame Assy, Front Seat W/Adjuster, LH
2012-12 → 2015-08 ended
URJ200 —
71120-60780 Frame Assy, Front Seat W/Adjuster, LH
2015-08 → 2016-08 ended
URJ200 —
71120-60781 Frame Assy, Front Seat W/Adjuster, LH
2017-08 → 2021-04 ended
URJ200 —
71120-60B80 note Frame Assy, Front Seat W/Adjuster, LH
2017-08 → 2021-04 ended
URJ200 —
71120-60B80 note Frame Assy, Front Seat W/Adjuster, LH
2019-08 → 2021-04 ended
URJ200 —
71120-60B80 note Frame Assy, Front Seat W/Adjuster, LH
2017-08 → 2021-04 ended
URJ200 —
71120-60B80 Frame Assy, Front Seat W/Adjuster, LH
2016-08 → 2017-08 ended
URJ200 —
71120-60B80 note Frame Assy, Front Seat W/Adjuster, LH
2015-08 → 2016-08 ended
URJ200 —
71120-60B80 note Frame Assy, Front Seat W/Adjuster, LH
2015-08 → 2016-08 ended
URJ200 —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71502-60190 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2007-09 → 2012-01 ended
URJ200 —
71502-60380 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2012-01 → 2015-08 ended
URJ200 —
71502-60380 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2015-08 → 2021-04 ended
URJ200 —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71506-60100 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2007-09 → 2012-01 ended
URJ200 —
71506-60170 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2012-01 → 2015-08 ended
URJ200 —
71506-60170 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71506-60170 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2021-04 ended
URJ200 —
71506-60300 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71506-60300 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2021-04 ended
URJ200 —
71506-60300 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-08 → 2021-04 ended
URJ200 —
71506-60300 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71506-60300 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71506-60300 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71643A — Unit, Active Headrest, Upr
71643-12011 Unit, Active Headrest, Upr
2007-09 → 2012-01 ended
URJ200 —
71643-12011 Unit, Active Headrest, Upr
2012-01 → 2015-08 ended
URJ200 —
71643-12011 Unit, Active Headrest, Upr
2015-08 → 2021-04 ended
URJ200 —
71644 — Unit, Active Headrest, Lwr
71644-12030 Unit, Active Headrest, Lwr
2007-09 → 2012-01 ended
URJ200 —
71644-12030 Unit, Active Headrest, Lwr
2012-01 → 2015-08 ended
URJ200 —
71644-12030 Unit, Active Headrest, Lwr
2015-08 → 2021-04 ended
URJ200 —
71706 — Board Sub-assy, Front Seatback, LH
71706-60070-B0 note Board Sub-assy, Front Seatback, LH
2007-09 → 2012-01 ended
URJ200 —
71706-60070-E0 note Board Sub-assy, Front Seatback, LH
2007-09 → 2012-01 ended
URJ200 —
71706-60130-A1 note Board Sub-assy, Front Seatback, LH
2012-01 → 2015-08 ended
URJ200 —
71706-60130-C0 note Board Sub-assy, Front Seatback, LH
2012-01 → 2015-08 ended
URJ200 —
71706-60170-A0 note Board Sub-assy, Front Seatback, LH
2015-08 → 2017-08 ended
URJ200 —
71706-60170-C0 note Board Sub-assy, Front Seatback, LH
2015-08 → 2017-08 ended
URJ200 —
71706-60170-C0 note Board Sub-assy, Front Seatback, LH
2017-08 → 2019-08 ended
URJ200 —
71706-60170-C0 note Board Sub-assy, Front Seatback, LH
2019-08 → 2021-04 ended
URJ200 —
71706-60170-E0 note Board Sub-assy, Front Seatback, LH
2017-08 → 2019-08 ended
URJ200 —
71812D — Shield, Front Seat Cushion, LH
71812-42110-B2 note Shield, Front Seat Cushion, LH
2007-09 → 2012-01 ended
URJ200 —
71812-42110-E1 note Shield, Front Seat Cushion, LH
2007-09 → 2012-01 ended
URJ200 —
71812-42110-A1 note Shield, Front Seat Cushion, LH
2012-01 → 2015-08 ended
URJ200 —
71812-42110-C0 note Shield, Front Seat Cushion, LH
2012-01 → 2015-08 ended
URJ200 —
71812-60370-A1 note Shield, Front Seat Cushion, LH
2015-08 → 2017-08 ended
URJ200 —
71812-60370-C0 note Shield, Front Seat Cushion, LH
2015-08 → 2017-08 ended
URJ200 —
71812-60370-C0 note Shield, Front Seat Cushion, LH
2019-08 → 2021-04 ended
URJ200 —
71812-60370-C0 note Shield, Front Seat Cushion, LH
2017-08 → 2019-08 ended
URJ200 —
71812-60370-E0 note Shield, Front Seat Cushion, LH
2017-08 → 2019-08 ended
URJ200 —
71849 — Cap, Seat Adjuster Cover, LH
71848-33010 Cap, Seat Adjuster Cover, LH
2007-09 → 2012-01 ended
URJ200 —
71848-33010 Cap, Seat Adjuster Cover, LH
2012-01 → 2015-08 ended
URJ200 —
71848-33010 Cap, Seat Adjuster Cover, LH
2015-08 → 2021-04 ended
URJ200 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-60100-B1 note Shield, Front Seat Cushion, Inner LH
2007-09 → 2012-01 ended
URJ200 —
71862-60100-E3 note Shield, Front Seat Cushion, Inner LH
2007-09 → 2012-01 ended
URJ200 —
71862-60100-A2 note Shield, Front Seat Cushion, Inner LH
2012-01 → 2015-08 ended
URJ200 —
71862-60100-C0 note Shield, Front Seat Cushion, Inner LH
2012-01 → 2015-08 ended
URJ200 —
71862-60100-A6 note Shield, Front Seat Cushion, Inner LH
2015-08 → 2017-08 ended
URJ200 —
71862-60100-C0 note Shield, Front Seat Cushion, Inner LH
2015-08 → 2017-08 ended
URJ200 —
71862-60100-C0 note Shield, Front Seat Cushion, Inner LH
2019-08 → 2021-04 ended
URJ200 —
71862-60100-C0 note Shield, Front Seat Cushion, Inner LH
2017-08 → 2019-08 ended
URJ200 —
71862-60100-E6 note Shield, Front Seat Cushion, Inner LH
2017-08 → 2019-08 ended
URJ200 —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-60020-B0 note Shield, Front Seat Cushion, Inner NO.1 LH
2007-09 → 2012-01 ended
URJ200 —
71868-60020-E2 note Shield, Front Seat Cushion, Inner NO.1 LH
2007-09 → 2012-01 ended
URJ200 —
71868-60040-A2 note Shield, Front Seat Cushion, Inner NO.1 LH
2012-01 → 2015-08 ended
URJ200 —
71868-60040-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2012-01 → 2015-08 ended
URJ200 —
71868-60040-A4 note Shield, Front Seat Cushion, Inner NO.1 LH
2015-08 → 2017-08 ended
URJ200 —
71868-60040-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2015-08 → 2017-08 ended
URJ200 —
71868-60040-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-08 → 2021-04 ended
URJ200 —
71868-60040-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-08 → 2019-08 ended
URJ200 —
71868-60040-E1 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-08 → 2019-08 ended
URJ200 —
71873 — Shield, Front Seat Cushion, Lower RH
71874-30020 Shield, Front Seat Cushion, Lower RH
2007-09 → 2012-01 ended
URJ200 —
71874-30020 Shield, Front Seat Cushion, Lower RH
2012-01 → 2015-08 ended
URJ200 —
71874-30020 Shield, Front Seat Cushion, Lower RH
2015-08 → 2021-04 ended
URJ200 —
71874 — Shield, Front Seat Cushion, Lower LH
71873-30070 Shield, Front Seat Cushion, Lower LH
2007-09 → 2012-01 ended
URJ200 —
71873-30070 Shield, Front Seat Cushion, Lower LH
2012-01 → 2015-08 ended
URJ200 —
71873-30070 Shield, Front Seat Cushion, Lower LH
2015-08 → 2021-04 ended
URJ200 —
71875B — Cover, Reclining Adjuster Inside, RH
71876-60170-B1 note Cover, Reclining Adjuster Inside, RH
2007-09 → 2012-01 ended
URJ200 —
71876-60170-E3 note Cover, Reclining Adjuster Inside, RH
2007-09 → 2012-01 ended
URJ200 —
71876-60170-A3 note Cover, Reclining Adjuster Inside, RH
2012-01 → 2015-08 ended
URJ200 —
71876-60170-C0 note Cover, Reclining Adjuster Inside, RH
2012-01 → 2015-08 ended
URJ200 —
71876-60170-A8 note Cover, Reclining Adjuster Inside, RH
2015-08 → 2017-08 ended
URJ200 —
71876-60170-C0 note Cover, Reclining Adjuster Inside, RH
2015-08 → 2017-08 ended
URJ200 —
71876-60170-C0 note Cover, Reclining Adjuster Inside, RH
2019-08 → 2021-04 ended
URJ200 —
71876-60170-C0 note Cover, Reclining Adjuster Inside, RH
2017-08 → 2019-08 ended
URJ200 —
71876-60170-E8 note Cover, Reclining Adjuster Inside, RH
2017-08 → 2019-08 ended
URJ200 —
71875H — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875-60140 Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2007-09 → 2012-01 ended
URJ200 —
71875-60140 Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2012-01 → 2015-08 ended
URJ200 —
71875-60140 Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2015-08 → 2021-04 ended
URJ200 —
71876A — Cover, Reclining Adjuster Inside, LH
71876-60150-B1 note Cover, Reclining Adjuster Inside, LH
2007-09 → 2012-01 ended
URJ200 —
71876-60150-E3 note Cover, Reclining Adjuster Inside, LH
2007-09 → 2012-01 ended
URJ200 —
71876-60150-A4 note Cover, Reclining Adjuster Inside, LH
2012-01 → 2015-08 ended
URJ200 —
71876-60150-C0 note Cover, Reclining Adjuster Inside, LH
2012-01 → 2015-08 ended
URJ200 —
71876-60150-A7 note Cover, Reclining Adjuster Inside, LH
2015-08 → 2017-08 ended
URJ200 —
71876-60150-C0 note Cover, Reclining Adjuster Inside, LH
2017-08 → 2019-08 ended
URJ200 —
71876-60150-C0 note Cover, Reclining Adjuster Inside, LH
2019-08 → 2021-04 ended
URJ200 —
71876-60150-C0 note Cover, Reclining Adjuster Inside, LH
2015-08 → 2017-08 ended
URJ200 —
71876-60150-E7 note Cover, Reclining Adjuster Inside, LH
2017-08 → 2019-08 ended
URJ200 —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-60140 Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2007-09 → 2012-01 ended
URJ200 —
71876-60140 Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2012-01 → 2015-08 ended
URJ200 —
71876-60140 Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2015-08 → 2021-04 ended
URJ200 —
71910A — Headrest Assy, Front Seat
71910-60700-B0 note Headrest Assy, Front Seat
2007-09 → 2010-08 ended
URJ200 —
71910-60700-E0 note Headrest Assy, Front Seat
2007-09 → 2010-08 ended
URJ200 —
71910-60701-B1 note Headrest Assy, Front Seat
2010-08 → 2012-01 ended
URJ200 —
71910-60701-E1 note Headrest Assy, Front Seat
2010-08 → 2012-01 ended
URJ200 —
71910-60A30-A1 note Headrest Assy, Front Seat
2012-01 → 2015-08 ended
URJ200 —
71910-60A30-C0 note Headrest Assy, Front Seat
2012-01 → 2015-08 ended
URJ200 —
71910-60A30-A5 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60A30-C2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60A30-C2 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60A30-C2 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60A30-C3 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60A30-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60A30-E0 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60A30-E0 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60A30-E1 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C70-A3 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C70-A3 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C70-C3 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-C3 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C70-E1 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C80-A2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C80-C2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C80-C2 note Headrest Assy, Front Seat
2017-08 → 2021-04 ended
URJ200 —
71910-60C80-E0 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C80-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C80-E0 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C80-E1 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C90-A2 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C90-A2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C90-C2 note Headrest Assy, Front Seat
2017-08 → 2021-04 ended
URJ200 —
71910-60C90-C2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C90-C2 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C90-E0 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C90-E0 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C90-E0 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C90-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C90-E1 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60E50-C0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60E50-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60E50-E1 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60F00-C0 note Headrest Assy, Front Seat
2018-08 → 2020-10 ended
URJ200 —
71910-60F00-C0 note Headrest Assy, Front Seat
2018-08 → 2020-10 ended
URJ200 —
71910-60F00-E1 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60F00-E1 note Headrest Assy, Front Seat
2019-08 → 2020-10 ended
URJ200 —
71910-60F00-E1 note Headrest Assy, Front Seat
2019-08 → 2020-10 ended
URJ200 —
71910-60F00-E3 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60F00-E3 note Headrest Assy, Front Seat
2019-08 → 2020-10 ended
URJ200 —
71910-60F00-E3 note Headrest Assy, Front Seat
2019-08 → 2020-10 ended
URJ200 —
71931 — Support, Front Seat Headrest
71930-44020-B1 note Support, Front Seat Headrest
2007-09 → 2012-01 ended
URJ200 —
71930-44020-E2 note Support, Front Seat Headrest
2007-09 → 2012-01 ended
URJ200 —
71931-47010-B8 note Support, Front Seat Headrest
2007-09 → 2012-01 ended
URJ200 —
71931-47010-E8 note Support, Front Seat Headrest
2007-09 → 2012-01 ended
URJ200 —
71930-44020-A2 note Support, Front Seat Headrest
2012-01 → 2015-08 ended
URJ200 —
71930-44020-C0 note Support, Front Seat Headrest
2012-01 → 2015-08 ended
URJ200 —
71930-48010-A3 note Support, Front Seat Headrest
2012-01 → 2015-08 ended
URJ200 —
71930-48010-C0 note Support, Front Seat Headrest
2012-01 → 2015-08 ended
URJ200 —
71930-44020-21 note Support, Front Seat Headrest
2019-08 → 2021-04 ended
URJ200 —
71930-44020-21 note Support, Front Seat Headrest
2017-10 → 2019-08 ended
URJ200 —
71930-44020-A7 note Support, Front Seat Headrest
2015-08 → 2017-08 ended
URJ200 —
71930-44020-C0 note Support, Front Seat Headrest
2015-08 → 2017-08 ended
URJ200 —
71930-44020-C0 note Support, Front Seat Headrest
2017-08 → 2017-10 ended
URJ200 —
71930-44020-L2 note Support, Front Seat Headrest
2017-08 → 2019-08 ended
URJ200 —
71930-48010-A4 note Support, Front Seat Headrest
2015-08 → 2017-08 ended
URJ200 —
71930-48010-C0 note Support, Front Seat Headrest
2015-08 → 2017-08 ended
URJ200 —
71930-48010-C0 note Support, Front Seat Headrest
2019-08 → 2021-04 ended
URJ200 —
71930-48010-C0 note Support, Front Seat Headrest
2017-08 → 2019-08 ended
URJ200 —
71930-48010-E5 note Support, Front Seat Headrest
2017-08 → 2019-08 ended
URJ200 —
72403 — Bracket Sub-assy, Seat Frame Set
72403-60020 Bracket Sub-assy, Seat Frame Set
2015-08 → 2021-04 ended
URJ200 —
72760D — Adjuster Assy, Lumbar Support, LH
72760-30170 Adjuster Assy, Lumbar Support, LH
2007-09 → 2012-01 ended
URJ200 —
72760-30170 Adjuster Assy, Lumbar Support, LH
2012-01 → 2015-08 ended
URJ200 —
72760-30170 Adjuster Assy, Lumbar Support, LH
2015-08 → 2021-04 ended
URJ200 —
73920A — Airbag Assy, Front Seat, LH
73920-60020 Airbag Assy, Front Seat, LH
2007-09 → 2012-01 ended
URJ200 —
73920-60020 Airbag Assy, Front Seat, LH
2012-01 → 2015-08 ended
URJ200 —
73920-60020 Airbag Assy, Front Seat, LH
2015-08 → 2021-04 ended
URJ200 —
79121 — Bracket, NO.1 Seat Cushion
79121-60080-A3 note Bracket, NO.1 Seat Cushion
2015-08 → 2017-08 ended
URJ200 —
79121-60080-C0 note Bracket, NO.1 Seat Cushion
2015-08 → 2017-08 ended
URJ200 —
79121-60080-C0 note Bracket, NO.1 Seat Cushion
2019-08 → 2021-04 ended
URJ200 —
79121-60080-C0 note Bracket, NO.1 Seat Cushion
2017-08 → 2019-08 ended
URJ200 —
79121-60080-E1 note Bracket, NO.1 Seat Cushion
2017-08 → 2019-08 ended
URJ200 —
79122-60020-A3 note Bracket, NO.1 Seat Cushion
2015-08 → 2017-08 ended
URJ200 —
79122-60020-C0 note Bracket, NO.1 Seat Cushion
2017-08 → 2019-08 ended
URJ200 —
79122-60020-C0 note Bracket, NO.1 Seat Cushion
2015-08 → 2017-08 ended
URJ200 —
79122-60020-C0 note Bracket, NO.1 Seat Cushion
2019-08 → 2021-04 ended
URJ200 —
79122-60020-E1 note Bracket, NO.1 Seat Cushion
2017-08 → 2019-08 ended
URJ200 —
82711F — Clamp, Wiring Harness
82711-10070 Clamp, Wiring Harness
2007-09 → 2012-01 ended
URJ200 —
82711-10070 Clamp, Wiring Harness
2012-01 → 2015-08 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2019-08 → 2021-04 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2015-08 → 2016-08 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2017-08 → 2021-04 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2017-08 → 2021-04 ended
URJ200 —
82711-10070 Clamp, Wiring Harness
2016-08 → 2017-08 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2015-08 → 2016-08 ended
URJ200 —
82711-10070 Clamp, Wiring Harness
2015-08 → 2016-08 ended
URJ200 —
82711-10070 Clamp, Wiring Harness
2017-08 → 2021-04 ended
URJ200 —
85822 — Motor Assy, Power Seat Slide, LH
85801-42020 Motor Assy, Power Seat Slide, LH
2015-08 → 2021-04 ended
URJ200 —
85863 — Blower, Seat Climate Control, LH
85863-60010 Blower, Seat Climate Control, LH
2012-01 → 2015-08 ended
URJ200 —
85863-60050 Blower, Seat Climate Control, LH
2015-08 → 2021-04 ended
URJ200 —
85865 — Controller, Seat Climate Control,LH
85865-60030 Controller, Seat Climate Control,LH
2012-01 → 2015-08 ended
URJ200 —
85865-60030 Controller, Seat Climate Control,LH
2015-08 → 2021-04 ended
URJ200 —
85865A — Controller, Seat Climate Control, LH
85865-60040 Controller, Seat Climate Control, LH
2012-01 → 2015-08 ended
URJ200 —
85865-60040 Controller, Seat Climate Control, LH
2015-08 → 2021-04 ended
URJ200 —
87501D — Control Sub-assy, Seat Heater
87501-60010 Control Sub-assy, Seat Heater
2007-09 → 2011-12 ended
URJ200 —
87501-60100 Control Sub-assy, Seat Heater
2015-08 → 2021-04 ended
URJ200 —
87510L — Heater Assy, Front Seat Cushion, LH
87510-60400 Heater Assy, Front Seat Cushion, LH
2007-09 → 2012-01 ended
URJ200 —
87510-60610 Heater Assy, Front Seat Cushion, LH
2012-01 → 2013-04 ended
URJ200 —
87510-60611 Heater Assy, Front Seat Cushion, LH
2013-04 → 2015-08 ended
URJ200 —
87510-60670 Heater Assy, Front Seat Cushion, LH
2015-08 → 2017-02 ended
URJ200 —
87510-60671 Heater Assy, Front Seat Cushion, LH
2017-03 → 2021-04 ended
URJ200 —
87510N — Heater Assy, Front Seatback, LH
87510-60280 Heater Assy, Front Seatback, LH
2007-09 → 2012-01 ended
URJ200 —
87510-60590 Heater Assy, Front Seatback, LH
2012-01 → 2015-08 ended
URJ200 —
87510-60590 Heater Assy, Front Seatback, LH
2015-08 → 2021-04 ended
URJ200 —
88921D — Filter, Air, NO.1
88921-60010 Filter, Air, NO.1
2012-01 → 2015-08 ended
URJ200 —
88921-60010 Filter, Air, NO.1
2015-08 → 2021-04 ended
URJ200 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
