Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

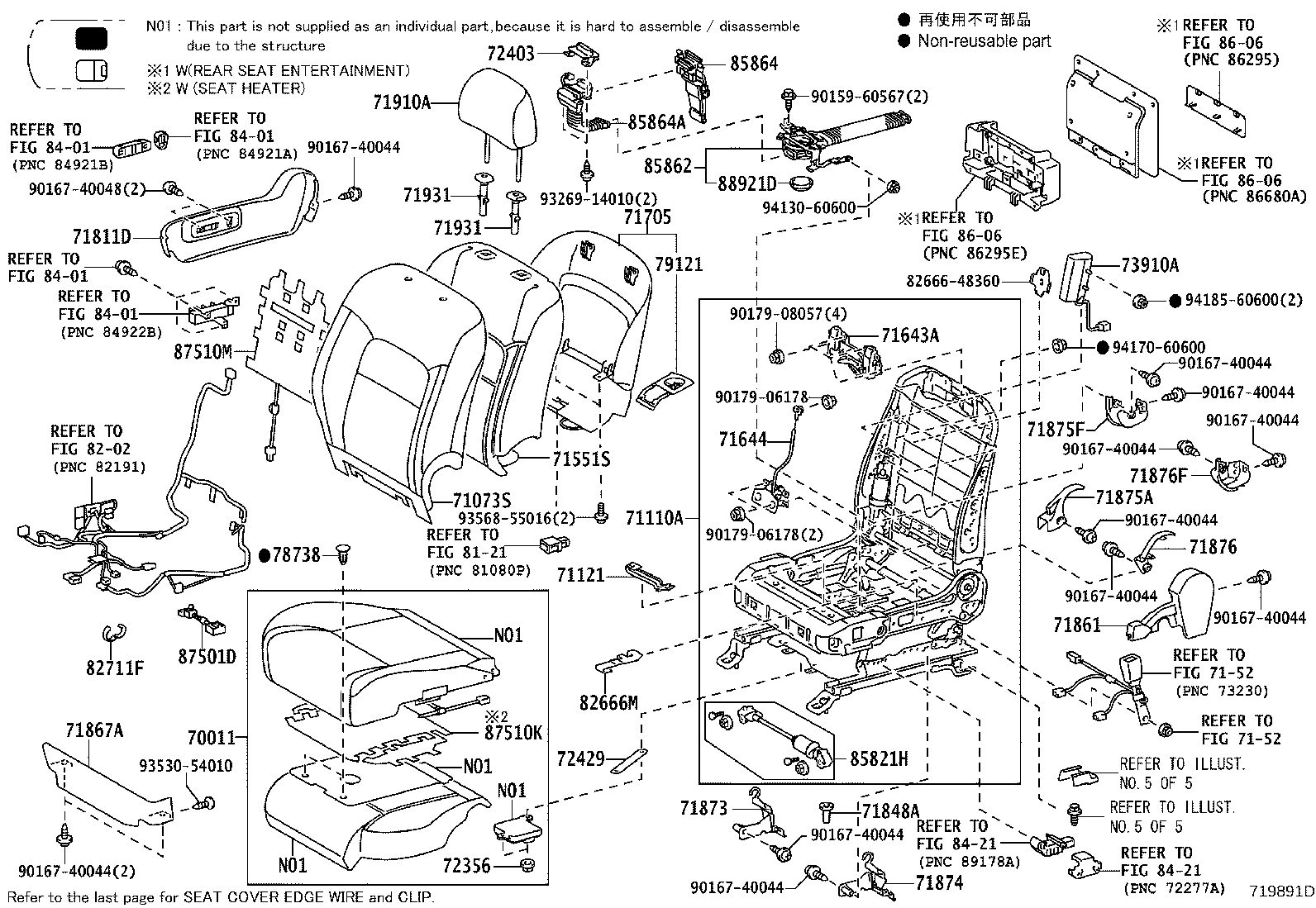

Exploded illustration 719891D 9356855016 — not listed in this catalogue 71910A — HEADREST ASSY, FRONT SEAT (58 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (19 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (19 parts) 9016740044 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (9 parts) 8421 — not listed in this catalogue 8421 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8121 — not listed in this catalogue 72429 — PLATE, FRONT SEAT ADJUSTER, RH (3 parts) 87510K — HEATER ASSY, FRONT SEAT CUSHION, RH (3 parts) 82711F — CLAMP, WIRING HARNESS (10 parts) 87501D — CONTROL SUB-ASSY, SEAT HEATER (2 parts) 70011 — CUSHION ASSY, NO.1 SEAT (22 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (3 parts) 72356 — NUT, SIDE SUPPORT, RH (3 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (3 parts) 9016740044 — not listed in this catalogue 71848A — CAP, SEAT ADJUSTER COVER, RH (3 parts) 9016740044 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (9 parts) 9016740044 — not listed in this catalogue 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (3 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (9 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (9 parts) 9016740044 — not listed in this catalogue 85864 — CONTROLLER, SEAT CLIMATE CONTROL,RH (2 parts) 9413060600 — not listed in this catalogue 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (3 parts) 78738 — PIN, SUB SEAT CUSHION PIN (3 parts) 9353054010 — not listed in this catalogue 9016740044 — not listed in this catalogue 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (9 parts) 9016740048 — not listed in this catalogue 9417060600 — not listed in this catalogue 9418560600 — not listed in this catalogue 73910A — AIRBAG ASSY, FRONT SEAT, RH (3 parts) 85864A — CONTROLLER, SEAT CLIMATE CONTROL, RH (2 parts) 9326914010 — not listed in this catalogue 72403 — BRACKET SUB-ASSY, SEAT FRAME SET (1 parts) 8202 — not listed in this catalogue 8266648360 — not listed in this catalogue 9017908057 — not listed in this catalogue 71643A — UNIT, ACTIVE HEADREST, UPR (3 parts) 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 71644 — UNIT, ACTIVE HEADREST, LWR (3 parts) 71110A — FRAME ASSY, FRONT SEAT W/ADJUSTER, RH (12 parts) 71121 — BRACKET, FRONT SEAT CUSHION, RH (3 parts) 9015960567 — not listed in this catalogue 85862 — BLOWER, SEAT CLIMATE CONTROL, RH (2 parts) 88921D — FILTER, AIR, NO.1 (2 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 71705 — BOARD SUB-ASSY, FRONT SEATBACK, RH (9 parts) 79121 — BRACKET, NO.1 SEAT CUSHION (10 parts) 82666M — HOLDER, CONNECTOR (3 parts) 87510M — HEATER ASSY, FRONT SEATBACK, RH (3 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (55 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (10 parts) 8606 — not listed in this catalogue 8606 — not listed in this catalogue 8606 — not listed in this catalogue 85821H — MOTOR ASSY, POWER SEAT SLIDE, RH (1 parts)
719891D · 37 callouts, 36 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
307 parts on this figure
Part number Description Fitment Price
70011 — Cushion Assy, NO.1 Seat
71001-60J60-B0 note Cushion Assy, NO.1 Seat
2007-09 → 2012-01 ended
URJ200 —
71001-60J60-E0 note Cushion Assy, NO.1 Seat
2007-09 → 2012-01 ended
URJ200 —
71001-60K90-A0 note Cushion Assy, NO.1 Seat
2012-01 → 2015-08 ended
URJ200 —
71001-60K90-C0 note Cushion Assy, NO.1 Seat
2012-01 → 2015-08 ended
URJ200 —
71001-6BX30-A0 note Cushion Assy, NO.1 Seat
2015-08 → 2017-08 ended
URJ200 —
71001-6BX30-C0 note Cushion Assy, NO.1 Seat
2015-08 → 2019-08 ended
URJ200 —
71001-6BX30-C1 note Cushion Assy, NO.1 Seat
2019-08 → 2021-04 ended
URJ200 —
71001-6BX30-C2 note Cushion Assy, NO.1 Seat
2019-08 → 2021-04 ended
URJ200 —
71001-6BX30-E0 note Cushion Assy, NO.1 Seat
2015-08 → 2017-08 ended
URJ200 —
71001-6BX30-E0 note Cushion Assy, NO.1 Seat
2017-08 → 2019-08 ended
URJ200 —
71001-6BX30-E1 note Cushion Assy, NO.1 Seat
2017-08 → 2019-08 ended
URJ200 —
71001-6BX30-E2 note Cushion Assy, NO.1 Seat
2019-08 → 2021-04 ended
URJ200 —
71001-6BX40-A0 note Cushion Assy, NO.1 Seat
2015-08 → 2017-08 ended
URJ200 —
71001-6BX40-C0 note Cushion Assy, NO.1 Seat
2015-08 → 2019-03 ended
URJ200 —
71001-6BX40-E0 note Cushion Assy, NO.1 Seat
2017-08 → 2019-03 ended
URJ200 —
71001-6BX40-E0 note Cushion Assy, NO.1 Seat
2015-08 → 2017-08 ended
URJ200 —
71001-6BX40-E1 note Cushion Assy, NO.1 Seat
2017-08 → 2019-03 ended
URJ200 —
71001-6BX41-C0 note Cushion Assy, NO.1 Seat
2019-04 → 2019-08 ended
URJ200 —
71001-6BX41-C1 note Cushion Assy, NO.1 Seat
2019-08 → 2021-04 ended
URJ200 —
71001-6BX41-E0 note Cushion Assy, NO.1 Seat
2019-07 → 2019-08 ended
URJ200 —
71001-6BX41-E1 note Cushion Assy, NO.1 Seat
2019-07 → 2019-08 ended
URJ200 —
71001-6BX41-E2 note Cushion Assy, NO.1 Seat
2019-08 → 2021-04 ended
URJ200 —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-6A670-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2007-09 → 2009-07 ended
URJ200 —
71073-6A670-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2007-09 → 2009-07 ended
URJ200 —
71073-6A671-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2009-07 → 2010-08 ended
URJ200 —
71073-6A671-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2009-07 → 2010-08 ended
URJ200 —
71073-6A672-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-08 → 2012-01 ended
URJ200 —
71073-6A672-E2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-08 → 2012-01 ended
URJ200 —
71073-60D90-A1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-01 → 2015-08 ended
URJ200 —
71073-60D90-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-01 → 2015-08 ended
URJ200 —
71073-60L40-A2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L40-A2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71073-60L40-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L40-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60L40-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60L40-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71073-60L40-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71073-60L40-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60L40-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60L40-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L40-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71073-60L40-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60L40-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60L40-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71073-60L40-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71073-60L60-A2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L60-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L60-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71073-60L60-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71073-60L60-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L60-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71073-60L61-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-01 → 2021-04 ended
URJ200 —
71073-60L61-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60L61-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71073-60L61-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71073-60L70-A2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71073-60L70-A2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L70-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71073-60L70-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71073-60L70-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L70-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71073-60L70-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71073-60L70-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60L70-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
URJ200 —
71073-60L71-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-01 → 2021-04 ended
URJ200 —
71073-60L71-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71073-60L71-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60L71-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-01 → 2019-08 ended
URJ200 —
71073-60M00-A2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60M00-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71073-60M00-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60M00-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60M00-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60M00-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71073-60M00-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71073-60M00-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71073-60M00-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2019-08 ended
URJ200 —
71110A — Frame Assy, Front Seat W/Adjuster, RH
71110-60460 Frame Assy, Front Seat W/Adjuster, RH
2007-09 → 2009-07 ended
URJ200 —
71110-60461 Frame Assy, Front Seat W/Adjuster, RH
2009-07 → 2012-01 ended
URJ200 —
71110-60580 Frame Assy, Front Seat W/Adjuster, RH
2012-01 → 2012-12 ended
URJ200 —
71110-60581 Frame Assy, Front Seat W/Adjuster, RH
2012-12 → 2015-08 ended
URJ200 —
71110-60830 Frame Assy, Front Seat W/Adjuster, RH
2017-08 → 2021-04 ended
URJ200 —
71110-60830 Frame Assy, Front Seat W/Adjuster, RH
2015-08 → 2016-08 ended
URJ200 —
71110-60A60 note Frame Assy, Front Seat W/Adjuster, RH
2015-08 → 2016-08 ended
URJ200 —
71110-60A60 note Frame Assy, Front Seat W/Adjuster, RH
2015-08 → 2016-08 ended
URJ200 —
71110-60A60 Frame Assy, Front Seat W/Adjuster, RH
2016-08 → 2017-08 ended
URJ200 —
71110-60A60 note Frame Assy, Front Seat W/Adjuster, RH
2017-08 → 2021-04 ended
URJ200 —
71110-60A60 note Frame Assy, Front Seat W/Adjuster, RH
2017-08 → 2021-04 ended
URJ200 —
71110-60A60 note Frame Assy, Front Seat W/Adjuster, RH
2019-08 → 2021-04 ended
URJ200 —
71121 — Bracket, Front Seat Cushion, RH
71121-60140 Bracket, Front Seat Cushion, RH
2007-09 → 2012-01 ended
URJ200 —
71121-60140 Bracket, Front Seat Cushion, RH
2012-01 → 2015-08 ended
URJ200 —
71121-60140 Bracket, Front Seat Cushion, RH
2015-08 → 2021-04 ended
URJ200 —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71505-60100 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2007-09 → 2012-01 ended
URJ200 —
71505-60170 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2012-01 → 2015-08 ended
URJ200 —
71505-60170 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71505-60170 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2021-04 ended
URJ200 —
71505-60300 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2019-08 → 2021-04 ended
URJ200 —
71505-60300 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2021-04 ended
URJ200 —
71505-60300 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-08 → 2017-08 ended
URJ200 —
71505-60300 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2021-04 ended
URJ200 —
71505-60300 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71505-60300 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2015-08 → 2016-08 ended
URJ200 —
71643A — Unit, Active Headrest, Upr
71643-12011 Unit, Active Headrest, Upr
2007-09 → 2012-01 ended
URJ200 —
71643-12011 Unit, Active Headrest, Upr
2012-01 → 2015-08 ended
URJ200 —
71643-12011 Unit, Active Headrest, Upr
2015-08 → 2021-04 ended
URJ200 —
71644 — Unit, Active Headrest, Lwr
71644-12030 Unit, Active Headrest, Lwr
2007-09 → 2012-01 ended
URJ200 —
71644-12030 Unit, Active Headrest, Lwr
2012-01 → 2015-08 ended
URJ200 —
71644-12030 Unit, Active Headrest, Lwr
2015-08 → 2021-04 ended
URJ200 —
71705 — Board Sub-assy, Front Seatback, RH
71705-60280-B0 note Board Sub-assy, Front Seatback, RH
2007-09 → 2012-01 ended
URJ200 —
71705-60280-E0 note Board Sub-assy, Front Seatback, RH
2007-09 → 2012-01 ended
URJ200 —
71705-60340-A1 note Board Sub-assy, Front Seatback, RH
2012-01 → 2015-08 ended
URJ200 —
71705-60340-C0 note Board Sub-assy, Front Seatback, RH
2012-01 → 2015-08 ended
URJ200 —
71705-60380-A0 note Board Sub-assy, Front Seatback, RH
2015-08 → 2017-08 ended
URJ200 —
71705-60380-C0 note Board Sub-assy, Front Seatback, RH
2019-08 → 2021-04 ended
URJ200 —
71705-60380-C0 note Board Sub-assy, Front Seatback, RH
2015-08 → 2017-08 ended
URJ200 —
71705-60380-C0 note Board Sub-assy, Front Seatback, RH
2017-08 → 2019-08 ended
URJ200 —
71705-60380-E0 note Board Sub-assy, Front Seatback, RH
2017-08 → 2019-08 ended
URJ200 —
71811D — Shield, Front Seat Cushion, RH
71811-28360-B1 note Shield, Front Seat Cushion, RH
2007-09 → 2012-01 ended
URJ200 —
71811-28360-E2 note Shield, Front Seat Cushion, RH
2007-09 → 2012-01 ended
URJ200 —
71811-28360-A0 note Shield, Front Seat Cushion, RH
2012-01 → 2015-08 ended
URJ200 —
71811-28360-C0 note Shield, Front Seat Cushion, RH
2012-01 → 2015-08 ended
URJ200 —
71811-60380-A0 note Shield, Front Seat Cushion, RH
2015-08 → 2017-08 ended
URJ200 —
71811-60380-C0 note Shield, Front Seat Cushion, RH
2019-08 → 2021-04 ended
URJ200 —
71811-60380-C0 note Shield, Front Seat Cushion, RH
2017-08 → 2019-08 ended
URJ200 —
71811-60380-C0 note Shield, Front Seat Cushion, RH
2015-08 → 2017-08 ended
URJ200 —
71811-60380-E0 note Shield, Front Seat Cushion, RH
2017-08 → 2019-08 ended
URJ200 —
71848A — Cap, Seat Adjuster Cover, RH
71848-33010 Cap, Seat Adjuster Cover, RH
2007-09 → 2012-01 ended
URJ200 —
71848-33010 Cap, Seat Adjuster Cover, RH
2012-01 → 2015-08 ended
URJ200 —
71848-33010 Cap, Seat Adjuster Cover, RH
2015-08 → 2021-04 ended
URJ200 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-60110-B1 note Shield, Front Seat Cushion, Inner RH
2007-09 → 2012-01 ended
URJ200 —
71861-60110-E3 note Shield, Front Seat Cushion, Inner RH
2007-09 → 2012-01 ended
URJ200 —
71861-60110-A2 note Shield, Front Seat Cushion, Inner RH
2012-01 → 2015-08 ended
URJ200 —
71861-60110-C0 note Shield, Front Seat Cushion, Inner RH
2012-01 → 2015-08 ended
URJ200 —
71861-60110-A6 note Shield, Front Seat Cushion, Inner RH
2015-08 → 2017-08 ended
URJ200 —
71861-60110-C0 note Shield, Front Seat Cushion, Inner RH
2015-08 → 2017-08 ended
URJ200 —
71861-60110-C0 note Shield, Front Seat Cushion, Inner RH
2019-08 → 2021-04 ended
URJ200 —
71861-60110-C0 note Shield, Front Seat Cushion, Inner RH
2017-08 → 2019-08 ended
URJ200 —
71861-60110-E6 note Shield, Front Seat Cushion, Inner RH
2017-08 → 2019-08 ended
URJ200 —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-60020-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
2007-09 → 2012-01 ended
URJ200 —
71867-60020-E2 note Shield, Front Seat Cushion, Inner NO.1 RH
2007-09 → 2012-01 ended
URJ200 —
71867-60040-A2 note Shield, Front Seat Cushion, Inner NO.1 RH
2012-01 → 2015-08 ended
URJ200 —
71867-60040-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2012-01 → 2015-08 ended
URJ200 —
71867-60040-A4 note Shield, Front Seat Cushion, Inner NO.1 RH
2015-08 → 2017-08 ended
URJ200 —
71867-60040-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2015-08 → 2017-08 ended
URJ200 —
71867-60040-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2017-08 → 2019-08 ended
URJ200 —
71867-60040-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2019-08 → 2021-04 ended
URJ200 —
71867-60040-E1 note Shield, Front Seat Cushion, Inner NO.1 RH
2017-08 → 2019-08 ended
URJ200 —
71873 — Shield, Front Seat Cushion, Lower RH
71874-30020 Shield, Front Seat Cushion, Lower RH
2007-09 → 2012-01 ended
URJ200 —
71874-30020 Shield, Front Seat Cushion, Lower RH
2012-01 → 2015-08 ended
URJ200 —
71874-30020 Shield, Front Seat Cushion, Lower RH
2015-08 → 2021-04 ended
URJ200 —
71874 — Shield, Front Seat Cushion, Lower LH
71873-30070 Shield, Front Seat Cushion, Lower LH
2007-09 → 2012-01 ended
URJ200 —
71873-30070 Shield, Front Seat Cushion, Lower LH
2012-01 → 2015-08 ended
URJ200 —
71873-30070 Shield, Front Seat Cushion, Lower LH
2015-08 → 2021-04 ended
URJ200 —
71875A — Cover, Reclining Adjuster Inside, RH
71875-58030-B1 note Cover, Reclining Adjuster Inside, RH
2007-09 → 2012-01 ended
URJ200 —
71875-58030-E2 note Cover, Reclining Adjuster Inside, RH
2007-09 → 2012-01 ended
URJ200 —
71875-58030-A3 note Cover, Reclining Adjuster Inside, RH
2012-01 → 2015-08 ended
URJ200 —
71875-58030-C0 note Cover, Reclining Adjuster Inside, RH
2012-01 → 2015-08 ended
URJ200 —
71875-58030-A6 note Cover, Reclining Adjuster Inside, RH
2015-08 → 2017-08 ended
URJ200 —
71875-58030-C0 note Cover, Reclining Adjuster Inside, RH
2015-08 → 2017-08 ended
URJ200 —
71875-58030-C0 note Cover, Reclining Adjuster Inside, RH
2017-08 → 2019-08 ended
URJ200 —
71875-58030-C0 note Cover, Reclining Adjuster Inside, RH
2019-08 → 2021-04 ended
URJ200 —
71875-58030-E6 note Cover, Reclining Adjuster Inside, RH
2017-08 → 2019-08 ended
URJ200 —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-58050 Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2007-09 → 2012-01 ended
URJ200 —
71875-58050 Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2012-01 → 2015-08 ended
URJ200 —
71875-58050 Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2015-08 → 2021-04 ended
URJ200 —
71876 — Cover, Reclining Adjuster Inside, LH
71875-60150-B1 note Cover, Reclining Adjuster Inside, LH
2007-09 → 2012-01 ended
URJ200 —
71875-60150-E4 note Cover, Reclining Adjuster Inside, LH
2007-09 → 2012-01 ended
URJ200 —
71875-60150-A2 note Cover, Reclining Adjuster Inside, LH
2012-01 → 2015-08 ended
URJ200 —
71875-60150-C0 note Cover, Reclining Adjuster Inside, LH
2012-01 → 2015-08 ended
URJ200 —
71875-60150-A7 note Cover, Reclining Adjuster Inside, LH
2015-08 → 2017-08 ended
URJ200 —
71875-60150-C0 note Cover, Reclining Adjuster Inside, LH
2015-08 → 2017-08 ended
URJ200 —
71875-60150-C0 note Cover, Reclining Adjuster Inside, LH
2017-08 → 2019-08 ended
URJ200 —
71875-60150-C0 note Cover, Reclining Adjuster Inside, LH
2019-08 → 2021-04 ended
URJ200 —
71875-60150-E9 note Cover, Reclining Adjuster Inside, LH
2017-08 → 2019-08 ended
URJ200 —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876-58050 Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2007-09 → 2012-01 ended
URJ200 —
71876-58050 Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2012-01 → 2015-08 ended
URJ200 —
71876-58050 Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2015-08 → 2021-04 ended
URJ200 —
71910A — Headrest Assy, Front Seat
71910-60700-B0 note Headrest Assy, Front Seat
2007-09 → 2010-08 ended
URJ200 —
71910-60700-E0 note Headrest Assy, Front Seat
2007-09 → 2010-08 ended
URJ200 —
71910-60701-B1 note Headrest Assy, Front Seat
2010-08 → 2012-01 ended
URJ200 —
71910-60701-E1 note Headrest Assy, Front Seat
2010-08 → 2012-01 ended
URJ200 —
71910-60A30-A1 note Headrest Assy, Front Seat
2012-01 → 2015-08 ended
URJ200 —
71910-60A30-C0 note Headrest Assy, Front Seat
2012-01 → 2015-08 ended
URJ200 —
71910-60A30-A5 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60A30-C2 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60A30-C2 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60A30-C2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60A30-C3 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60A30-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60A30-E0 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60A30-E0 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60A30-E1 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C70-A3 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C70-A3 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C70-C2 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C70-C3 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-C3 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C70-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C70-E1 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C80-A2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C80-C2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C80-C2 note Headrest Assy, Front Seat
2017-08 → 2021-04 ended
URJ200 —
71910-60C80-E0 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C80-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C80-E0 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C80-E1 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C90-A2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C90-A2 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C90-C2 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C90-C2 note Headrest Assy, Front Seat
2017-08 → 2021-04 ended
URJ200 —
71910-60C90-C2 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C90-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60C90-E0 note Headrest Assy, Front Seat
2015-08 → 2016-08 ended
URJ200 —
71910-60C90-E0 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60C90-E0 note Headrest Assy, Front Seat
2016-08 → 2017-08 ended
URJ200 —
71910-60C90-E1 note Headrest Assy, Front Seat
2017-08 → 2019-08 ended
URJ200 —
71910-60E50-C0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60E50-E0 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60E50-E1 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60F00-C0 note Headrest Assy, Front Seat
2018-08 → 2020-10 ended
URJ200 —
71910-60F00-C0 note Headrest Assy, Front Seat
2018-08 → 2020-10 ended
URJ200 —
71910-60F00-E1 note Headrest Assy, Front Seat
2019-08 → 2020-10 ended
URJ200 —
71910-60F00-E1 note Headrest Assy, Front Seat
2019-08 → 2020-10 ended
URJ200 —
71910-60F00-E1 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71910-60F00-E3 note Headrest Assy, Front Seat
2019-08 → 2020-10 ended
URJ200 —
71910-60F00-E3 note Headrest Assy, Front Seat
2019-08 → 2020-10 ended
URJ200 —
71910-60F00-E3 note Headrest Assy, Front Seat
2019-08 → 2021-04 ended
URJ200 —
71931 — Support, Front Seat Headrest
71930-44020-B1 note Support, Front Seat Headrest
2007-09 → 2012-01 ended
URJ200 —
71930-44020-E2 note Support, Front Seat Headrest
2007-09 → 2012-01 ended
URJ200 —
71931-47010-B8 note Support, Front Seat Headrest
2007-09 → 2012-01 ended
URJ200 —
71931-47010-E8 note Support, Front Seat Headrest
2007-09 → 2012-01 ended
URJ200 —
71930-44020-A2 note Support, Front Seat Headrest
2012-01 → 2015-08 ended
URJ200 —
71930-44020-C0 note Support, Front Seat Headrest
2012-01 → 2015-08 ended
URJ200 —
71930-48010-A3 note Support, Front Seat Headrest
2012-01 → 2015-08 ended
URJ200 —
71930-48010-C0 note Support, Front Seat Headrest
2012-01 → 2015-08 ended
URJ200 —
71930-44020-21 note Support, Front Seat Headrest
2019-08 → 2021-04 ended
URJ200 —
71930-44020-21 note Support, Front Seat Headrest
2017-10 → 2019-08 ended
URJ200 —
71930-44020-A7 note Support, Front Seat Headrest
2015-08 → 2017-08 ended
URJ200 —
71930-44020-C0 note Support, Front Seat Headrest
2015-08 → 2017-08 ended
URJ200 —
71930-44020-C0 note Support, Front Seat Headrest
2017-08 → 2017-10 ended
URJ200 —
71930-44020-L2 note Support, Front Seat Headrest
2017-08 → 2019-08 ended
URJ200 —
71930-48010-A4 note Support, Front Seat Headrest
2015-08 → 2017-08 ended
URJ200 —
71930-48010-C0 note Support, Front Seat Headrest
2017-08 → 2019-08 ended
URJ200 —
71930-48010-C0 note Support, Front Seat Headrest
2015-08 → 2017-08 ended
URJ200 —
71930-48010-C0 note Support, Front Seat Headrest
2019-08 → 2021-04 ended
URJ200 —
71930-48010-E5 note Support, Front Seat Headrest
2017-08 → 2019-08 ended
URJ200 —
72356 — Nut, Side Support, RH
72356-33010 Nut, Side Support, RH
2007-09 → 2012-01 ended
URJ200 —
72356-33010 Nut, Side Support, RH
2012-01 → 2015-08 ended
URJ200 —
72356-33010 Nut, Side Support, RH
2015-08 → 2021-04 ended
URJ200 —
72403 — Bracket Sub-assy, Seat Frame Set
72403-60020 Bracket Sub-assy, Seat Frame Set
2015-08 → 2021-04 ended
URJ200 —
72429 — Plate, Front Seat Adjuster, RH
72439-33010 Plate, Front Seat Adjuster, RH
2007-09 → 2012-01 ended
URJ200 —
72439-33010 Plate, Front Seat Adjuster, RH
2012-01 → 2015-08 ended
URJ200 —
72439-33010 Plate, Front Seat Adjuster, RH
2015-08 → 2021-04 ended
URJ200 —
73910A — Airbag Assy, Front Seat, RH
73910-60020 Airbag Assy, Front Seat, RH
2007-09 → 2012-01 ended
URJ200 —
73910-60020 Airbag Assy, Front Seat, RH
2012-01 → 2015-08 ended
URJ200 —
73910-60020 Airbag Assy, Front Seat, RH
2015-08 → 2021-04 ended
URJ200 —
78738 — Pin, Sub Seat Cushion Pin
78738-0W010 Pin, Sub Seat Cushion Pin
2007-09 → 2012-01 ended
URJ200 —
78738-0W010 Pin, Sub Seat Cushion Pin
2012-01 → 2015-08 ended
URJ200 —
78738-0W010 Pin, Sub Seat Cushion Pin
2015-08 → 2021-04 ended
URJ200 —
79121 — Bracket, NO.1 Seat Cushion
79121-60080-A3 note Bracket, NO.1 Seat Cushion
2015-08 → 2017-08 ended
URJ200 —
79121-60080-C0 note Bracket, NO.1 Seat Cushion
2015-08 → 2017-08 ended
URJ200 —
79121-60080-C0 note Bracket, NO.1 Seat Cushion
2017-08 → 2019-08 ended
URJ200 —
79121-60080-C0 note Bracket, NO.1 Seat Cushion
2019-08 → 2021-04 ended
URJ200 —
79121-60080-E1 note Bracket, NO.1 Seat Cushion
2017-08 → 2019-08 ended
URJ200 —
79122-60020-A3 note Bracket, NO.1 Seat Cushion
2015-08 → 2017-08 ended
URJ200 —
79122-60020-C0 note Bracket, NO.1 Seat Cushion
2019-08 → 2021-04 ended
URJ200 —
79122-60020-C0 note Bracket, NO.1 Seat Cushion
2017-08 → 2019-08 ended
URJ200 —
79122-60020-C0 note Bracket, NO.1 Seat Cushion
2015-08 → 2017-08 ended
URJ200 —
79122-60020-E1 note Bracket, NO.1 Seat Cushion
2017-08 → 2019-08 ended
URJ200 —
82666M — Holder, Connector
82666-60650 Holder, Connector
2007-09 → 2012-01 ended
URJ200 —
82666-60650 Holder, Connector
2012-01 → 2015-08 ended
URJ200 —
82666-60650 Holder, Connector
2015-08 → 2021-04 ended
URJ200 —
82711F — Clamp, Wiring Harness
82711-10070 Clamp, Wiring Harness
2007-09 → 2012-01 ended
URJ200 —
82711-10070 Clamp, Wiring Harness
2012-01 → 2015-08 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2017-08 → 2021-04 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2019-08 → 2021-04 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2017-08 → 2021-04 ended
URJ200 —
82711-10070 Clamp, Wiring Harness
2017-08 → 2021-04 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2015-08 → 2016-08 ended
URJ200 —
82711-10070 note Clamp, Wiring Harness
2015-08 → 2016-08 ended
URJ200 —
82711-10070 Clamp, Wiring Harness
2015-08 → 2016-08 ended
URJ200 —
82711-10070 Clamp, Wiring Harness
2016-08 → 2017-08 ended
URJ200 —
85821H — Motor Assy, Power Seat Slide, RH
85801-60080 Motor Assy, Power Seat Slide, RH
2015-08 → 2021-04 ended
URJ200 —
85862 — Blower, Seat Climate Control, RH
85862-60010 Blower, Seat Climate Control, RH
2012-01 → 2015-08 ended
URJ200 —
85862-60060 Blower, Seat Climate Control, RH
2015-08 → 2021-04 ended
URJ200 —
85864 — Controller, Seat Climate Control,RH
85864-60030 Controller, Seat Climate Control,RH
2012-01 → 2015-08 ended
URJ200 —
85864-60030 Controller, Seat Climate Control,RH
2015-08 → 2021-04 ended
URJ200 —
85864A — Controller, Seat Climate Control, RH
85864-60040 Controller, Seat Climate Control, RH
2012-01 → 2015-08 ended
URJ200 —
85864-60040 Controller, Seat Climate Control, RH
2015-08 → 2021-04 ended
URJ200 —
87501D — Control Sub-assy, Seat Heater
87501-60010 Control Sub-assy, Seat Heater
2007-09 → 2011-12 ended
URJ200 —
87501-60100 Control Sub-assy, Seat Heater
2015-08 → 2021-04 ended
URJ200 —
87510K — Heater Assy, Front Seat Cushion, RH
87510-60661 note Heater Assy, Front Seat Cushion, RH
2017-03 → 2017-08 ended
URJ200 —
87510-60661 note Heater Assy, Front Seat Cushion, RH
2017-08 → 2021-04 ended
URJ200 —
87510-60661 note Heater Assy, Front Seat Cushion, RH
2019-08 → 2021-04 ended
URJ200 —
87510M — Heater Assy, Front Seatback, RH
87510-60280 Heater Assy, Front Seatback, RH
2007-09 → 2012-01 ended
URJ200 —
87510-60590 Heater Assy, Front Seatback, RH
2012-01 → 2015-08 ended
URJ200 —
87510-60590 Heater Assy, Front Seatback, RH
2015-08 → 2021-04 ended
URJ200 —
88921D — Filter, Air, NO.1
88921-60010 Filter, Air, NO.1
2012-01 → 2015-08 ended
URJ200 —
88921-60010 Filter, Air, NO.1
2015-08 → 2021-04 ended
URJ200 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
