Toyota Land Cruiser
2007-09 → present · chassis URJ200 · catalogue 791460 · United States
Supported model
Data version 2018-08
Radiator & Water Outlet

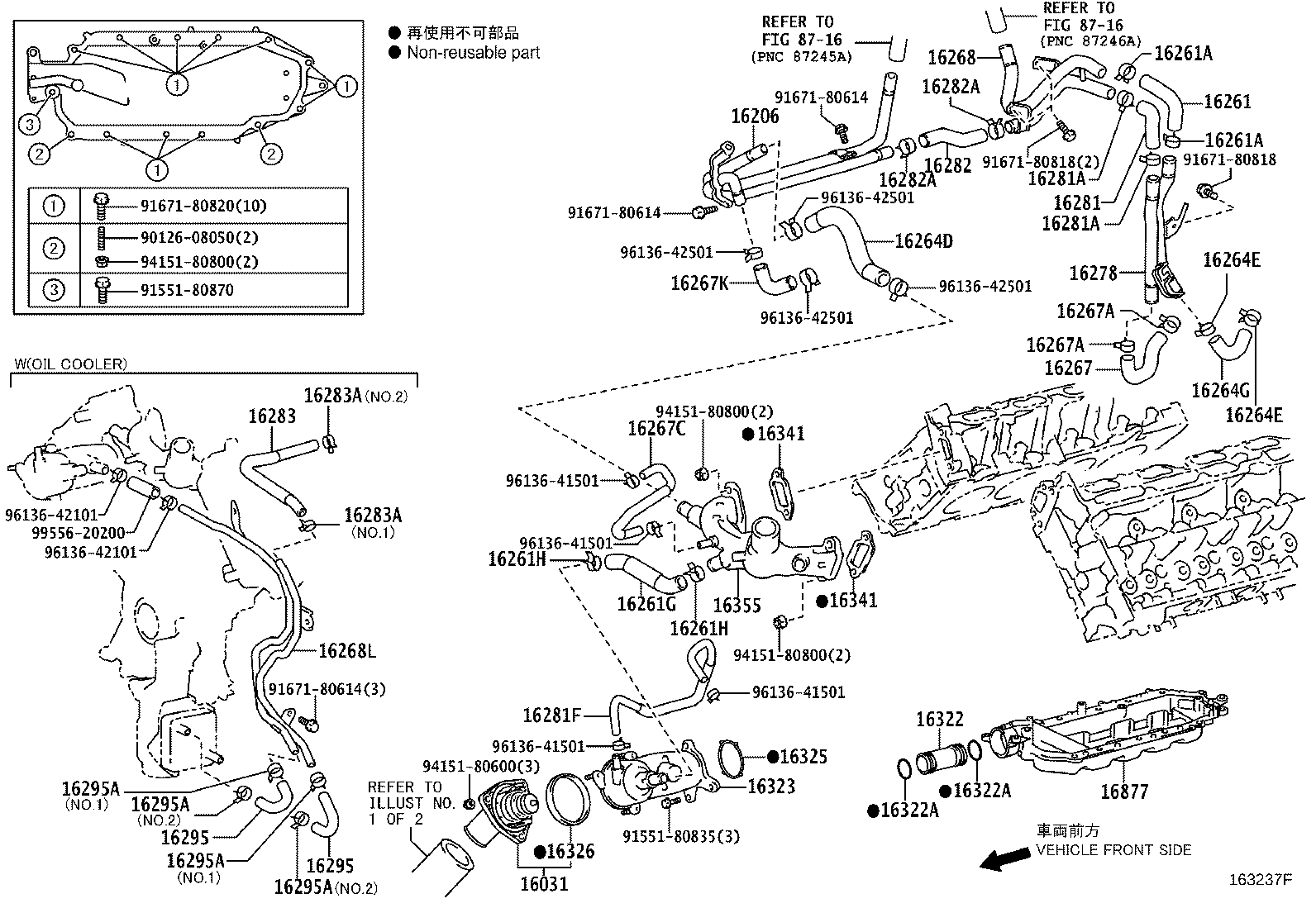

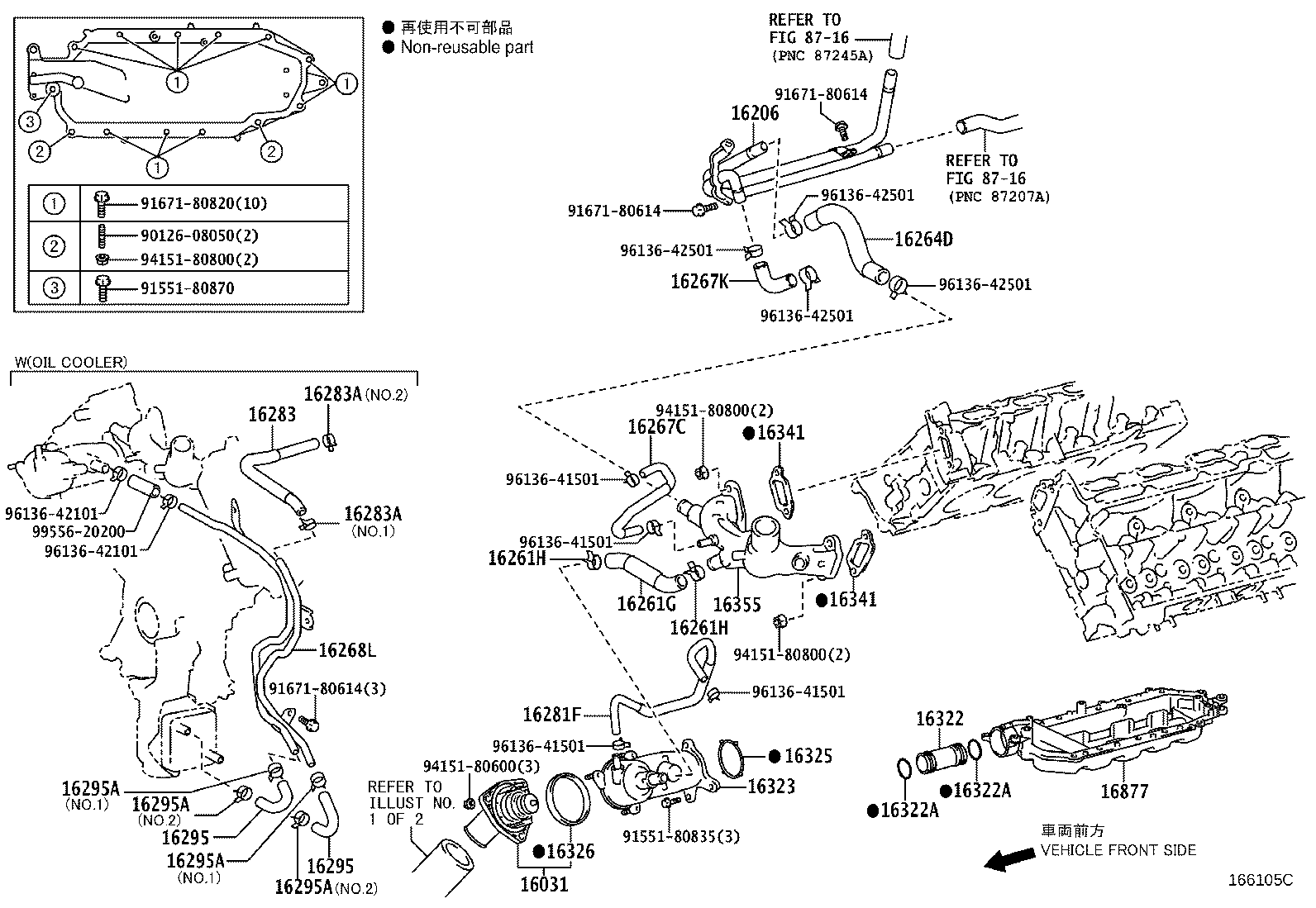

55 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264G | Hose, Water By-pass, NO.3 |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267C | Hose, Water By-pass, NO.4 |
| 16267K | Hose, Water By-pass, NO.3 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268L | Pipe, Water By-pass |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281F | Hose, Water By-pass, NO.5 |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16322 | Pipe, Water Inlet |
| 16322A | Ring, O(FOR WATER INLET) |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16341 | Gasket, Water Outlet |
| 16355 | Joint, Water By-pass, Front |
| 16361 | Fan |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16400R | Bushing(FOR RADIATOR) |
| 16400S | Collar(FOR RADIATOR) |
| 16401 | Cap Sub-assy, Radiator |
| 16453 | Plate, Radiator Side |
| 16454 | Plate, Radiator Side |
| 16455 | Bolt, Radiator Side Support Plate |
| 16465 | Packing, Radiator |
| 16465B | Packing, Radiator, NO.2 |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16547 | Bush, Radiator Support, NO.1 |
| 16548 | Bush, Radiator Support, NO.2 |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16567A | Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16711 | Shroud, Fan |
| 16877 | Cover, Heat Exchanger, NO.1 |
