Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

8 part groups · 2 illustrations

Illustrations

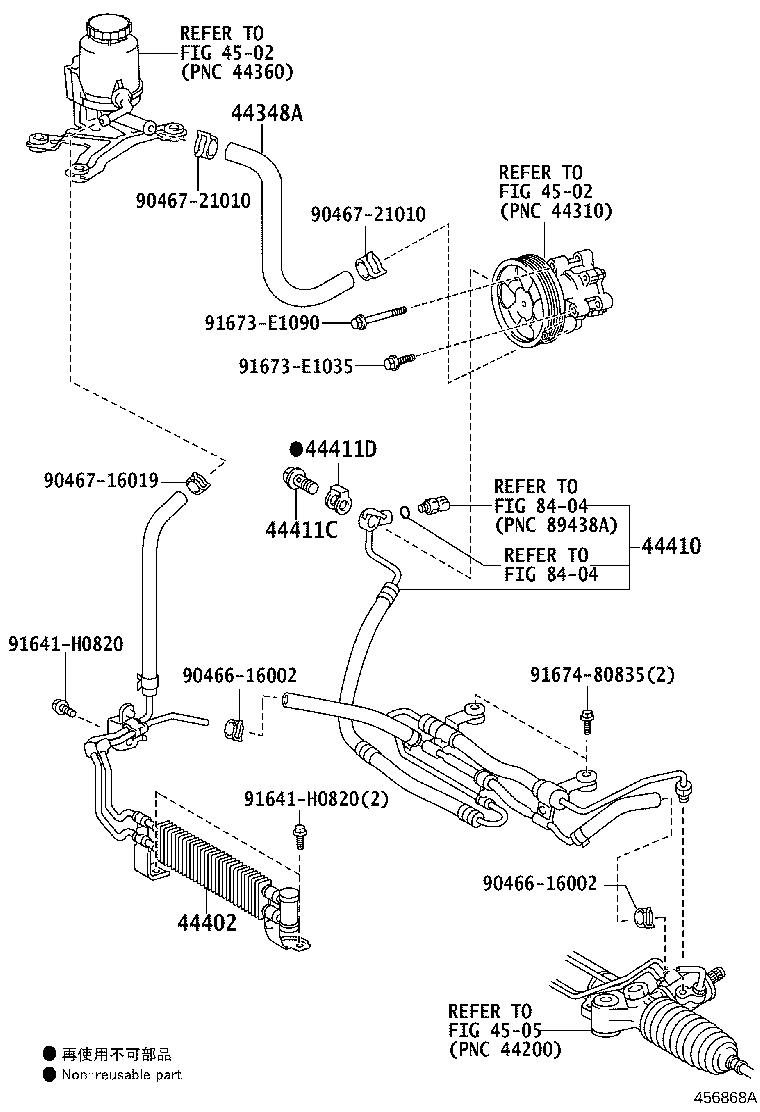

Figure 457202A 457202A 2007-09 → 2012-01 Figure 456868A 456868A 2012-01 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
