Toyota Land Cruiser
2007-09 → present · chassis URJ200 · catalogue 791460 · United States
Supported model
Data version 2018-08

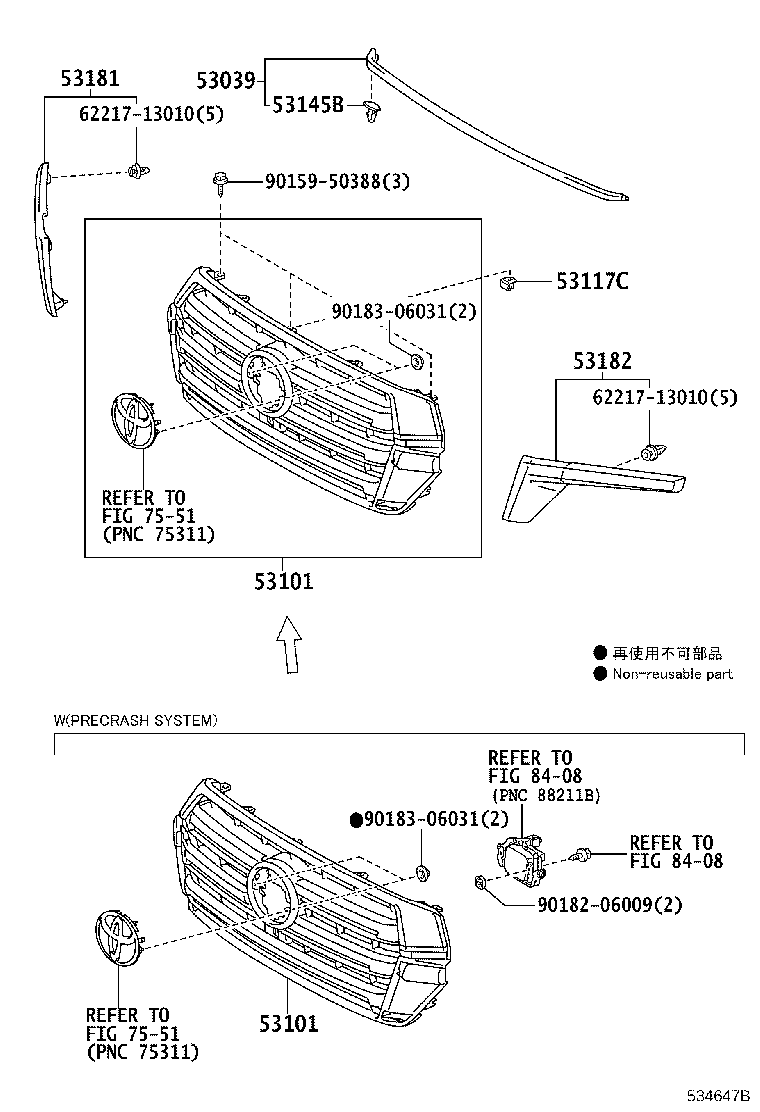

Radiator Grille
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53039 | Seal, Radiator, Upper |
| 53101 | Grille Sub-assy, Radiator |
| 53117C | Retainer, Radiator Grille, NO.1 |
| 53145B | Clip, Radiator Grille Garnish |
| 53181 | Cover, Headlamp, RH |
| 53182 | Cover, Headlamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
