Toyota Land Cruiser
2007-09 → present · chassis URJ200 · catalogue 791460 · United States
Supported model
Data version 2018-08

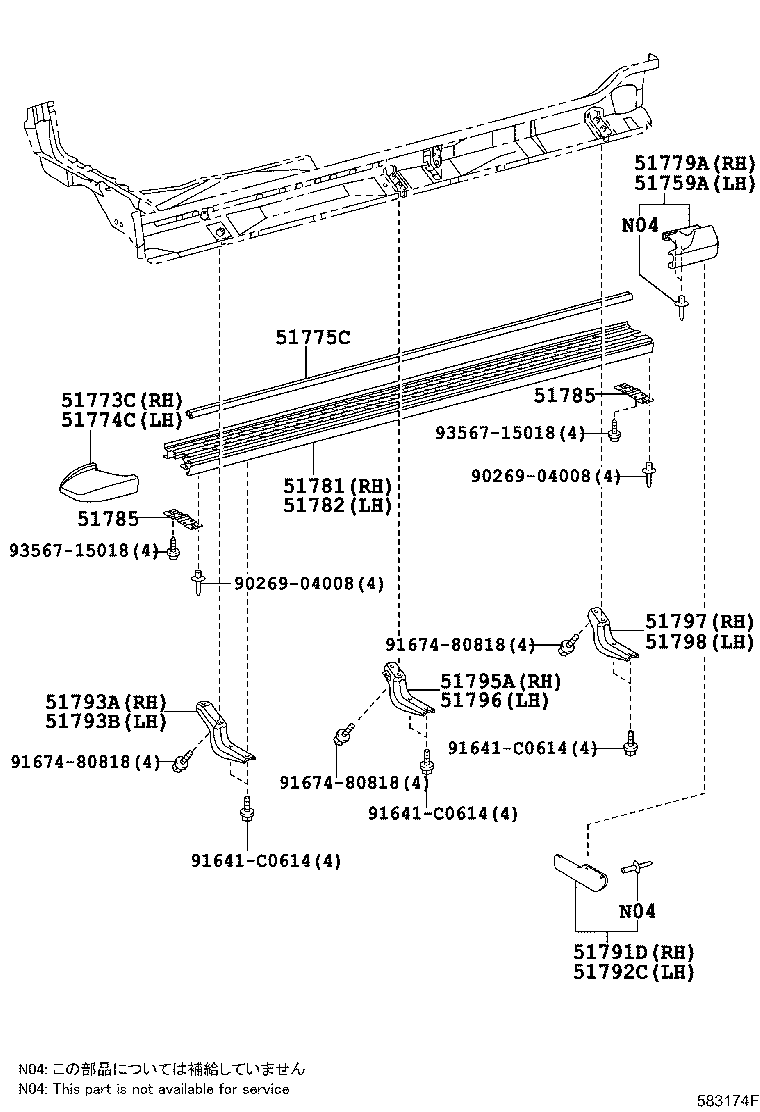

Front Floor Panel & Front Floor Member
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51759A | Cover, Side Door Step Plate, Rear LH |
| 51773C | Cover, Step Plate, RH |
| 51774C | Cover, Step Plate, LH |
| 51775C | Moulding, Side Door Step Plate, NO.1 |
| 51779A | Cover, Side Door Step Plate, Rear RH |
| 51781 | Panel, Step, RH |
| 51782 | Panel, Step, LH |
| 51785 | Gusset, Step Bracket, NO.2 |
| 51791D | Panel, Step, Rear RH |
| 51792C | Panel, Step, Rear LH |
| 51793A | Bracket, Side Step, NO.1 RH |
| 51793B | Bracket, Side Step, NO.1, LH |
| 51795A | Bracket, Side Step, NO.2 RH |
| 51796 | Bracket, Side Step, NO.2 LH |
| 51797 | Bracket, Side Step, NO.3 RH |
| 51798 | Bracket, Side Step, NO.3 LH |
| 57013B | Member Sub-assy, Floor, Front RH |
| 57014 | Member Sub-assy, Floor, Front LH |
| 57051 | Member Sub-assy, Front Floor Cross, RH |
| 57052 | Member Sub-assy, Front Floor Cross, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57403B | Reinforce Sub-assy, Floor Side, Inner RH |
| 57404A | Reinforce Sub-assy, Floor Side, Inner LH |
| 57457B | Bracket, Front Seat, Front |
| 57461B | Member Sub-assy, Center Floor Cross, NO.1 |
| 57509 | Reinforcement Sub-assy, Front Floor, Center |
| 57515A | Reinforcement, Front Floor, Center |
| 57516A | Retainer, Front Floor Reinforcement, Front |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58111 | Pan, Front Floor |
| 58119 | Plate, Front Floor Side, Front |
| 58179B | Bracket, Accelerator Cable Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
