Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

23 part groups · 2 illustrations

Illustrations

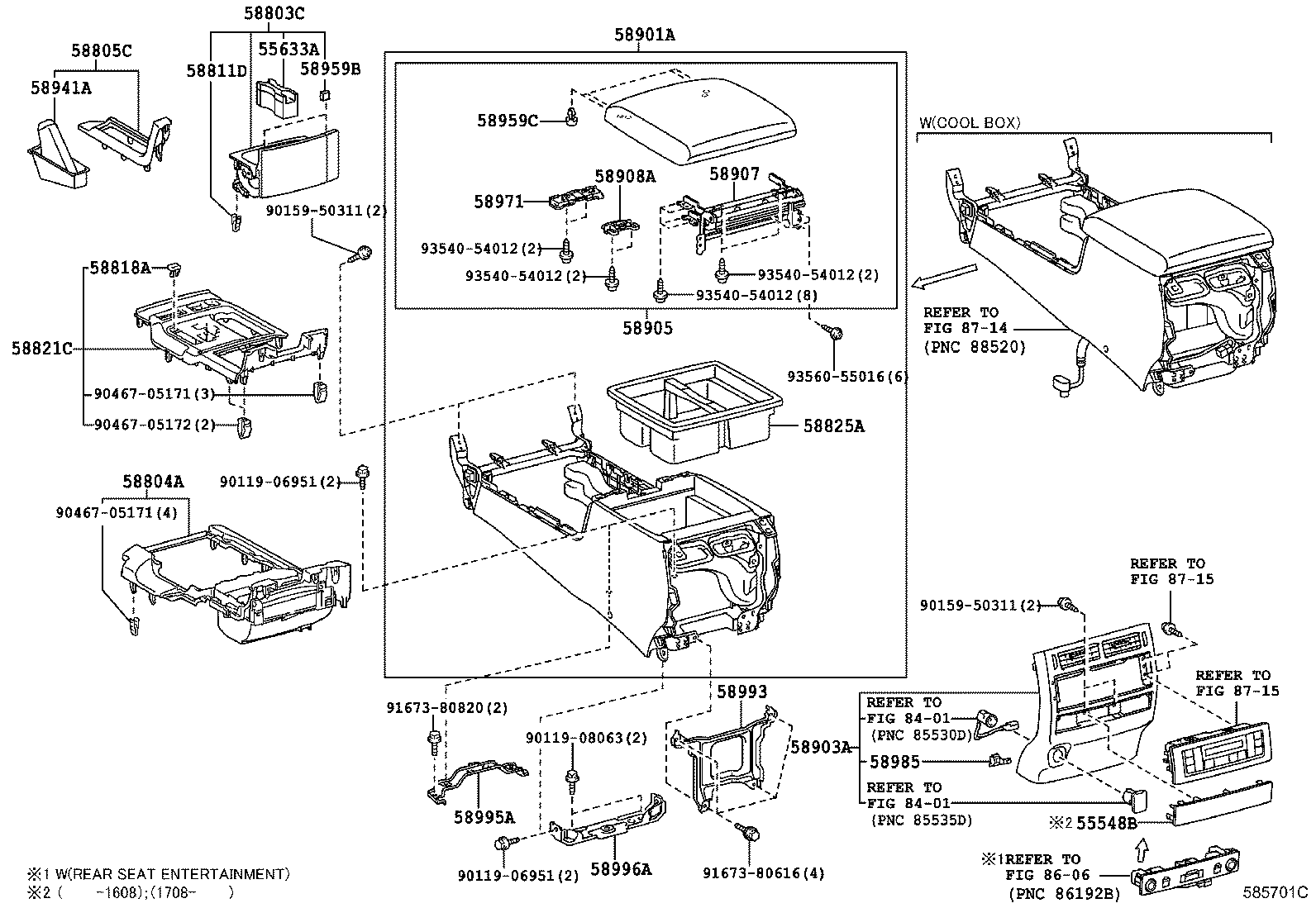

Figure 583158E 583158E 2007-09 → 2015-08 Figure 585701C 585701C 2015-08 → —

Part groups

PNCDescription
55548B Cover, Instrument Panel Hole
55633A Support, Instrument Panel Cup Holder, NO.1
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58811D Clip(FOR CONSOLE BOX)
58818A Cover, Console Box, FR
58821C Panel, Console, Upper
58825A Pocket, Console Box
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58941A Cover, Parking Brake Hole
58959B Cushion, Console Compartment Door
58959C Cushion, Console Compartment Door
58971 Lock, Console Compartment Door
58985 Retainer, Console Box
58993 Bracket, Console Box Mounting, Rear
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
