Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

28 part groups · 3 illustrations

Illustrations

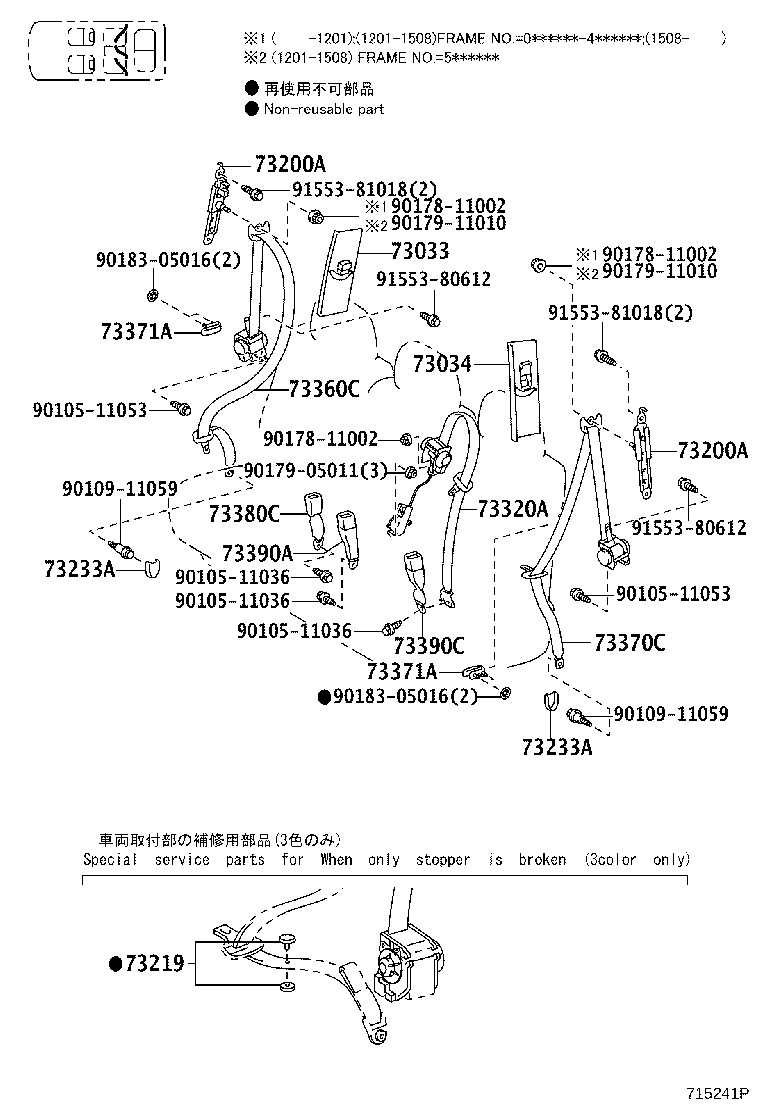

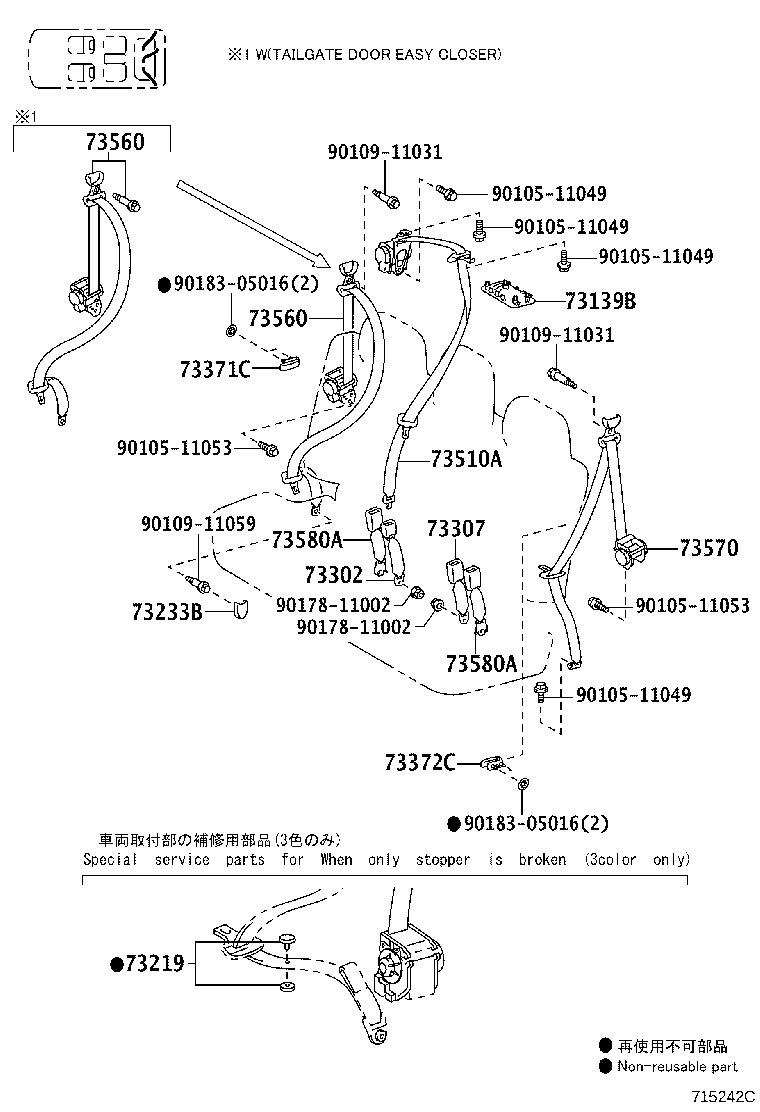

Figure 71E631 71E631 2007-09 → — Figure 715241P 715241P 2007-09 → — Figure 715242C 715242C 2007-09 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73033 Plate Sub-assy, Rear Shoulder Belt Anchor, RH
73034 Plate Sub-assy, Rear Shoulder Belt Anchor, LH
73139B Cover, Seat Belt Anchor
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73233B Cover, Lap Belt Outer Anchor, Rear NO.2 Seat
73240 Belt Assy, Front Seat Inner, LH
73302 Belt Sub-assy, Rear Seat Outer
73307 Belt Sub-assy, Rear Seat, Inner
73320A Belt Assy, NO.1 Seat 3 Point Type, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73371C Hanger, Rear NO.2 Seat Shoulder Belt, RH
73372C Hanger, Rear NO.2 Seat Shoulder Belt, LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390A Belt Assy, Rear Seat, Inner
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73510A Belt Assy, Rear NO.2 Seat, 3 Point Type
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
