Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

27 part groups · 4 illustrations

Illustrations

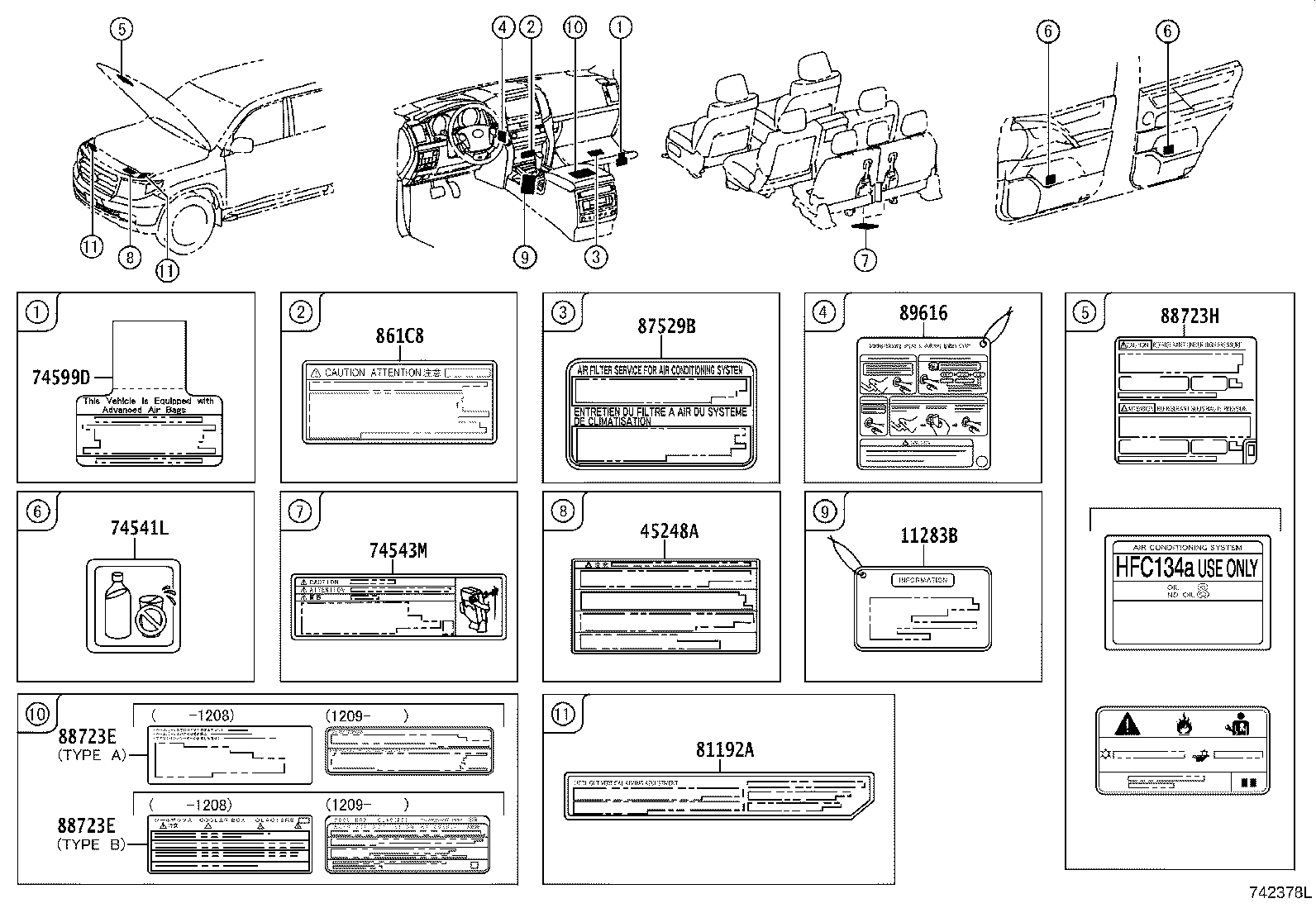

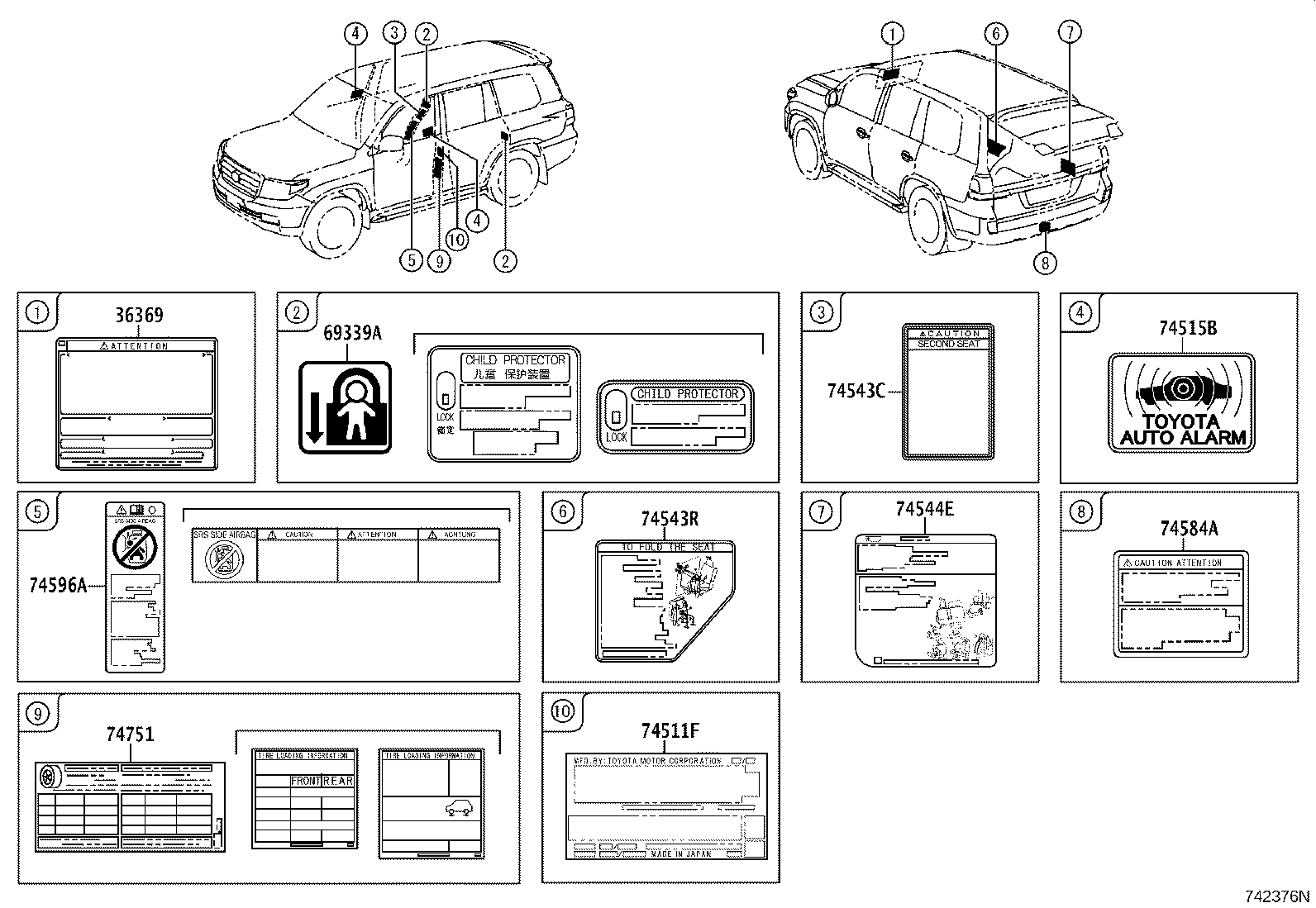

Figure 745373 745373 2007-09 → — Figure 742376N 742376N 2007-09 → — Figure 744535 744535 2007-09 → — Figure 742378L 742378L 2007-09 → —

Part groups

PNCDescription
11283B Label, Leak Detection Pump Information
11291B Plate, Engine Name
11298B Label, Emission Control Information
17792C Label, Engine Vacuum Hose Information
36369 Label, Transfer Information
45248A Label, Steering Actuator Caution
69339A Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74528B Label, Back Door Caution
74529A Plate, Back Door Caution
74529C Plate, Back Door Caution
74541L Label, Bottle Holder Information
74543C Label, Rear Seat Information
74543M Label, Rear Seat Caution, NO.2
74543R Label, Rear Seat Caution
74544E Label, Rear NO.2 Seat Information
74584A Label, Towing Caution
74596A Label, Side Airbag Caution
74599D Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
81192A Seal, Headlamp
861C8 Label, Mobile Wireless Charger Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
