Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

6 part groups · 3 illustrations

Illustrations

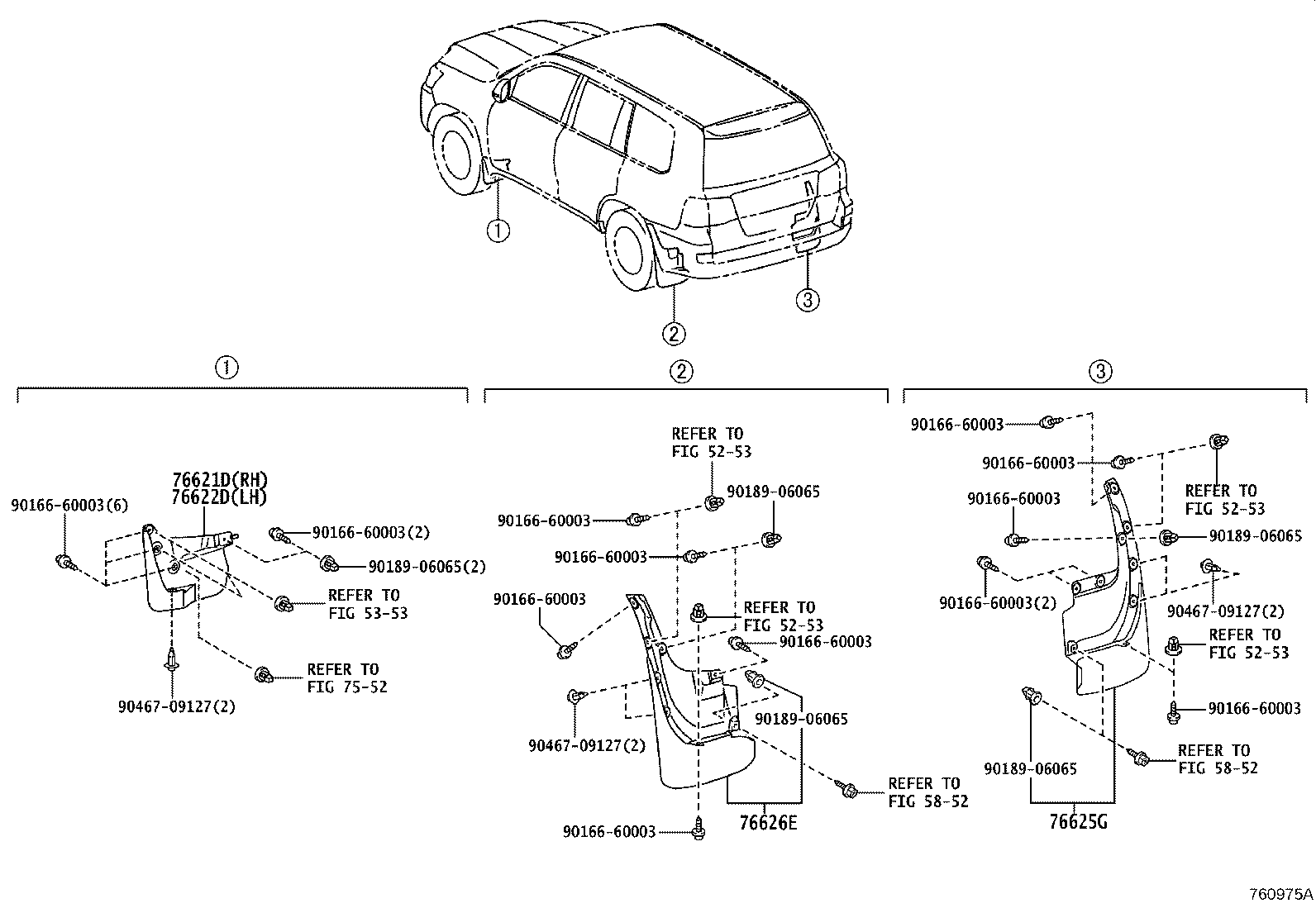

Figure 760629A 760629A 2007-09 → 2015-08 Figure 760975A 760975A 2015-08 → — Figure 760972 760972 2007-09 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76621D Mudguard, Front Fender, RH
76622D Mudguard, Front Fender, LH
76625G Mudguard, Quarter Panel, Rear RH
76626E Mudguard, Quarter Panel, Rear LH
76889D Clip, Rear Spoiler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
