Toyota Land Cruiser
2007-09 → present · chassis URJ200 · catalogue 791460 · United States
Supported model
Data version 2018-08

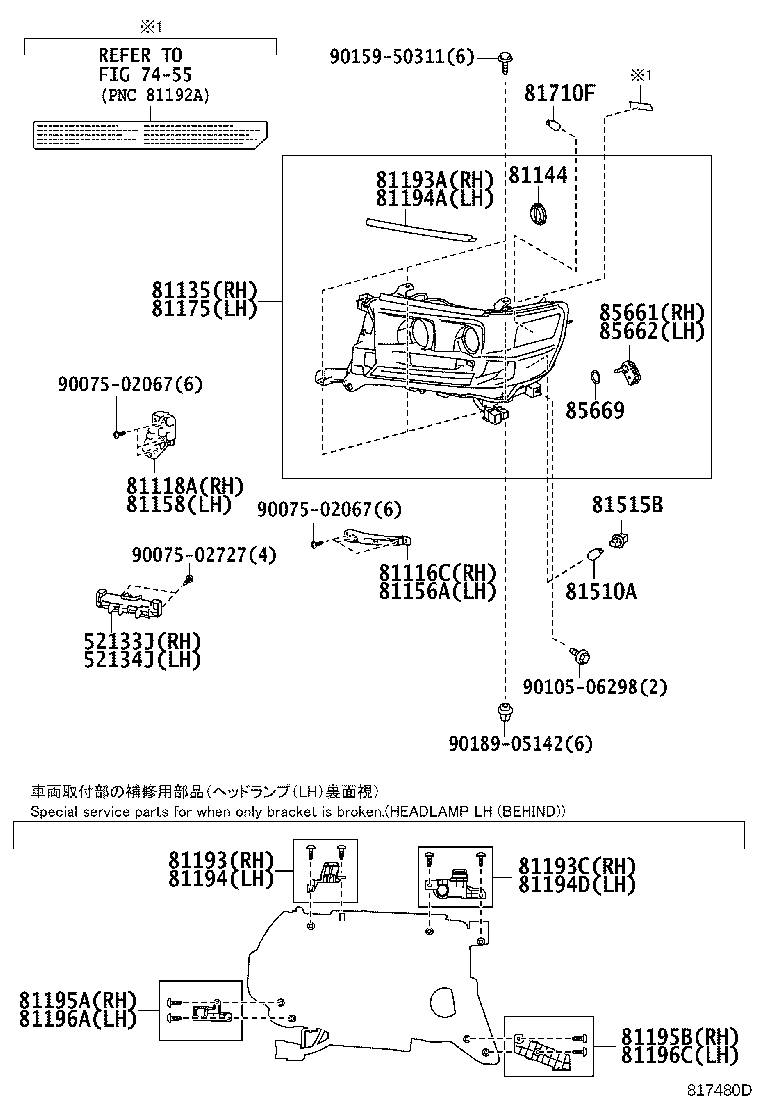

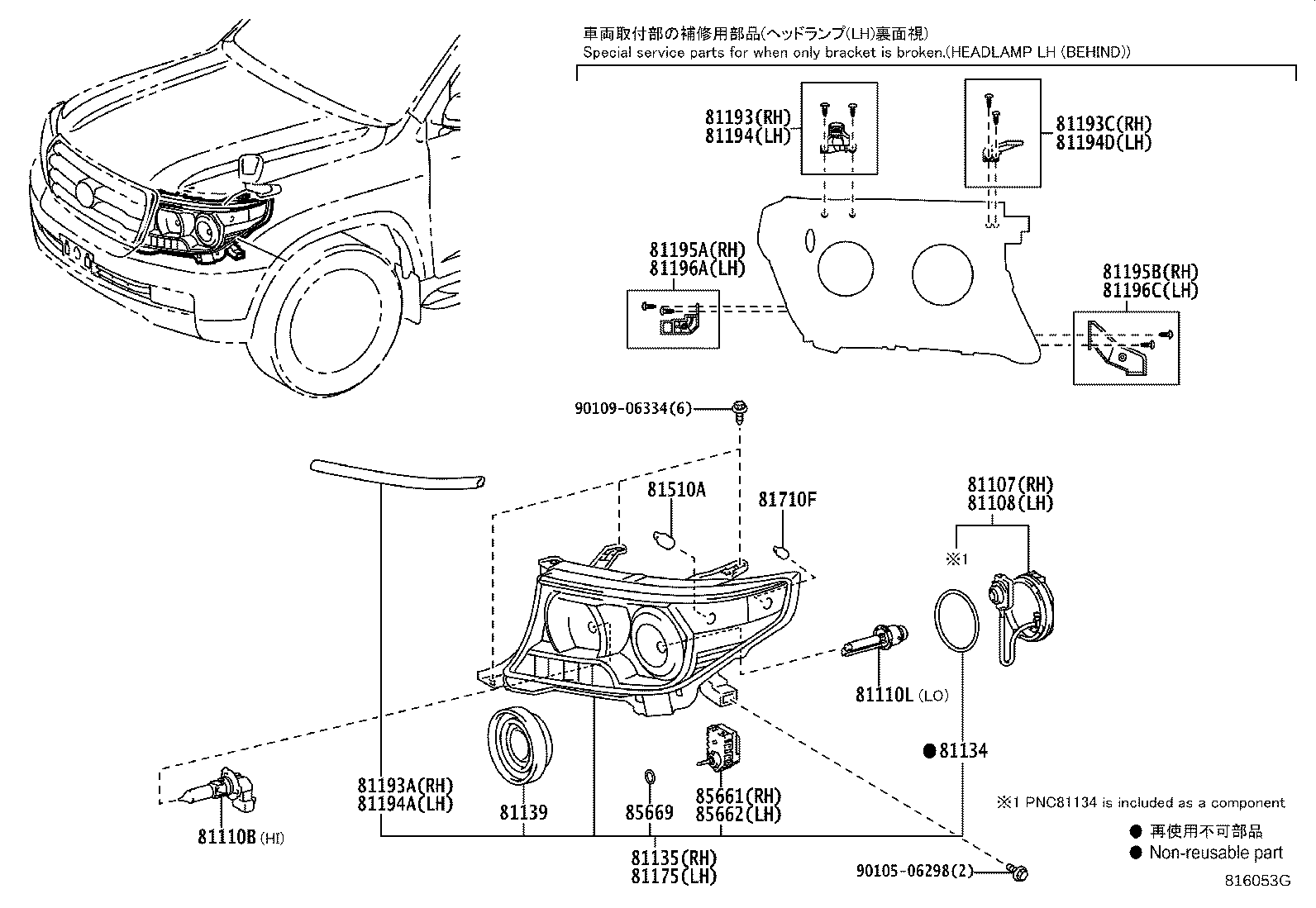

Headlamp
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52133J | Reinforcement, Front Bumper Bar, RH |
| 52134J | Reinforcement, Front Bumper Bar, LH |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81116C | Bracket, Headlamp, RH |
| 81118A | Bracket, Headlamp, RH |
| 81125 | Cord, Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81144 | Cover, Headlamp, NO.1 |
| 81156A | Bracket, Headlamp, LH |
| 81158 | Bracket, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193A | Protector, Headlamp, RH |
| 81193C | Retainer, RH Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194A | Protector, Headlamp, LH |
| 81194D | Retainer, LH Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81195B | Retainer, RH Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81196C | Retainer, LH Headlamp Protector, Lower LH |
| 81510A | Bulb, Front Turn Signal & Parking Lamp |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81710F | Bulb, Front Side Maker Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
