Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

104 part groups · 16 illustrations

Illustrations

825714D 2007-09 → 2013-01

828916A 2013-01 → 2015-08

82A314D 2015-08 → —

828157C 2007-09 → —

825705C 2007-09 → 2012-01

828130 2012-01 → 2015-08

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82001C	Cable, Bond, NO.2

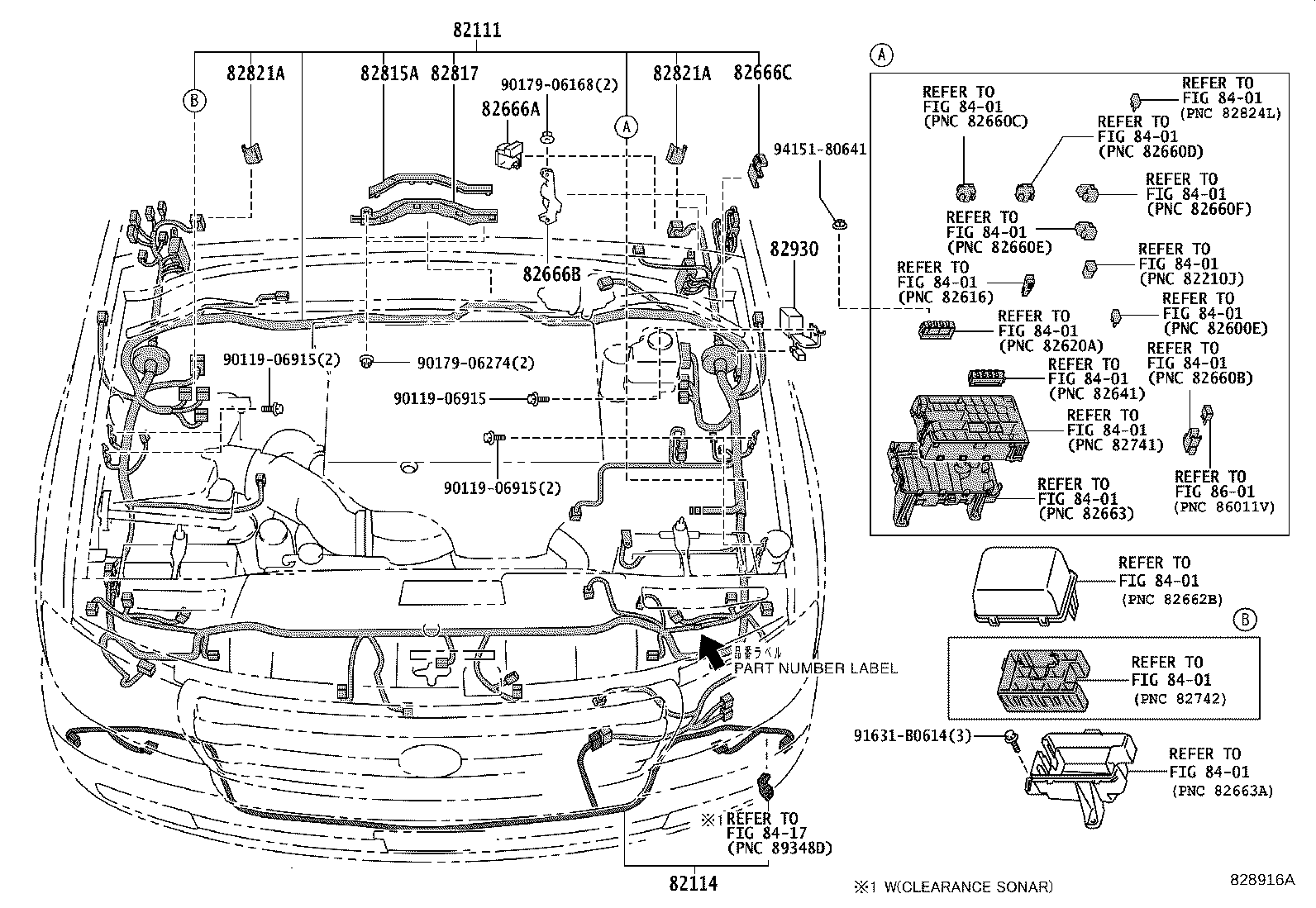

82111	Wire, Engine Room Main
82111B	Condenser
82114	Wire, Engine Room, NO.4

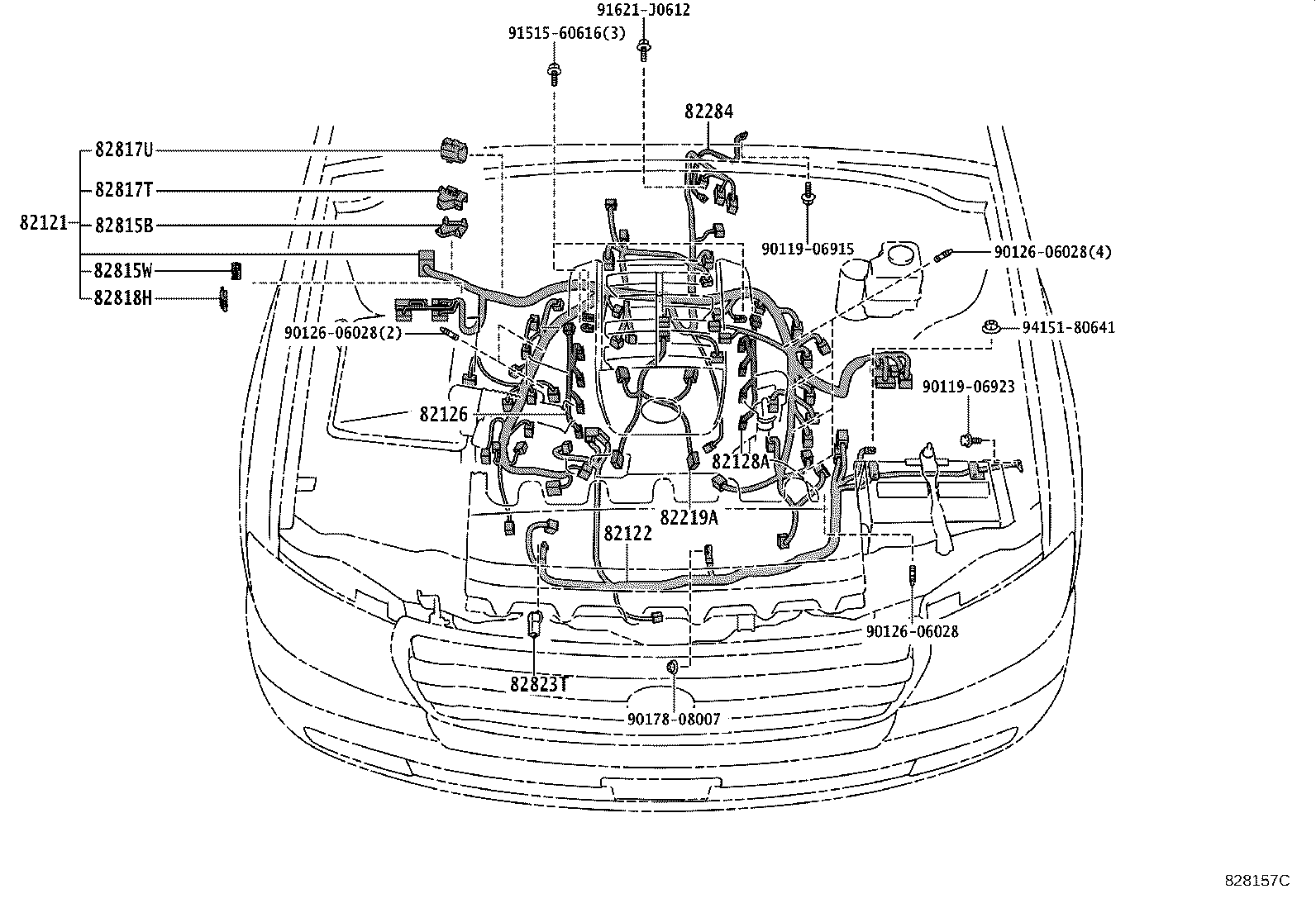

82121	Wire, Engine
82122	Wire, Engine, NO.2
82126	Wire, Engine
82128A	Wire, Engine, NO.8
82132	Wire, Cowl, NO.2
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82142A	Wire, Instrument Panel, NO.2
82143	Wire, Instrument Panel, NO.3
82149A	Wire, Instrument Panel, NO.5
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2

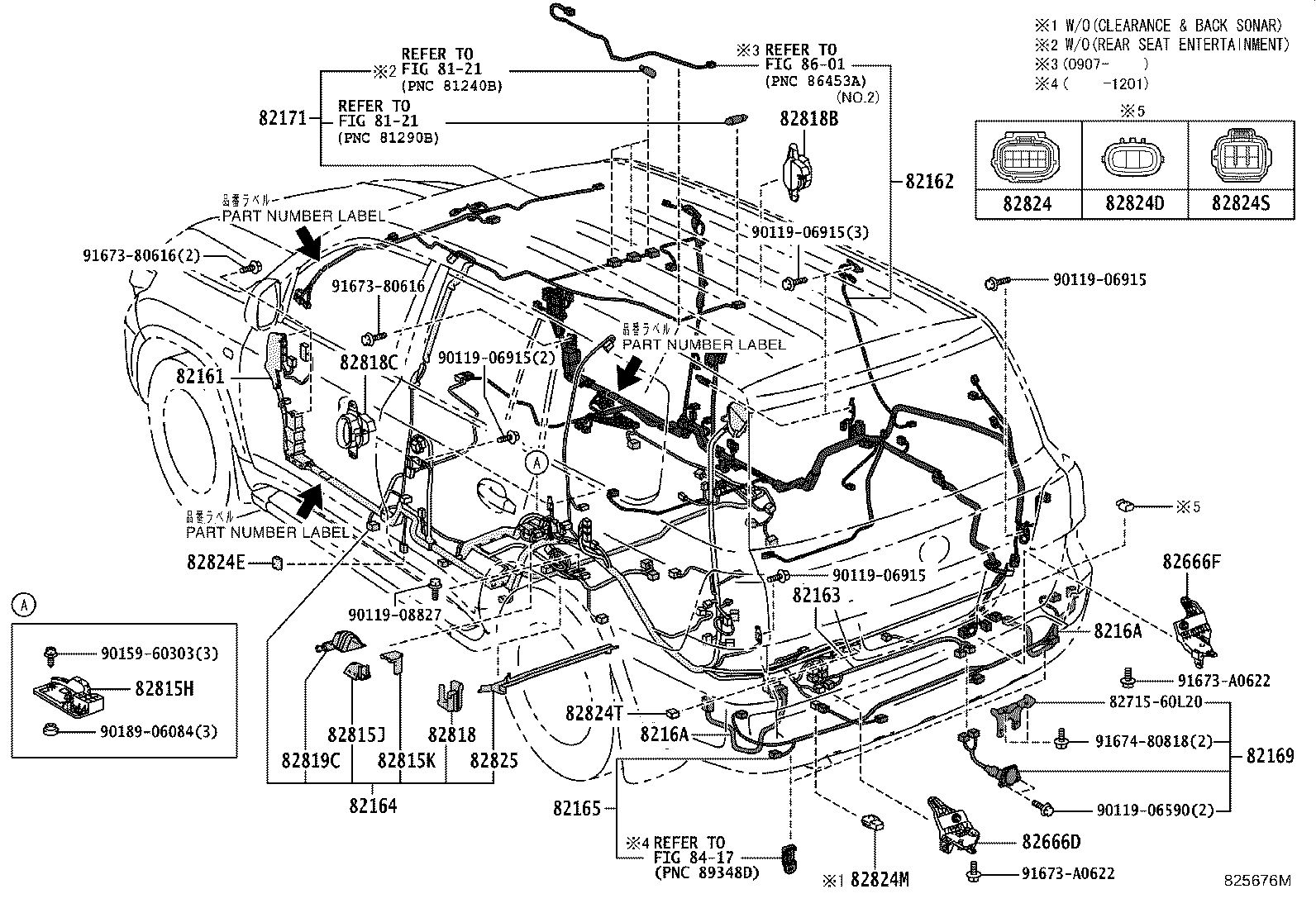

82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82164	Wire, Frame
82165	Wire, Frame, NO.2
82166	Wire, Console Box
82169	Wire Frame, NO.3
8216A	Wire, Floor NO.7
82171	Wire, Roof, NO.1
82176	Wire, Rear Console Box
82185	Wire, Back Door, NO.2
82189	Wire, Back Door, NO.4

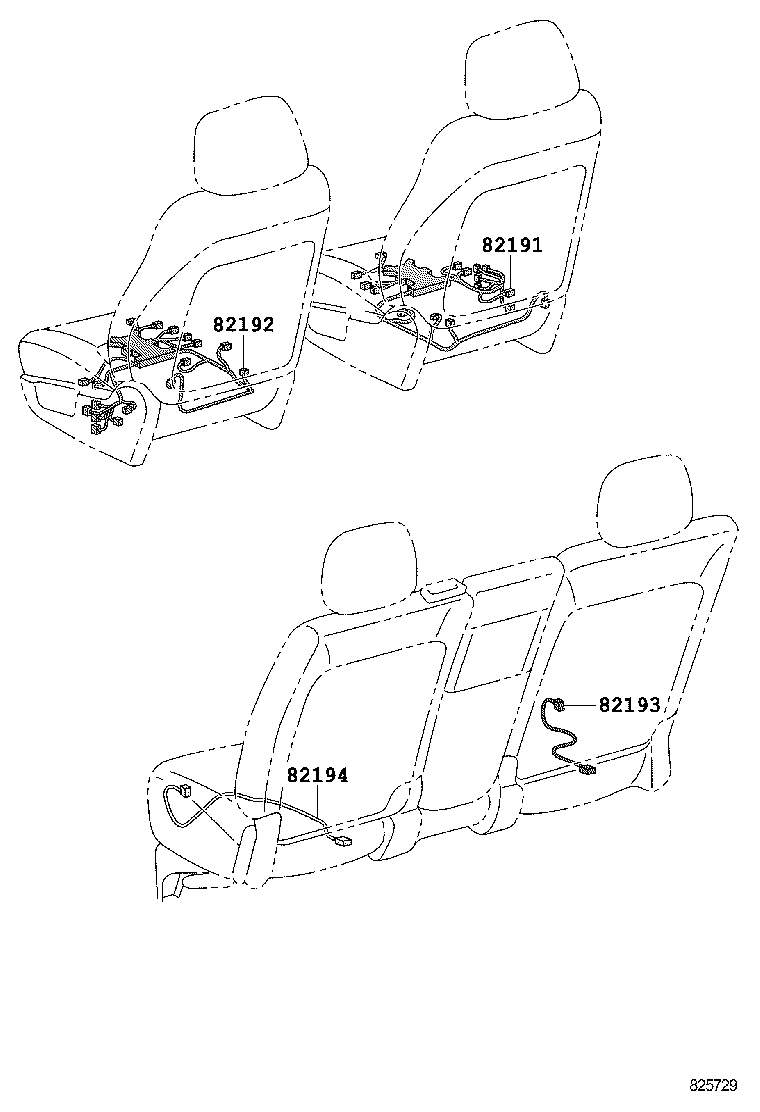

82191	Wire, Front Seat, RH
82192	Wire, Front Seat, LH
82193	Wire, Rear Seat, RH
82194	Wire, Rear Seat, LH
82219A	Wire, Sensor
82223	Wire, Switch
82284	Wire, Earth
82345B	Diode
82505A	Wiring Sub-assy, Front Door
82507	Wiring Sub-assy, Rear Door, RH
82508	Wiring Sub-assy, Rear Door, LH
82664A	Block, Connector Holder
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666D	Holder, Connector NO.5
82666F	Holder, Connector NO.7
82666G	Holder, Connector NO.8
82668A	Cover, Connector Holder Block, Upper
82669A	Cover, Connector Holder Block, Lower
82671	Block, Junction
82671J	Block, Junction, NO.2
82671K	Block, Junction, NO.3
82671L	Block, Junction, NO.4
82815A	Cover, Wiring Harness Protector
82815B	Cover, Wiring Harness Protector
82815H	Cover, Wiring Harness Protector NO.6
82815J	Cover, Wiring Harness Protector, NO.7
82815K	Cover, Wiring Harness Protector, NO.8
82815L	Cover, Wiring Harness Protector, NO.9
82815M	Cover, Wiring Harness Protector, NO.10
82815N	Cover, Wiring Harness Protector, NO.11
82815Q	Cover, Wiring Harness Protector, NO.13
82815R	Cover, Wiring Harness Protector, NO.14
82815T	Cover, Wiring Harness Protector, NO.16
82815W	Cover, Wiring Harness Protector, NO.2
82815Y	Cover, Wiring Harness Protector, NO.4
82817	Protector, Wiring Harness, NO.1
82817B	Protector, Wiring Harness, NO.3
82817C	Protector, Wiring Harness, NO.4
82817D	Protector, Wiring Harness, NO.5
82817E	Protector, Wiring Harness, NO.6
82817F	Protector, Wiring Harness, NO.7
82817G	Protector, Wiring Harness, NO.8
82817J	Protector, Wiring Harness, NO.9
82817K	Protector, Wiring Harness, NO.10
82817L	Protector, Wiring Harness, NO.11
82817N	Protector, Wiring Harness, NO.13
82817P	Protector, Wiring Harness, NO.14
82817T	Protector, Wiring Harness, NO.15
82817U	Protector, Wiring Harness, NO.16
82818	Protector, Wiring Harness, NO.2
82818B	Protector, Wiring Harness, NO.3
82818C	Protector, Wiring Harness, NO.4
82818H	Protector, Wiring Harness, NO.9
82818J	Protector, Wiring Harness, NO.10
82818K	Protector, Wiring Harness, NO.11
82818L	Protector, Wiring Harness, NO.12
82819C	Grommet, Wiring Harness
82821A	Cover, Connector
82821E	Cover, Connector
82821H	Cover, Connector
82821W	Cover, Connector
82821X	Cover, Connector
82823T	Cap, Alternator Terminal
82824	Connector, Wiring Harness
82824D	Connector, Wiring Harness
82824E	Connector, Wiring Harness
82824M	Connector, Wiring Harness
82824S	Connector, Wiring Harness
82824T	Connector, Wiring Harness
82825	Protector, Wiring Harness
82930	Condenser Assy, Wiring Harness, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
