Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

7 part groups · 4 illustrations

Illustrations

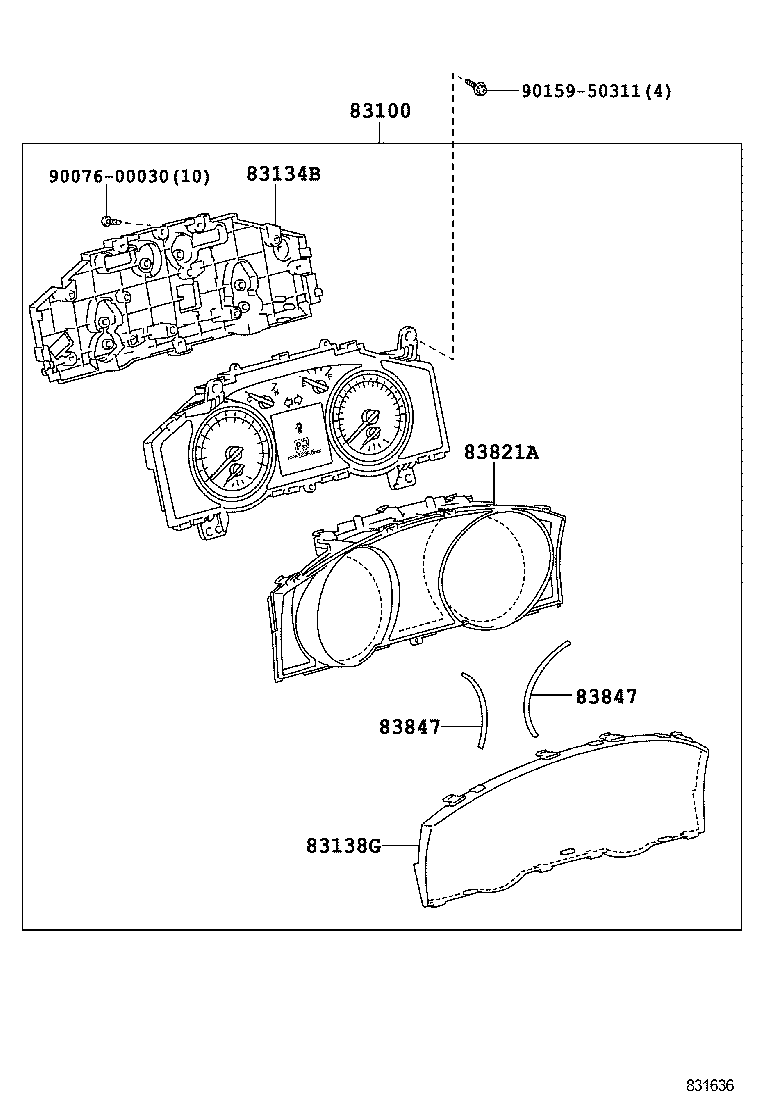

Figure 831371C 831371C 2007-09 → 2012-01 Figure 831636 831636 2012-01 → 2015-08 Figure 831367A 831367A 2007-09 → 2015-08 Figure 832096 832096 2015-08 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83134B Cover, Combination Meter, NO.2
83138G Glass, Combination Meter
83138H Glass, Combination Meter NO.2
83821A Cover, Combination Meter, NO.1
83847 Cushion, Combination Speedometer, NO.1
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
