Toyota Land Cruiser

2007-09 → present · chassis URJ200 · catalogue 791460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

5 part groups · 3 illustrations

Illustrations

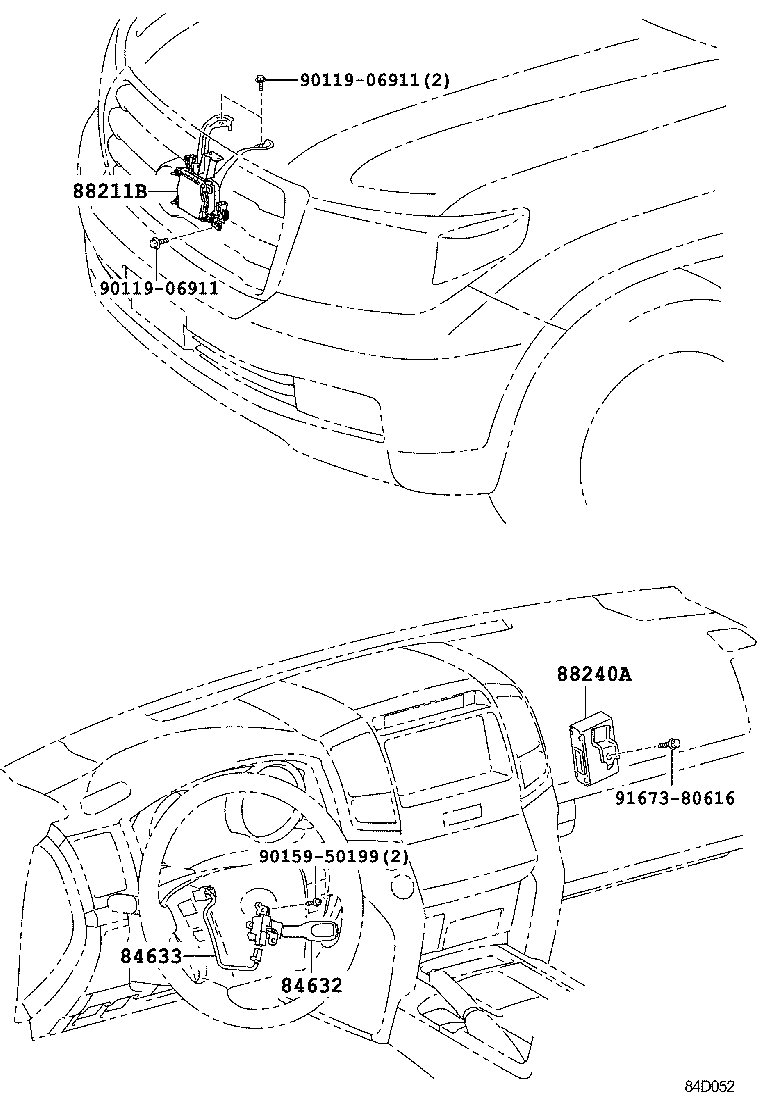

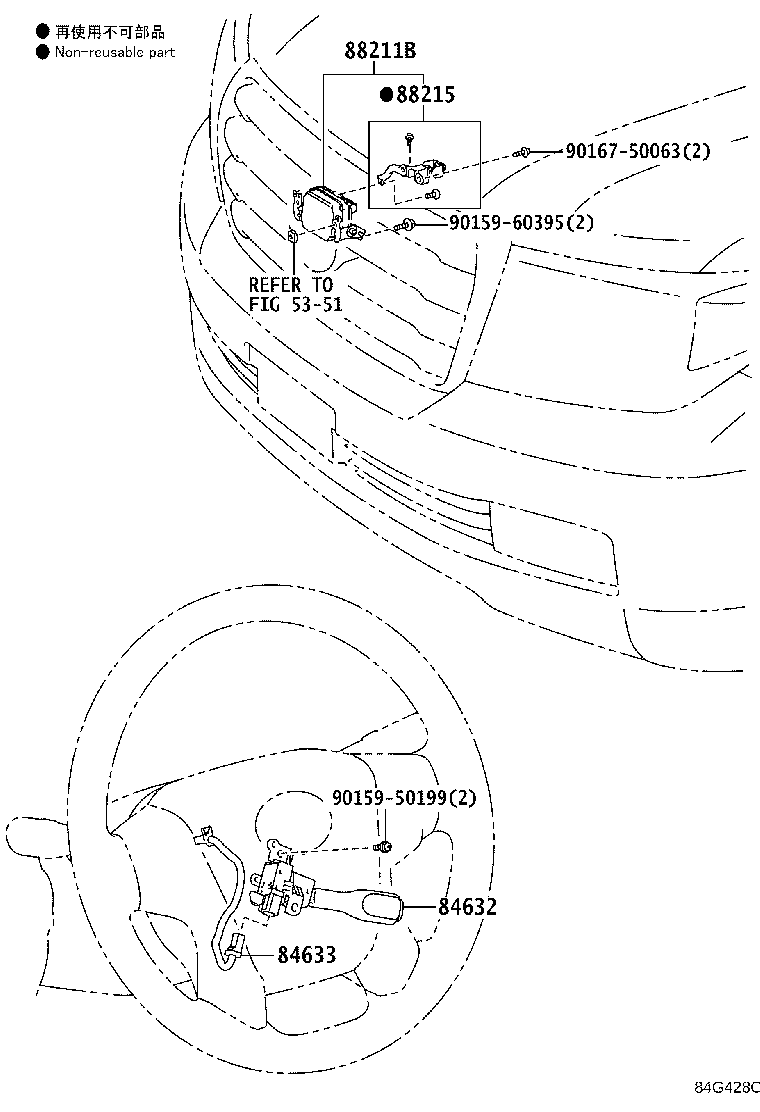

Figure 849191 849191 2007-09 → 2012-01 Figure 84D052 84D052 2012-01 → 2015-08 Figure 84G428C 84G428C 2015-08 → —

Part groups

PNCDescription
84632 Switch, Cruise Control Main
84633 Wire, Cruise Control Switch
88211B Sensor Assy, Millimeter Wave Radar
88215 Bracket, Millimeter Wave Radar Sensor, NO.1
88240A Computer Assy, Distance Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
