Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 4 illustrations

Illustrations

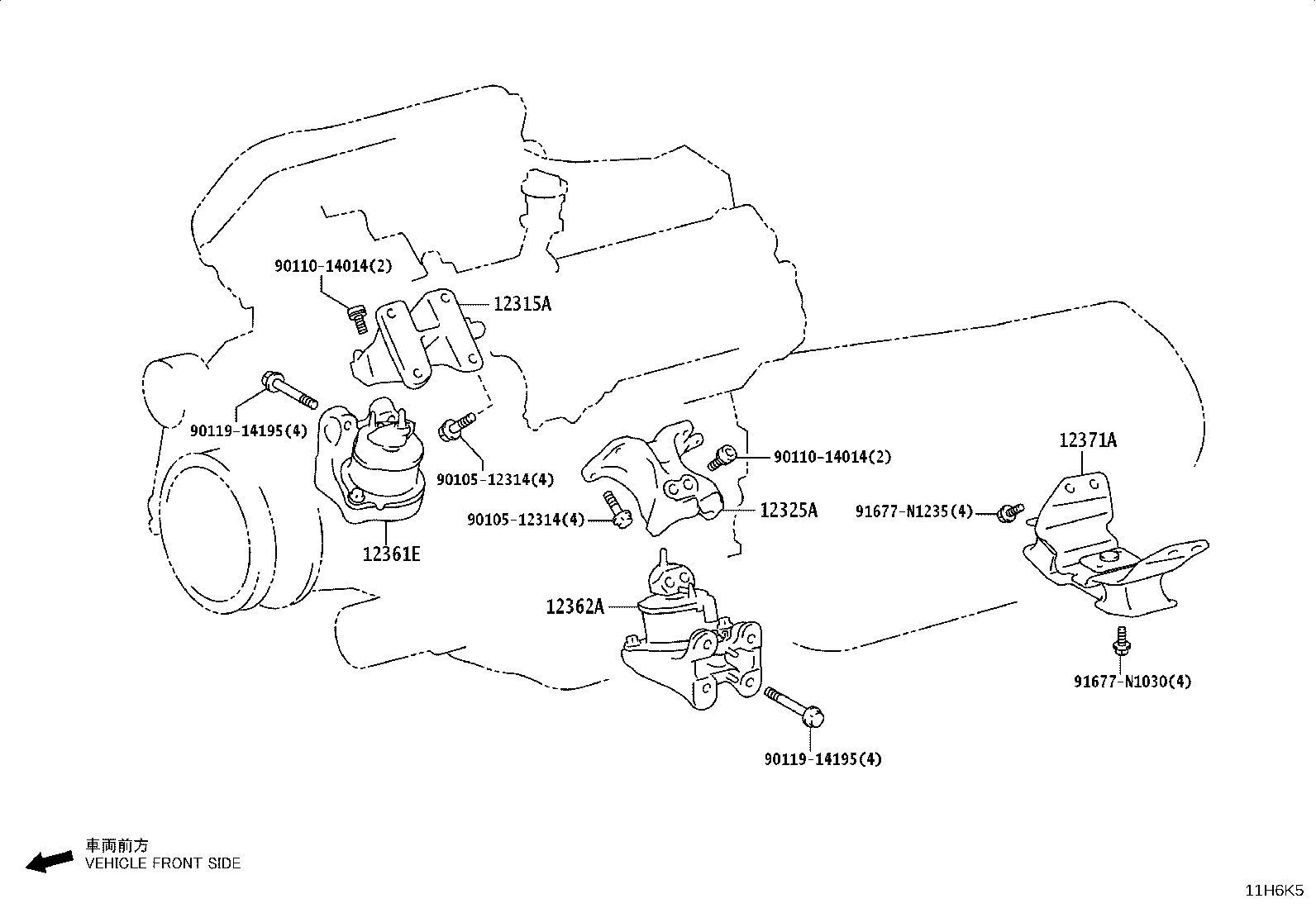

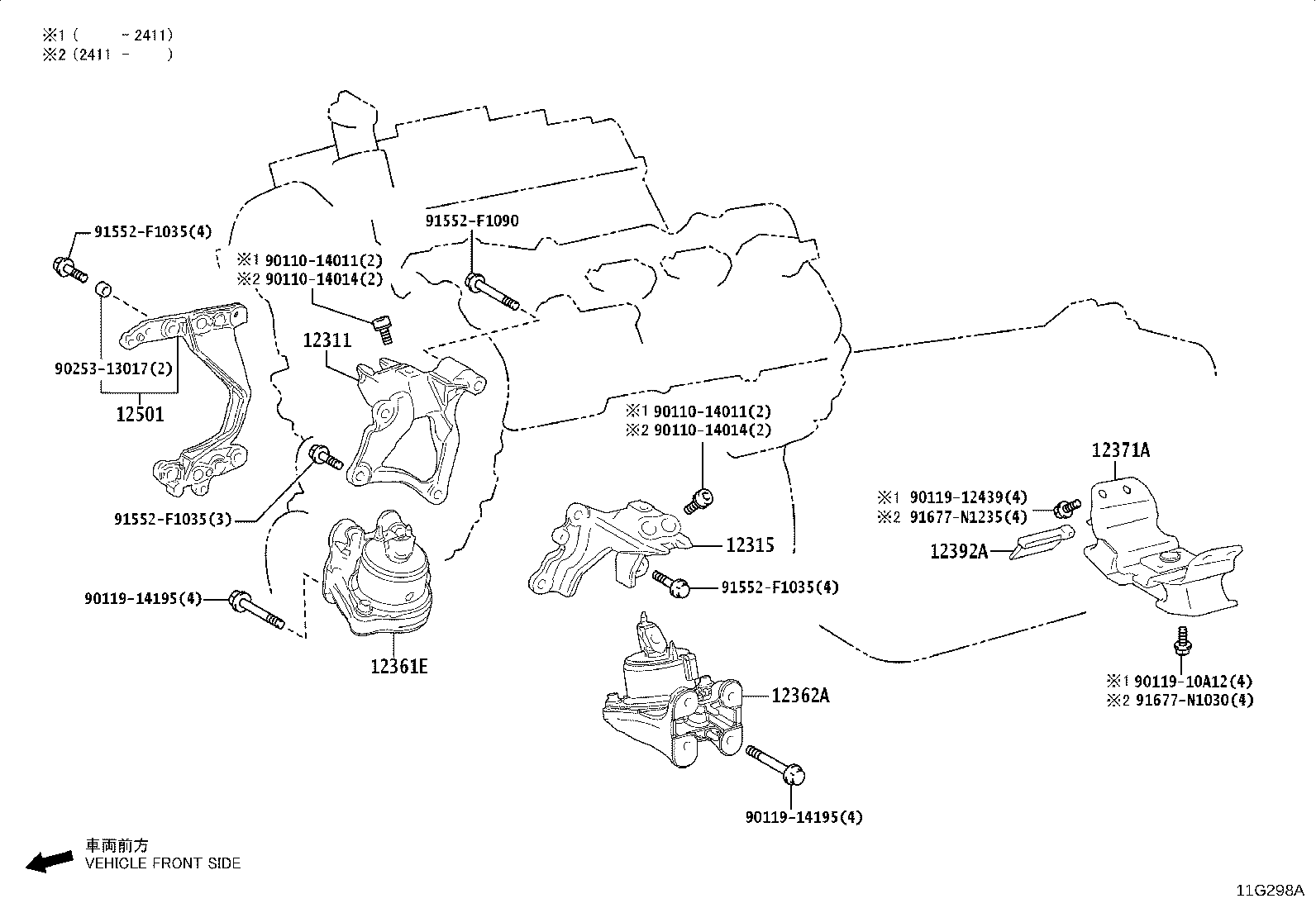

Figure 11G202 11G202 2021-12 → 2024-11 Figure 11H6K5 11H6K5 2024-11 → — Figure 11G298A 11G298A 2021-12 → — Figure 11G298A 11G298A 2024-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12361E Insulator, Engine Mounting, Front RH
12362A Insulator, Engine Mounting, Front LH
12371A Insulator, Engine Mounting, Rear
12392A Insulator, Engine Mounting Heat, Rear
12501 Bracket Sub-assy, Alternator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
