Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · United States
Supported model
Data version 2024-11

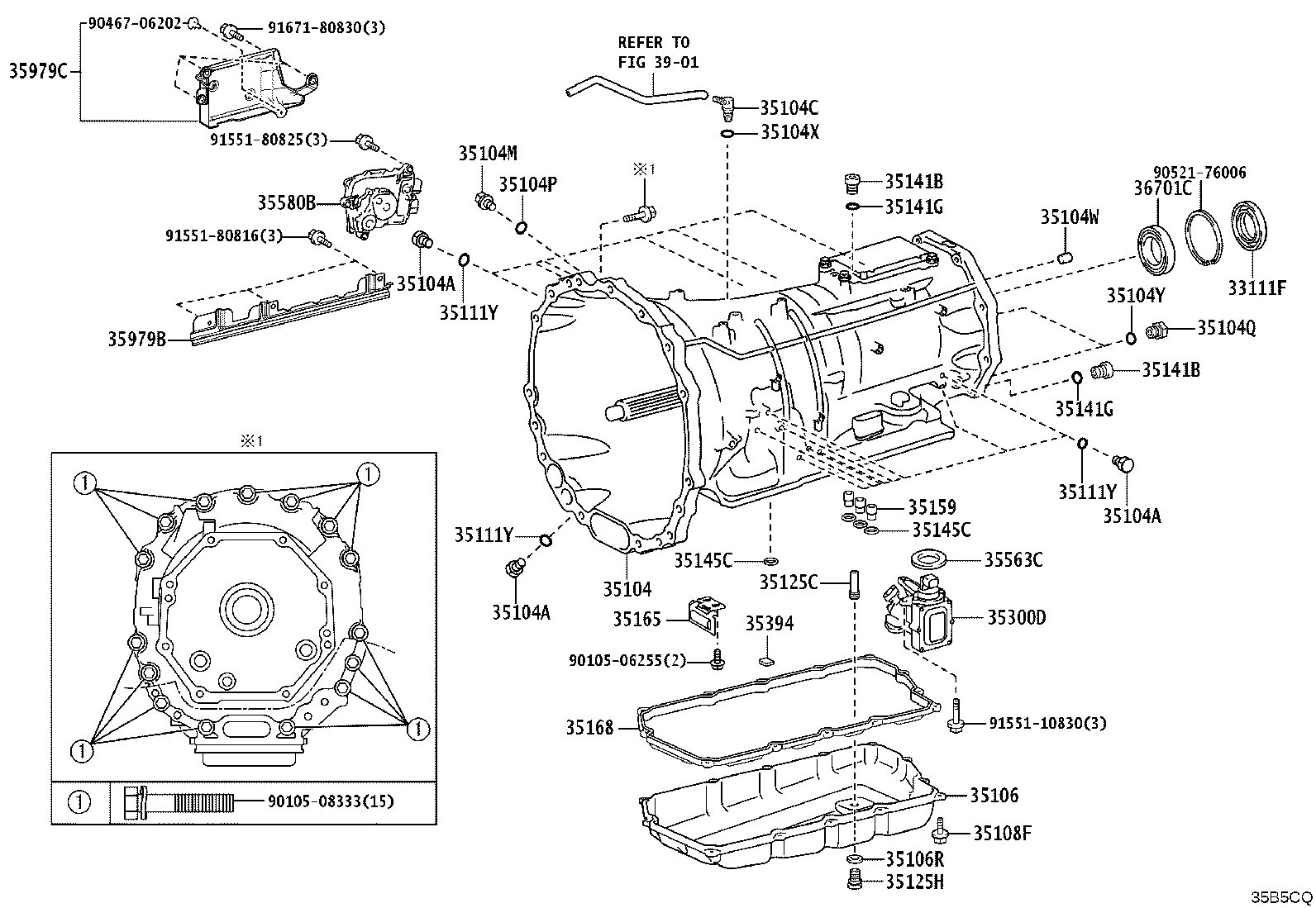

Transmission Case & Oil Pan (ATM)
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33111F | Seal, Oil(FOR TRANSMISSION CASE) |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104A | Plug, Automatic Transmission Case |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104C | Plug, Breather, NO.2 (ATM) |
| 35104M | Plug, Refill(ATM) |
| 35104P | Gasket, Refill Plug(ATM) |
| 35104Q | Plug, NO.1 (FOR TRANSAXLE CASE) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35104W | Pin, Straight (FOR TRANSAXLE CASE) |
| 35104X | Ring, O (FOR BREATHER PLUG) |
| 35104Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106R | Gasket (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35108F | Bolt, W/Washer |
| 35111Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35125C | Tube, Transmission Oil Filler, NO.1 |
| 35125H | Plug, Overflow(ATM) |
| 35141B | Plug (FOR AUTOMATIC TRANSMISSION CASE) |
| 35141G | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35145C | Gasket, Transaxle Case |
| 35159 | Gasket, Brake Drum |
| 35165 | Plate, Transmission Case, NO.1 |
| 35168 | Gasket, Automatic Transmission Oil Pan |
| 35173 | Cap, Transaxle Case NO.1 |
| 35300D | Pump Assy, Oil W/Motor |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35563C | Seal, Oil Pump |
| 35580B | Actuator Assy, Shift Control |
| 35979B | Insulator, Transmission, RH |
| 35979C | Insulator, Transmission |
| 36701C | Bearing, Ball |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
